Crestron PW-1225DU 12 VDC 2.5 A Desktop Power Pack

Crestron part number PW-1225DU

The Crestron PW-1225DU is a universal, regulated desktop power pack with a 12 VDC, 2.5 A output. Crestron intends it for the 1 Beyond IV-CAM-P20, IV-CAM-P12, IV-CAM-I20 and IV-CAM-I12-B cameras.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

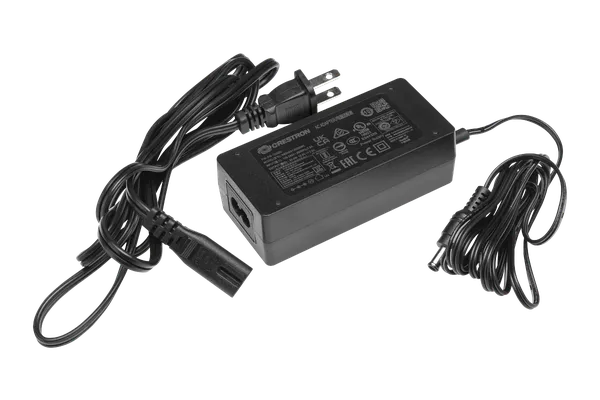

Crestron PW-1225DU Desktop Power Pack, 12VDC, 2.5 A, 3.3 mm, Universal

About the Crestron PW-1225DU

The PW-1225DU is a black plastic desktop power pack weighing 0.24 kg. Mains power enters through a C8 2-pin inlet, and the unit accepts 100 to 240 VAC at 50/60 Hz with a maximum draw of 0.6 A. The regulated 12 VDC, 2.5 A output runs along a 1.83 m (6 ft) attached cable to a 3.3 x 5.5 mm DC barrel connector.

Crestron intends it for four 1 Beyond cameras: the IV-CAM-P20, IV-CAM-P12, IV-CAM-I20 and IV-CAM-I12-B. It is the part to order if one of those cameras needs a replacement power pack, but check the connector first, as this model uses a 3.3 x 5.5 mm barrel. It is rated for -5 to 40°C and is CE marked.

Key features

12 VDC, 2.5 A regulated output
100 to 240 VAC, 50/60 Hz input
3.3 x 5.5 mm DC barrel connector on a 1.83 m cable
C8 2-pin mains inlet
For 1 Beyond IV-CAM-P20, IV-CAM-P12, IV-CAM-I20 and IV-CAM-I12-B cameras
Black plastic desktop design, 0.24 kg
CE marked

PW-1225DU specifications

Output	12 VDC, 2.5 A, regulated
Input	100 to 240 VAC, 50/60 Hz, 0.6 A maximum
Mains connection	C8 2-pin inlet
DC connection	1.83 m (6 ft) attached cable with 3.3 x 5.5 mm DC barrel connector
Intended for	1 Beyond IV-CAM-P20, IV-CAM-P12, IV-CAM-I20, IV-CAM-I12-B cameras
Construction	Black plastic, desktop
Weight	0.24 kg (0.54 lb)
Environment	-5 to 40°C, 5% to 90% RH non-condensing
Compliance	CE

Part numbers on this page

Part number	Version	Price	Add
PW-1225DU	Universal	On request

Where the PW-1225DU is used

Replacement power for 1 Beyond IV-CAM cameras
Spare power pack for IV-CAM-P20 or IV-CAM-P12 cameras
Spare power pack for IV-CAM-I20 or IV-CAM-I12-B cameras

Works with the PW-1225DU

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PW-1225DU

What is the Crestron PW-1225DU?

It is a universal, regulated desktop power pack with a 12 VDC, 2.5 A output. Crestron intends it for the 1 Beyond IV-CAM-P20, IV-CAM-P12, IV-CAM-I20 and IV-CAM-I12-B cameras, and it connects through a 3.3 x 5.5 mm DC barrel connector.

Which cameras does the PW-1225DU power?

Crestron lists it for use with the 1 Beyond IV-CAM-P20, IV-CAM-P12, IV-CAM-I20 and IV-CAM-I12-B cameras. If you are replacing the power pack for one of these cameras, match the 12 VDC, 2.5 A rating and the 3.3 x 5.5 mm connector.

What connector does the PW-1225DU use?

The DC output runs along a 1.83 m (6 ft) attached cable ending in a 3.3 x 5.5 mm DC power barrel connector. On the mains side, the power pack has a C8 2-pin input.

What mains supply does it need?

It accepts 100 to 240 VAC at 50/60 Hz, with a maximum input current of 0.6 A. The mains connection is a C8 2-pin inlet, and the unit is rated for -5 to 40°C and 5% to 90% humidity, non-condensing.

Is the PW-1225DU a wall plug or a desktop unit?

It is a desktop power pack in black plastic, weighing 0.24 kg (0.54 lb). Mains power connects to its C8 inlet, and the 12 VDC output reaches the camera through the attached 1.83 m cable.

How much is the Crestron PW-1225DU?

Crestron asks its dealers to give the price of the PW-1225DU directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PW-1225DU?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PW-1225DU on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PW-1225DU come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PW-1225DU develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PW-1225DU in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PW-1225DU without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
