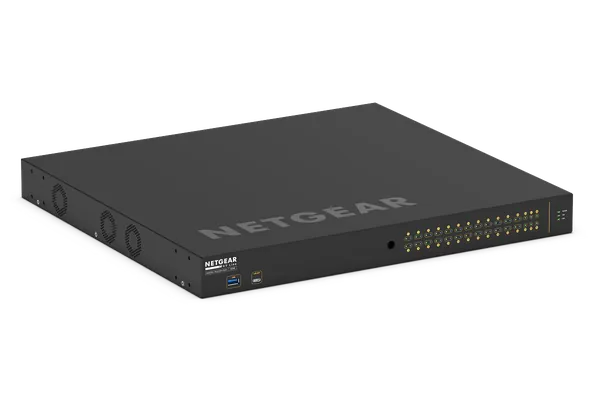

Crestron part number CEN-SWPOE-30
The Crestron CEN-SWPOE-30 is a 30 port NETGEAR AV managed switch with 26 Gigabit Ethernet ports, 24 of them PoE+, and four 10 Gigabit SFP+ ports. Designed for Crestron AV-over-IP, it has selectable DM NVX and DM NAX profiles and fits a 1U 19-inch rack.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron CEN-SWPOE-30
The 24 PoE+ ports (IEEE 802.3at Type 2) supply up to 30 W each, with 480 W available in total, and two more Gigabit ports are without PoE. Four 10 Gigabit Base-X SFP+ ports take transceiver modules for connection to a fibre network. The switch fabric is 132 Gbps non-blocking, with up to 16K MAC addresses.
Its Lite Layer 3 package provides IGMPv3 and MLDv2 snooping with IGMP querier and automated IGMP between switches, IEEE 1588 PTPv2, VLANs, QoS and ACLs, static and dynamic routing (RIP, PIM-SM, PIM-DM), and DOT1X, MAB, DHCP snooping and dynamic ARP inspection. It is managed through a web GUI, CLI, SSH or SNMP, with an out-of-band port, RJ-45 console and LLDP support.
The fan-cooled black metal chassis is 43.2 mm high, 440 mm wide and 400 mm deep and mounts in a 1U 19-inch rack space with reversible rack ears, or stands freely. Consumption is 614 W at maximum PoE, 46.8 W without PoE and 33.90 W in standby. For PoE++ at up to 90 W per port in the same size, see the CEN-SWPOE-30-ULTRA.
Key features
- 30 port NETGEAR AV managed switch, 1U rack mount
- 26 Gigabit Ethernet ports, 24 with PoE+ (802.3at Type 2)
- Up to 30 W per port, 480 W total
- Four 10 Gigabit SFP+ ports for fibre
- Selectable DM NVX and DM NAX AV-over-IP profiles
- Layer 2 and Layer 3 managed switching with LLDP
- 132 Gbps non-blocking switch fabric
CEN-SWPOE-30 specifications
| Ports | 2 x 10/100/1000Base-T; 24 x 10/100/1000Base-T with PoE+; 4 x 10 Gigabit Base-X SFP+ |
|---|---|
| PoE | IEEE 802.3af/802.3at (Type 2); up to 30 W per port, 480 W total |
| Switch fabric | 132 Gbps non-blocking; up to 16K MAC addresses |
| Management | Layer 2 and Lite Layer 3; web GUI, HTTPS, CLI, Telnet, SSH, SNMP; out-of-band port |
| AV features | DM NVX and DM NAX profiles; IGMPv3/MLDv2 snooping and querier; IEEE 1588 PTPv2; LLDP |
| Other connections | RJ-45 console; USB-C; USB Type A; LED EXT (USB-C) |
| Controls | Power rocker switch; recessed reset button |
| Consumption | 614 W max PoE; 46.8 W no PoE; 33.90 W standby |
| Mounting | Freestanding or 1U 19-inch rack with reversible rack ears; fan cooled metal chassis |
| Dimensions | 43.2 x 440 x 400 mm (H x W x D) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| CEN-SWPOE-30 | Standard | On request |
Where the CEN-SWPOE-30 is used
Works with the CEN-SWPOE-30
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron CEN-SWPOE-30
What is the Crestron CEN-SWPOE-30?
It is a 30 port NETGEAR AV managed switch for Crestron AV-over-IP systems. It has 26 Gigabit Ethernet ports, 24 of which provide PoE+, and four 10 Gigabit SFP+ ports, with Layer 2 and Layer 3 switching and selectable DM NVX and DM NAX profiles.
How much PoE does the CEN-SWPOE-30 provide?
Its 24 PoE+ ports (IEEE 802.3at Type 2) provide up to 30 W per port and 480 W in total. With maximum PoE load the switch consumes 614 W, against 46.8 W without PoE and 33.90 W in standby.
What is the difference between the CEN-SWPOE-30 and CEN-SWPOE-30-ULTRA?
Both are 30 port NETGEAR AV managed switches in the same 1U size. The CEN-SWPOE-30 offers PoE+ at up to 30 W per port (480 W total) and four 10 Gigabit SFP+ ports. The CEN-SWPOE-30-ULTRA offers PoE++ (802.3bt Type 4) at up to 90 W per port (1440 W maximum) and four 1 Gigabit SFP ports.
Which AV and multicast features does the CEN-SWPOE-30 support?
It has selectable DM NVX and DM NAX profiles, IGMPv3 and MLDv2 snooping, IGMP querier, automated IGMP between switches and control packet flooding, plus IEEE 1588 PTPv2 and LLDP. Management is through a web GUI, CLI, SSH or SNMP, with an out-of-band service port.
How is the switch mounted?
It can stand freely or mount in a 1U 19-inch rack space using its reversible rack ears. The black metal chassis is fan cooled with vented sides and measures 43.2 mm high, 440 mm wide and 400 mm deep. Power, fan and PoE MAX LEDs are repeated on the front and rear panels.
How much is the Crestron CEN-SWPOE-30?
Crestron asks its dealers to give the price of the CEN-SWPOE-30 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the CEN-SWPOE-30?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CEN-SWPOE-30 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the CEN-SWPOE-30 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CEN-SWPOE-30 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the CEN-SWPOE-30 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the CEN-SWPOE-30 without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
