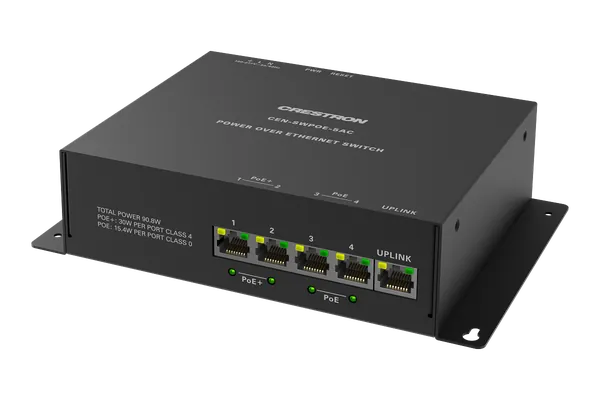

Crestron CEN-SWPOE-5AC 5-Port Unmanaged Gigabit PoE Switch

It is a 5-port unmanaged Gigabit Ethernet switch with PoE on four ports. It sends power and data to Crestron touch screens, gateways and other PoE devices over one CAT5/6 cable, so each device does not need its own power supply. It also supports lighting control for room-to-room communication.

Ports 1 and 2 are PoE+ outputs rated at 30 W maximum each. Ports 3 and 4 are PoE outputs rated at 15.4 W each. The fifth port is the Gigabit uplink to the rest of the network. Green LEDs show when a powered device is connected to ports 1 to 4.

No, it is an unmanaged switch. Its ports auto-negotiate and use auto MDI/MDIX, all five support 100BASE-TX and 1000BASE-T, and traffic is handled by store-and-forward switching. It meets IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3af/at.

It is powered from AC mains, with an input range of 100-277VAC at 50/60 Hz. Maximum input current is 2 A at 115VAC or 1 A at 277VAC. Heat dissipation is 10 BTU per hour and the operating range is 0 to 40°C.

The metal chassis has two integral mounting flanges. It can be freestanding, surface mounted on a wall or ceiling, fitted in a ceiling wall box or DIN 49073 box, mounted on DIN rail, or attached to a single rack rail. It measures 120 x 187 x 47 mm and weighs 850 g.

Crestron asks its dealers to give the price of the CEN-SWPOE-5AC directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CEN-SWPOE-5AC on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CEN-SWPOE-5AC develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
