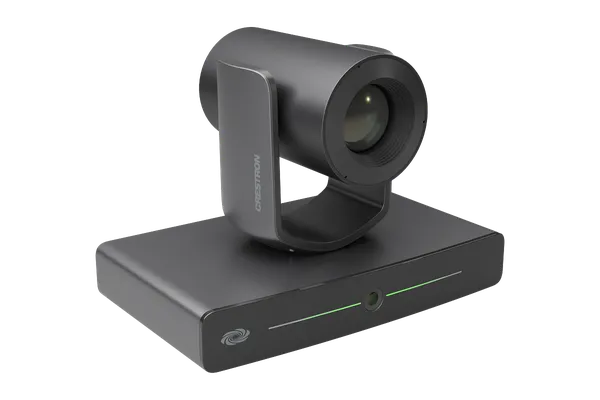

Crestron part number IV-CAM-I20-B
The Crestron IV-CAM-I20 is the 1 Beyond i20, an intelligent PTZ camera with 20x optical zoom that uses visual AI to track or frame a presenter automatically. It suits presenter tracking in large to extra large training rooms and classrooms, and group tracking in large to extra large conference rooms.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron IV-CAM-I20
The IV-CAM-I20 uses a dual camera design, pairing a wide-angle reference camera with a 104° horizontal view with the 20x PTZ camera, which pans, tilts and zooms automatically with no external computer. Its intelligent functions are Presenter Tracking, Group Tracking and Preset Zones, which change the camera's behaviour when people enter different areas of the room. Crestron recommends a range of 15 to 50 ft (4.6 to 15.2 m), and up to 256 presets can be stored.
Video is output at up to 1080p60 over 3G-SDI and HDMI and at up to 1080p30 over USB 3.0, with NDI HX2, RTSP, ONVIF and UVC also supported. It connects directly to a codec or a recording or streaming device, and can be controlled over Ethernet, RS-232 or RS-485 using VISCA, PELCO-D, PELCO-P or ONVIF. It is compatible with Automate VX multi-camera systems, and a tricolour status bar shows the live feed and tracking state.
One Ethernet connection carries PoE power (IEEE 802.3af Class 3), viewing, control and NDI HX2 video, or the camera can use a PW-1225DU 12 VDC power pack, sold separately. The IVA-WMT-BRKT-1B wall mount bracket is included, and the IVA-CMT-BRKTJ-1B J-Mount bracket is sold separately. Setup uses Crestron 1 Beyond Camera Manager software. It is 165 mm high, 226 mm wide and 149 mm deep, in Moon Gray, Bright White or a Moon Gray Government Version.
Key features
- Visual AI Presenter Tracking, Group Tracking and Preset Zones
- 20x optical zoom for tracking up to 50 ft (15.2 m) away
- Dual camera design, with no external computer needed
- Up to 1080p60 over 3G-SDI and HDMI, plus NDI HX2 and USB
- Single PoE connection for power, viewing, control and NDI HX2 video
- Wall mount bracket included
- Works with Automate VX multi-camera systems
- Moon Gray or Bright White
IV-CAM-I20 specifications
| Sensor and zoom | 1/2.8 Sony CMOS; 20x optical zoom; focal length 5.2 to 94 mm |
|---|---|
| Field of view | PTZ 56.45° horizontal; reference camera 104° horizontal |
| Pan and tilt | Pan -130° to 130° at 0.2° to 90°/s; tilt -30° to 90° at 0.2° to 70°/s |
| Intelligent functions | Presenter Tracking, Group Tracking, Preset Zones; recommended range 15 to 50 ft; up to 256 presets |
| Video outputs | 3G-SDI, HDMI, USB 3.0, NDI HX2, RTSP, ONVIF, UVC |
| Resolutions | SDI and HDMI up to 1080p60; USB up to 1080p30 |
| Control | Ethernet (100 Mbps), RS-232 or RS-485; VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |
| Power | PoE (IEEE 802.3af Class 3, 15.4 W) or PW-1225DU 12 VDC 2.5 A power pack (sold separately) |
| Mounting | IVA-WMT-BRKT-1B wall mount bracket included; IVA-CMT-BRKTJ-1B J-Mount bracket sold separately; 1/4 in thread |
| Dimensions | Height 165 mm (6.51 in), width 226 mm (8.90 in), depth 149 mm (5.86 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| IV-CAM-I20-B | Moon Gray | On request | |
| IV-CAM-I20-GV-B | Moon Gray, Government version | On request | |
| IV-CAM-I20-W | Bright White | On request |
Where the IV-CAM-I20 is used
Works with the IV-CAM-I20
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron IV-CAM-I20
What is the Crestron IV-CAM-I20?
It is the Crestron 1 Beyond i20, an intelligent PTZ camera with 20x optical zoom. It uses visual AI and a dual camera design to track or frame a presenter automatically, without an external computer, and suits large to extra large training rooms, classrooms and conference rooms.
How far away can the IV-CAM-I20 track?
Crestron quotes tracking distances of up to 50 ft (15.2 m) from participants, with a recommended range of 15 to 50 ft (4.6 to 15.2 m). The 20x optical zoom has a focal length of 5.2 to 94 mm, and the PTZ camera has a 56.45° horizontal field of view.
What is the difference between the IV-CAM-I20-B, IV-CAM-I20-W and IV-CAM-I20-GV-B?
IV-CAM-I20-B is Moon Gray and IV-CAM-I20-W is Bright White. IV-CAM-I20-GV-B is the Moon Gray Government Version. All three are the 1 Beyond i20 Intelligent PTZ Camera with 20x optical zoom, so match the part number to the existing camera when replacing one.
How is the IV-CAM-I20 powered?
It can be powered over Ethernet (IEEE 802.3af Class 3, rated 15.4 W), with the same connection carrying viewing, control and NDI HX2 video. Alternatively it runs from the PW-1225DU 12 VDC 2.5 A power pack, sold separately. Crestron specifies shielded CAT5e cable as a minimum for PoE to meet CE requirements.
What are Preset Zones on the IV-CAM-I20?
Preset Zones let the camera change its behaviour automatically when participants enter different areas of the room. They work alongside Presenter Tracking and Group Tracking, and the camera can store up to 256 configurable presets, set up with Crestron 1 Beyond Camera Manager software.
How much is the Crestron IV-CAM-I20?
Crestron asks its dealers to give the price of the IV-CAM-I20 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the IV-CAM-I20?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the IV-CAM-I20 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the IV-CAM-I20 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the IV-CAM-I20 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the IV-CAM-I20 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the IV-CAM-I20 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
