Crestron part number IV-CAM-P12-B

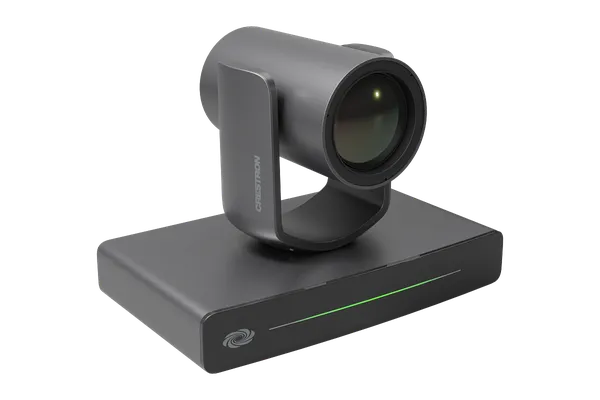

The Crestron IV-CAM-P12 is the 1 Beyond p12, a PTZ camera with 12x optical zoom that outputs video at up to 1080p60. It suits medium to large rooms where one camera needs to cover several areas, and it can form part of a multi-camera switching system with the IV-SAM-VX2-S Automate VX.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron IV-CAM-P12
The IV-CAM-P12 uses a 1/2.8 Sony CMOS sensor with 12x optical zoom (4.1 to 49.2 mm) and a 67.68° horizontal field of view. It pans from -130° to 130° and tilts from -30° to 90°, and up to 256 presets let it move between set views of the room. An image flip setting allows the camera to be mounted upside down.
Video is output at up to 1080p60 over 3G-SDI and HDMI and at up to 1080p30 over USB 3.0, with NDI HX2, RTSP, ONVIF and UVC also supported. Control runs over Ethernet, RS-232 or RS-485 using VISCA, PELCO-D, PELCO-P or ONVIF. It is compatible with Automate VX multi-camera systems, and Crestron suggests pairing it with the IV-SAM-VX2-S as part of a complete multi-camera switching solution.
A single Ethernet connection provides PoE power (IEEE 802.3af Class 3), viewing, control and NDI HX2 video, or a PW-1225DU 12 VDC power pack can be used, sold separately. The IV-CAMA-UMB universal mounting bracket is included, and the IVA-WMT-BRKT-1B wall mount bracket is sold separately. It measures 166 mm high, 226 mm wide and 149 mm deep and comes in Moon Gray or Bright White.
Key features
- 12x optical zoom PTZ camera
- Up to 1080p60 over 3G-SDI and HDMI
- NDI HX2, RTSP, ONVIF and UVC support
- Single PoE connection for power, viewing, control and NDI HX2 video
- Image flip for inverted mounting
- Up to 256 presets
- Compatible with Automate VX multi-camera systems
- Universal mounting bracket included
IV-CAM-P12 specifications
| Sensor and zoom | 1/2.8 Sony CMOS; 12x optical zoom; focal length 4.1 to 49.2 mm |
|---|---|
| Field of view | 67.68° horizontal |
| Pan and tilt | Pan -130° to 130° at 0.2° to 90°/s; tilt -30° to 90° at 0.2° to 70°/s |
| Presets | Up to 256 |
| Video outputs | 3G-SDI, HDMI, USB 3.0, NDI HX2, RTSP, ONVIF, UVC |
| Resolutions | SDI and HDMI up to 1080p60; USB up to 1080p30 |
| Control | Ethernet (100 Mbps), RS-232 or RS-485; VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |
| Power | PoE (IEEE 802.3af Class 3, 15.4 W) or PW-1225DU 12 VDC 2.5 A power pack (sold separately) |
| Mounting | IV-CAMA-UMB universal mounting bracket included; IVA-WMT-BRKT-1B wall bracket sold separately; 1/4 in thread; image flip for inverted mounting |
| Dimensions | Height 166 mm (6.55 in), width 226 mm (8.89 in), depth 149 mm (5.86 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| IV-CAM-P12-B | Moon Gray | On request | |
| IV-CAM-P12-W | Bright White | On request |
Where the IV-CAM-P12 is used
Works with the IV-CAM-P12
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.



Questions about the Crestron IV-CAM-P12
What is the Crestron IV-CAM-P12?
It is the Crestron 1 Beyond p12, a PTZ camera with 12x optical zoom that outputs video at up to 1080p60. It is designed for medium to large rooms where one camera needs to capture several areas, and it can be part of an Automate VX multi-camera system.
How does the IV-CAM-P12 work with Automate VX?
Crestron lists it as compatible with Automate VX multi-camera systems and suggests using it with the IV-SAM-VX2-S Crestron 1 Beyond Automate VX as part of a complete multi-camera switching solution. Its outputs include 3G-SDI and NDI HX2, and it stores up to 256 presets.
What is the difference between the IV-CAM-P12-B and IV-CAM-P12-W?
Only the colour. The IV-CAM-P12-B is Moon Gray and the IV-CAM-P12-W is Bright White. Both are the 1 Beyond p12 PTZ Camera with 12x optical zoom, so choose the finish that suits the room or matches existing cameras.
How is the IV-CAM-P12 powered?
It can be powered over Ethernet (IEEE 802.3af Class 3, rated 15.4 W), with the same connection carrying viewing, control and NDI HX2 video, or from a PW-1225DU 12 VDC 2.5 A power pack, sold separately. Crestron specifies shielded CAT5e cable as a minimum for PoE to meet CE requirements.
Can the camera be mounted upside down?
Yes. An image flip setting allows optional inverted mounting. The IV-CAMA-UMB 1 Beyond Universal Mounting Bracket is included, the IVA-WMT-BRKT-1B 1 Beyond Wall Mount Bracket is sold separately, and the camera has a 1/4 in threaded mount hole.
How much is the Crestron IV-CAM-P12?
Crestron asks its dealers to give the price of the IV-CAM-P12 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the IV-CAM-P12?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the IV-CAM-P12 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the IV-CAM-P12 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the IV-CAM-P12 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the IV-CAM-P12 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the IV-CAM-P12 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
