Crestron part number IV-CAM-I12-B

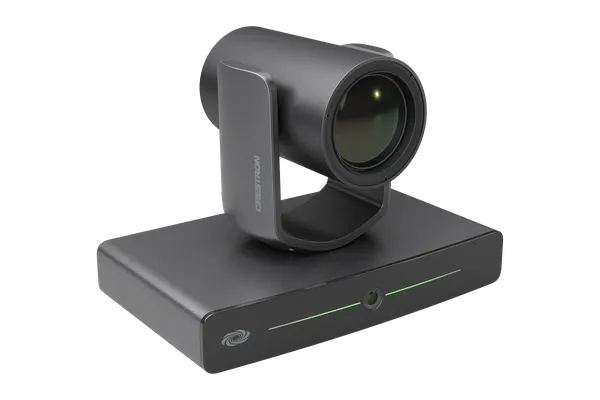

The Crestron IV-CAM-I12 is the 1 Beyond i12, an intelligent PTZ camera with 12x optical zoom that uses visual AI to frame groups or follow a presenter automatically. It suits group framing in medium to large conference rooms and presenter tracking in medium sized training rooms and classrooms.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron IV-CAM-I12
The IV-CAM-I12 has a dual camera design: a wide-angle reference camera with a 104° horizontal view works alongside the 12x PTZ camera, which pans, tilts and zooms automatically with no external computer needed. Intelligent functions include Group Framing, Presenter Tracking and Intelligent Switching. Crestron recommends 5 to 25 ft (1.5 to 7.6 m) for group framing and 15 to 25 ft (4.6 to 7.6 m) for presenter tracking, and up to 256 presets can be stored.
Video leaves the camera at up to 1080p60 over 3G-SDI and HDMI, and at up to 1080p30 over USB, with NDI|HX2, RTSP, ONVIF and UVC also supported. It connects directly to a codec or a recording or streaming device. Control runs over Ethernet, RS-232 or RS-485 using VISCA, PELCO-D, PELCO-P or ONVIF, and the IV-CAMA-REMOTE IR camera remote is supported. Two cameras can be combined for multi-camera switching, and it works with Automate VX systems.
A single Ethernet connection provides power (PoE, IEEE 802.3af Class 3), viewing and control, or the camera can run from a PW-1225DU 12 VDC power pack, sold separately. Each camera needs a mounting accessory, also sold separately, such as the IV-CAMA-UMB universal bracket or IVA-WMT-BRKT-1B wall bracket. Setup uses Crestron 1 Beyond Camera Manager 2 on a Windows computer. This page covers Moon Gray, Bright White and a Moon Gray Government Version.
Key features
- Visual AI for Group Framing, Presenter Tracking and Intelligent Switching
- 12x optical zoom with a dual camera design
- Up to 1080p60 over 3G-SDI and HDMI, plus NDI|HX2 and USB
- Connects directly to a codec or recording and streaming device
- Single PoE connection for power, viewing and control
- Up to 256 presets
- Works with Automate VX multi-camera systems
- Set up with Crestron 1 Beyond Camera Manager 2
IV-CAM-I12 specifications
| Sensor and zoom | 1/2.8 Sony CMOS; 12x optical zoom; focal length 4.1 to 49.2 mm |
|---|---|
| Field of view | PTZ 67.68° horizontal; reference camera 104° horizontal |
| Pan and tilt | Pan -130° to 130° at 0.2° to 90°/s; tilt -30° to 90° at 0.2° to 70°/s |
| Video outputs | 3G-SDI, HDMI, NDI|HX2, USB (UVC), RTSP, ONVIF |
| Resolutions | SDI and HDMI up to 1080p60; USB (NV12, MJPEG) up to 1080p30 |
| Intelligent functions | Group Framing (5 to 25 ft), Presenter Tracking (15 to 25 ft), Intelligent Switching; up to 256 presets |
| Control | Ethernet (100 Mbps), RS-232 or RS-485; VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF; IV-CAMA-REMOTE IR remote |
| Power | PoE (IEEE 802.3af Class 3, 15.4 W) or PW-1225DU 12 VDC 2.5 A power pack (sold separately) |
| Mounting | Mounting accessory required, sold separately, such as IV-CAMA-UMB or IVA-WMT-BRKT-1B; 1/4 in threaded mount hole |
| Dimensions | Height 166 mm (6.55 in), width 226 mm (8.89 in), depth 149 mm (5.86 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| IV-CAM-I12-B | Moon Gray | On request | |
| IV-CAM-I12-GV-B | Moon Gray, Government version | On request | |
| IV-CAM-I12-W | Bright White | On request |
Where the IV-CAM-I12 is used
Works with the IV-CAM-I12
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron IV-CAM-I12
What is the Crestron IV-CAM-I12?
It is the Crestron 1 Beyond i12, an intelligent PTZ camera with 12x optical zoom. It uses visual AI to frame meeting groups or track a presenter automatically, using a dual camera design with a wide-angle reference camera, and it needs no external computer to do so.
What is the difference between the IV-CAM-I12-B, IV-CAM-I12-W and IV-CAM-I12-GV-B?
IV-CAM-I12-B is Moon Gray and IV-CAM-I12-W is Bright White. IV-CAM-I12-GV-B is the Moon Gray Government Version. All three are the 1 Beyond i12 Intelligent PTZ Camera with 12x optical zoom, so match the part number to the existing camera when replacing one.
How is the IV-CAM-I12 powered?
It can be powered over Ethernet (IEEE 802.3af Class 3, rated 15.4 W), with the same connection carrying viewing and control, or by the PW-1225DU 12 VDC 2.5 A power pack, sold separately. Crestron specifies shielded CAT5e cable as a minimum for PoE power to meet CE requirements.
Does the IV-CAM-I12 need a mount?
Yes. Each camera requires a mounting accessory, bought separately. Crestron lists options including the IV-CAMA-UMB 1 Beyond Universal Mounting Bracket and the IVA-WMT-BRKT-1B 1 Beyond Wall Mount Bracket, with shelf, wall and suspended ceiling mounts available. The camera also has a 1/4 in threaded mount hole.
What can the camera connect to?
It connects directly to a codec or a recording or streaming device. Outputs include 3G-SDI and HDMI at up to 1080p60, NDI|HX2, RTSP and ONVIF over the network, and USB (UVC) at up to 1080p30. It can be controlled by VISCA, PELCO-D, PELCO-P or ONVIF over Ethernet, RS-232 or RS-485.
How much is the Crestron IV-CAM-I12?
Crestron asks its dealers to give the price of the IV-CAM-I12 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the IV-CAM-I12?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the IV-CAM-I12 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the IV-CAM-I12 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the IV-CAM-I12 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the IV-CAM-I12 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the IV-CAM-I12 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
