Crestron PW-2412WU 24 VDC 1.25 A Wall Mount Power Pack

Crestron part number PW-2412WU

The Crestron PW-2412WU is a universal, regulated wall mount power pack rated at 24 VDC and 1.25 A. It plugs directly into an electrical outlet with a universal blade kit for most outlet types, and connects to the product through a 2.1 x 5.5 mm DC barrel connector.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

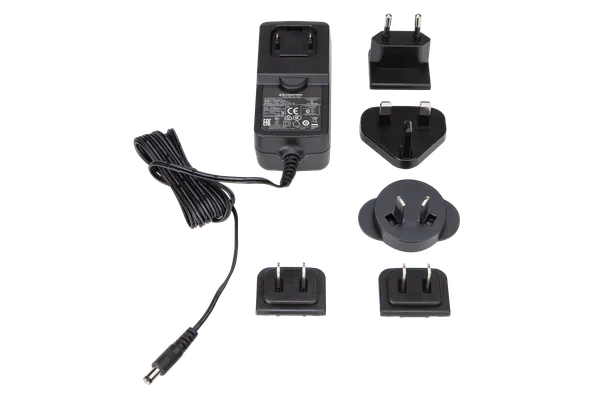

Crestron PW-2412WU Wall Mount Power Pack, 24 VDC, 1.25 A, 2.1 mm, Universal

About the Crestron PW-2412WU

Mains power at 100 to 240 VAC, 50/60 Hz enters through an ungrounded AC plug, with a maximum input current of 0.8 A. The universal blade kit adapts the plug to most outlet types. The regulated 24 VDC output, rated at 1.25 A, travels along a 1.83 m (6 ft) attached cable to a 2.1 x 5.5 mm DC power barrel connector.

It is a black plastic, outlet-mountable unit for indoor use only, rated for 5 to 40°C and 10% to 90% humidity, non-condensing, and it is CE marked and UL Listed. Crestron covers it under its standard limited warranty. When replacing a power pack, match the 24 VDC voltage and 2.1 x 5.5 mm connector, and check the product needs no more than 1.25 A.

Key features

24 VDC, 1.25 A regulated output
100 to 240 VAC, 50/60 Hz input, 0.8 A maximum
Plugs directly into an electrical outlet
Universal blade kit for most outlet types
1.83 m cable with 2.1 x 5.5 mm DC barrel connector
CE and UL Listed
Covered under the Crestron standard limited warranty

PW-2412WU specifications

Output	24 VDC, 1.25 A, regulated
Input	100 to 240 VAC, 50/60 Hz, 0.8 A maximum
Mains connection	Ungrounded AC plug with universal blade kit
DC connection	1.83 m (6 ft) attached cable with 2.1 x 5.5 mm DC power barrel connector
Construction	Black plastic, outlet-mountable; indoor use only
Environment	5 to 40°C, 10% to 90% RH non-condensing
Compliance	CE, UL Listed
Warranty	Covered under the Crestron standard limited warranty

Part numbers on this page

Part number	Version	Price	Add
PW-2412WU	Universal	On request

Where the PW-2412WU is used

Replacing a lost or failed PW-2412WU
Crestron products that take 24 VDC on a 2.1 mm barrel connector
Sites with different outlet types, using the universal blade kit

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PW-2412WU

What is the Crestron PW-2412WU?

It is a universal, regulated wall mount power pack with a 24 VDC, 1.25 A output. It plugs directly into an electrical outlet using a universal blade kit that suits most outlet types, and connects through a 2.1 x 5.5 mm DC power barrel connector.

What is the output of the PW-2412WU?

It supplies a regulated 24 VDC at up to 1.25 A. The output comes on a 1.83 m (6 ft) attached cable with a 2.1 x 5.5 mm DC power barrel connector, so check that the product you are powering uses that connector.

What input does the power pack accept?

It accepts 100 to 240 VAC at 50/60 Hz and draws a maximum of 0.8 A from the mains. The ungrounded AC plug comes with a universal blade kit that Crestron says fits most outlet types.

Can it be used outdoors?

No. Crestron specifies the power pack for indoor use only, with an operating range of 5 to 40°C and 10% to 90% relative humidity, non-condensing. The black plastic housing mounts directly on the electrical outlet.

Is the PW-2412WU covered by a warranty?

Yes. Crestron states that the PW-2412WU is covered under the Crestron standard limited warranty. It is also CE marked and UL Listed, and its output is regulated at 24 VDC and 1.25 A.

How much is the Crestron PW-2412WU?

Crestron asks its dealers to give the price of the PW-2412WU directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PW-2412WU?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PW-2412WU on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PW-2412WU come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PW-2412WU develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PW-2412WU in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PW-2412WU without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
