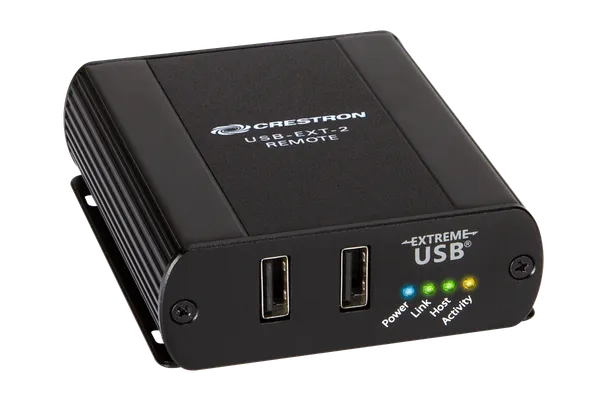

Crestron USB-EXT-2-REMOTE USB over CAT5e Extender, Remote

Crestron part number USB-EXT-2-REMOTE

The Crestron USB-EXT-2-REMOTE is the device end of a USB over Category Cable Extender, with two USB Type A ports for keyboards, mice and other USB devices. Paired with a USB-EXT-2-LOCAL at the host, it carries USB 1.1 and 2.0 signals up to 100 m (330 ft) over one CAT5e or better cable.

Limited supply at Crestron

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron USB-EXT-2-REMOTE USB over Category Cable Extender, Remote

About the Crestron USB-EXT-2-REMOTE

The Remote unit connects directly to the Link port of a USB-EXT-2-LOCAL over a single run of solid-core CAT5e or better unshielded twisted pair. Its two USB Type A ports take devices such as keyboards and mice, and a chain can include up to four USB hubs (not included), for up to 30 devices, or 26 devices when four hubs are used.

Throughput is up to 480 Mbps for USB 2.0 and 12 Mbps for USB 1.1, with Mass Storage Acceleration for USB 2.0 bulk transfers. Mass storage and isochronous devices are supported. The extension is plug-and-play, with no configuration, programming or drivers needed on Windows, macOS or Linux hosts.

The 100 to 240 VAC power supply is included with the Remote unit, outputs 1 A at 24 VDC and powers both ends from either location. The Remote supplies up to 1 A to each USB port, with 1.5 A in total. It measures 26 mm high without feet, 75 mm wide and 87 mm deep, with four slots for wire ties or mounting hardware.

Key features

Device end of the USB-EXT-2 extender pair
Two USB Type A ports for USB devices
Extends USB 1.1 and 2.0 up to 100 m (330 ft) over CAT5e or better
Up to 480 Mbps with Mass Storage Acceleration
100 to 240 VAC power supply included
Up to 1 A per USB port, 1.5 A total
No configuration, programming or drivers
Compatible with the USB-EXT-2 wall plate models

USB-EXT-2-REMOTE specifications

Role	Remote (device) endpoint; pairs with USB-EXT-2-LOCAL
Device connections	2 x USB Type A, female, USB 2.0 host ports
Link	1 x RJ45; up to 100 m (330 ft) over solid-core CAT5e or better UTP
USB support	USB 1.0/1.1 and 2.0, including mass storage and isochronous devices
Throughput	USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps
Hubs and devices	Up to 4 USB hubs per chain; 30 USB devices, or 4 hubs with 26 devices
USB power	1 A maximum per port, 1.5 A maximum total
Power supply	Included; input 100 to 240 VAC, 50/60 Hz; output 1 A at 24 VDC
Dimensions	26 mm H without feet x 75 mm W x 87 mm D (1.03 x 2.96 x 3.43 in)
Mounting	Four slots for wire ties or third-party mounting hardware

Part numbers on this page

Part number	Version	Price	Add
USB-EXT-2-REMOTE	Remote unit Limited supply	On request

Where the USB-EXT-2-REMOTE is used

Meeting tables where keyboards, mice and USB devices are used
Classrooms and auditoriums
Command centres and medical facilities
Replacing a failed Remote unit in an existing USB-EXT-2 link

Works with the USB-EXT-2-REMOTE

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron USB-EXT-2-REMOTE

What does the USB-EXT-2-REMOTE do?

It is the device end of Crestron's USB over Category Cable Extender. It provides two USB Type A ports for keyboards, mice and other USB 1.1 or 2.0 devices, and links over one CAT5e or better cable to a USB-EXT-2-LOCAL at the host, up to 100 m (330 ft) away.

Is a power supply included with the USB-EXT-2-REMOTE?

Yes. The Remote unit comes with a 100 to 240 VAC, 50/60 Hz power supply that outputs 1 A at 24 VDC. A single supply powers both the Local and Remote units, and it can be connected at either end of the link.

How much power do the USB ports provide?

Each of the two USB Type A ports supplies up to 1 A, with a maximum of 1.5 A across both ports. More devices can be added with up to four USB hubs (not included), up to 30 devices in total, or 26 when four hubs are used.

Can the USB-EXT-2-REMOTE work with the wall plate models?

Crestron lists the USB-EXT-2-LOCAL and USB-EXT-2-REMOTE as compatible with the USB over Category Cable Extender Wall Plates, USB-EXT-2-LOCAL-1G and USB-EXT-2-REMOTE-1G. When replacing a unit, check the part numbers at both ends of the existing link.

What speeds and devices are supported?

USB 2.0 runs at up to 480 Mbps and USB 1.1 at up to 12 Mbps. USB 1.0, 1.1 and 2.0 devices are supported, including mass storage and isochronous devices, and Mass Storage Acceleration helps USB 2.0 bulk transfers. No drivers are needed with Windows, macOS or Linux.

How much is the Crestron USB-EXT-2-REMOTE?

Crestron asks its dealers to give the price of the USB-EXT-2-REMOTE directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the USB-EXT-2-REMOTE?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the USB-EXT-2-REMOTE on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the USB-EXT-2-REMOTE come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the USB-EXT-2-REMOTE develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the USB-EXT-2-REMOTE in stock?

Crestron lists the USB-EXT-2-REMOTE as limited supply, so availability can change quickly. We check stock with Crestron before we quote and put the expected delivery date on your quote. If you need several, ask early.

Can I buy the USB-EXT-2-REMOTE without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
