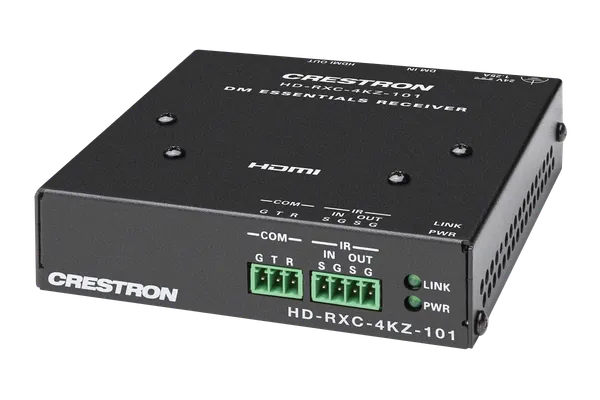

Crestron HD-RXC-4KZ-101 DM Essentials 4K60 4:4:4 HDMI Receiver

It is a DM Essentials 4K60 4:4:4 receiver. Working with a DM Essentials transmitter or DMPS Essentials switcher, it receives HDMI, RS-232 and IR signals over a CAT5e or higher cable and delivers them at the far end, with support for HDR10, HDR10+, Dolby Vision and HDCP 2.3.

Up to 40 m (130 ft) for UHD and 4K signals, or up to 70 m (230 ft) for 1080p, WUXGA and 2K signals. The link needs a CAT5e or higher twisted pair cable; Crestron names its DM-CBL-8G and DM-CBL-ULTRA cables, which are sold separately.

Its DM Essentials input connects to the output of a DM Essentials transmitter or DMPS Essentials switcher. Crestron lists it as a supported receiver for transmitters such as the HD-TX-4KZ-201 and HD-TX-4KZ-421-CHGR, and the HD-PS401 presentation system can send CEC, IR or RS-232 display control through it without a control system.

Yes. RS-232 passes in both directions at up to 115.2k baud (TD/RD only) between its 3-pin COM port and the COM port on the transmitter. IR passes bidirectionally at up to 60 kHz through a 4-pin IR IN/OUT terminal block, and CEC and EDID are passed through as well.

It comes with a PW-2420RU power pack that takes 100 to 240 VAC and supplies 24 VDC. The black metal chassis includes two mounting brackets and can be freestanding, surface mounted or attached to a single rack rail. It measures 105 mm high, 106 mm wide and 27 mm deep.

Crestron asks its dealers to give the price of the HD-RXC-4KZ-101 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-RXC-4KZ-101 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-RXC-4KZ-101 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
