Crestron USB-EXT-2-LOCAL USB over CAT5e Extender, Local

Crestron part number USB-EXT-2-LOCAL

The Crestron USB-EXT-2-LOCAL is the host end of a USB over Category Cable Extender, connecting to a computer, media server, codec or other USB host. Paired with a USB-EXT-2-REMOTE, it carries USB 1.1 and 2.0 signals up to 100 m (330 ft) over one CAT5e or better cable.

Limited supply at Crestron

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

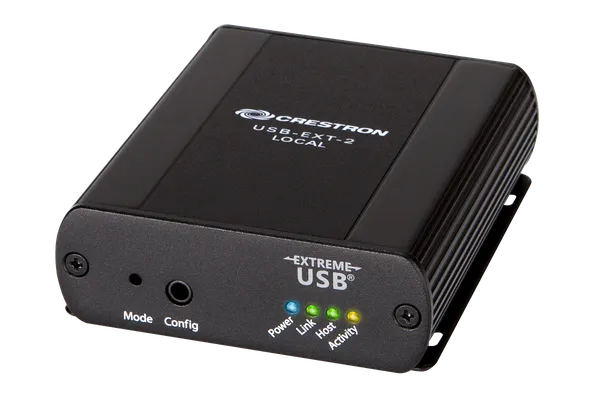

Crestron USB-EXT-2-LOCAL USB over Category Cable Extender, Local

About the Crestron USB-EXT-2-LOCAL

The Local unit has a USB Type B port that connects to the host, such as a computer, media server, game console, annotator or codec, and an RJ45 Link port that connects directly to a Remote unit. The Remote end provides two USB Type A ports for keyboards, mice and other devices. No configuration, programming or drivers are needed with Windows, macOS or Linux.

The link runs over solid-core CAT5e or better unshielded twisted pair at up to 480 Mbps for USB 2.0 and 12 Mbps for USB 1.1. Mass storage and isochronous devices are supported, and Mass Storage Acceleration helps USB 2.0 bulk transfers. A chain can include up to four USB hubs (not included), for 30 devices, or 26 devices with four hubs.

The Local unit is USB powered via the host interface and also has a 24 VDC input. The 100 to 240 VAC power supply for the pair comes with the Remote unit and can be connected at either end. The unit measures 26 mm high without feet, 75 mm wide and 87 mm deep, and it is compatible with the USB-EXT-2-LOCAL-1G and USB-EXT-2-REMOTE-1G wall plates.

Key features

Host end of the USB-EXT-2 extender pair
USB Type B port for the host computer or codec
Extends USB 1.1 and 2.0 up to 100 m (330 ft) over CAT5e or better
Up to 480 Mbps with Mass Storage Acceleration
No configuration, programming or drivers
USB powered via the host interface
Compatible with the USB-EXT-2 wall plate models

USB-EXT-2-LOCAL specifications

Role	Local (host) endpoint; pairs with USB-EXT-2-REMOTE
Host connection	1 x USB Type B, female, USB 2.0 device port
Link	1 x RJ45; up to 100 m (330 ft) over solid-core CAT5e or better UTP
USB support	USB 1.0/1.1 and 2.0, including mass storage and isochronous devices
Throughput	USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps
Hubs and devices	Up to 4 USB hubs per chain; 30 USB devices, or 4 hubs with 26 devices
Power	USB powered via the host interface; 24 VDC input on 2.1 x 5.5 mm DC connector
Indicators	Power, Link, Host and Activity LEDs
Dimensions	26 mm H without feet x 75 mm W x 87 mm D (1.03 x 2.96 x 3.43 in)
Mounting	Four slots for wire ties or third-party mounting hardware

Part numbers on this page

Part number	Version	Price	Add
USB-EXT-2-LOCAL	Local unit Limited supply	On request

Where the USB-EXT-2-LOCAL is used

Meeting room PCs or codecs placed away from the table
Classrooms and auditoriums
Command centres and medical facilities
Replacing a failed Local unit in an existing USB-EXT-2 link

Works with the USB-EXT-2-LOCAL

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron USB-EXT-2-LOCAL

What does the USB-EXT-2-LOCAL do?

It is the host end of Crestron's USB over Category Cable Extender. It connects to a computer, media server, game console, annotator or codec by USB Type B and sends USB 1.1 and 2.0 signals over one CAT5e or better cable to a Remote unit up to 100 m (330 ft) away.

Which unit does the USB-EXT-2-LOCAL pair with?

It links point to point with the USB-EXT-2-REMOTE, which provides two USB Type A ports for devices. The pair is also sold together as the USB-EXT-2 KIT, and Crestron lists both units as compatible with the USB-EXT-2-LOCAL-1G and USB-EXT-2-REMOTE-1G wall plates.

How is the USB-EXT-2-LOCAL powered?

Crestron lists the Local unit as USB powered via the USB host interface, and it also has a 24 VDC input on a 2.1 x 5.5 mm connector. A single 100 to 240 VAC power supply, included with the Remote unit, powers the pair and can be connected at either end of the link.

Does the extender need drivers?

No. The extension is plug-and-play with most USB 1.1 and 2.0 devices and hosts and needs no configuration or programming. No drivers are required with Windows, macOS or Linux, and throughput reaches 480 Mbps for USB 2.0 and 12 Mbps for USB 1.1.

What size is the unit and how is it fixed?

The USB-EXT-2-LOCAL measures 26 mm (1.03 in) high without feet, 75 mm (2.96 in) wide and 87 mm (3.43 in) deep. It has four slots for wire ties or third-party mounting hardware, so it can be secured close to the host it serves.

How much is the Crestron USB-EXT-2-LOCAL?

Crestron asks its dealers to give the price of the USB-EXT-2-LOCAL directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the USB-EXT-2-LOCAL?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the USB-EXT-2-LOCAL on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the USB-EXT-2-LOCAL come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the USB-EXT-2-LOCAL develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the USB-EXT-2-LOCAL in stock?

Crestron lists the USB-EXT-2-LOCAL as limited supply, so availability can change quickly. We check stock with Crestron before we quote and put the expected delivery date on your quote. If you need several, ask early.

Can I buy the USB-EXT-2-LOCAL without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
