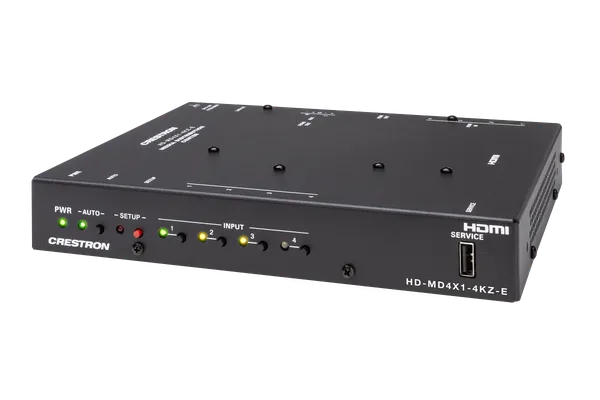

Crestron HD-MD4X1-4KZ 4x1 4K60 4:4:4 HDR HDMI Switcher

It is a 4x1 4K60 4:4:4 HDR AV switcher with four HDMI inputs and one HDMI output. It supports HDR10, HDR10+ and Dolby Vision, switches inputs automatically, manages EDID and is HDCP 2.3 compliant, with native Crestron control over Ethernet and XiO Cloud connectivity.

The HD-MD4X1-4KZ-E can be powered by PoE, as it is IEEE 802.3at Type 1 (802.3af compatible) Class 0 compliant, or by the optional PW-2407WU power pack (24 VDC, 0.75 A), which is sold separately. Typical power consumption is 10 W.

Yes. The switcher de-embeds HDMI audio to a stereo 2-channel analogue line output with volume adjustable from -80 dB to +20 dB, plus mute, mono and stereo settings. The analogue stage uses 24-bit 48 kHz conversion with a frequency response of 20 Hz to 20 kHz within ±0.5 dB.

It supports device control via CEC over its HDMI connection. The switcher can also be controlled natively by a Crestron control system over Ethernet, and it has a built-in web interface, XiO Cloud support and enterprise-grade security.

Each input accepts HDMI with HDR10, HDR10+, Dolby Vision and Deep Color up to 4K60 4:4:4. At 60 Hz, 4K runs at 4:4:4 with 24 bit colour depth or 4:2:2 at 36 bit. Inputs are compatible with DVI and Dual-Mode DisplayPort sources, and 1080i is accepted on the inputs.

Crestron asks its dealers to give the price of the HD-MD4X1-4KZ directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-MD4X1-4KZ on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-MD4X1-4KZ develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
