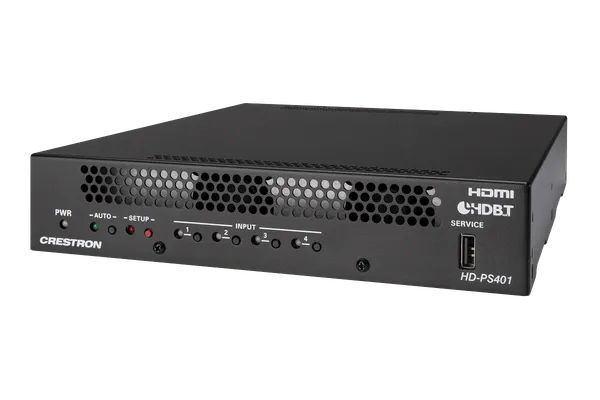

Crestron HD-PS401 4x1 4K60 4:4:4 HDR Presentation System

It is a 4x1 4K60 4:4:4 HDR presentation system with four HDMI inputs and a mirrored HDMI and DM Essentials output. It switches sources automatically, scales video to 4K60 4:4:4, mixes source and microphone audio and can control the display, with out-of-the-box functionality for conference rooms and classrooms.

Yes. The HDMI output supports CEC to turn a connected display on or off without a control system. When the DM Essentials output is connected to an HD-RXC-4KZ-101 or HD-RXC-4KZ-101-1G receiver, it can also send CEC, IR or RS-232 display control without a control system.

There are two mono balanced MIC/LINE inputs with +48VDC phantom power that can be enabled or disabled per channel, two mono LINE inputs that accept balanced or unbalanced signals, and the stereo LPCM audio extracted from the selected HDMI input. The mixer applies gain from -10 dB to +10 dB and mute to each of these five inputs.

The DM Essentials output mirrors the HDMI output and is HDBaseT certified, so it can feed a DM Essentials receiver such as the HD-RXC-4KZ-101. With custom control system programming, it can also send CEC and RS-232 control to an HDBaseT device.

Yes. The presentation system supports text overlay, image overlay and a background image for on-screen display. Its scaler outputs up to 4K60 4:4:4 with motion-adaptive deinterlacing and intelligent frame rate conversion, and it passes HDR10, HDR10+ and Dolby Vision.

Crestron asks its dealers to give the price of the HD-PS401 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-PS401 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-PS401 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
