Crestron HD-TXC-4KZ-101 4K60 HDMI over CATx Transmitter

Crestron part number HD-TXC-4KZ-101

The Crestron HD-TXC-4KZ-101 is a DM Essentials transmitter that sends an HDMI source, plus RS-232 and IR control, over one CAT5e or higher cable to a DM Essentials receiver or DMPS Essentials switcher. It suits rooms where the source is away from the display and 4K60 4:4:4 video with HDR is needed.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

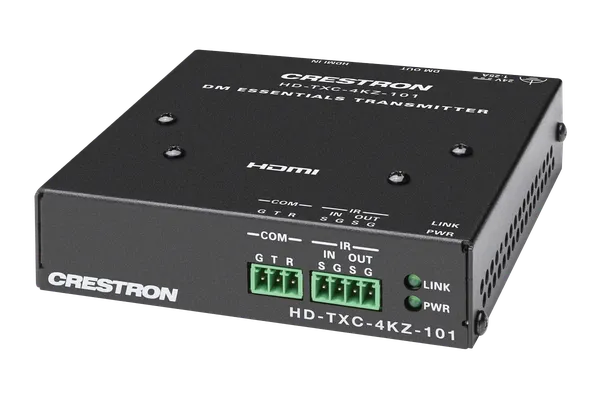

Crestron HD-TXC-4KZ-101 DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable

About the Crestron HD-TXC-4KZ-101

The HD-TXC-4KZ-101 takes an HDMI input with HDCP 2.3 and carries it over a DM Essentials link. It handles 4096x2160 and 3840x2160 at 60 Hz with 4:4:4 colour sampling at 8 bit, and 1080p60 at 4:4:4 12 bit. HDR10, HDR10+ and Dolby Vision pass through, as do audio formats including Dolby TrueHD, Dolby Atmos and DTS HD High Res. The HDMI input also accepts DVI and Dual-Mode DisplayPort sources.

It is built for point-to-point runs. The yellow DM OUT port connects to a DM Essentials receiver or DMPS Essentials switcher over CAT5e or higher twisted pair cable, such as Crestron DM-CBL-8G or DM-CBL-ULTRA (sold separately). The link reaches up to 40 m (130 ft) for UHD and 4K signals, or 70 m (230 ft) for 1080p, WUXGA and 2K. Two-way RS-232 at up to 115.2k baud, IR up to 60 kHz, CEC and EDID travel over the same cable.

Power comes from the included PW-2420RU power pack through a 2.1 x 5.5 mm DC connector. The black metal chassis has vented sides and two mounting brackets, so the unit can stand freely, be surface mounted or attach to a single rack rail. It measures 105 mm high, 106 mm wide and 27 mm deep. When replacing one, check that the far end of the cable is a DM Essentials receiver or DMPS Essentials switcher.

Key features

Extends HDMI, RS-232 and IR over one CAT5e or higher cable
4K60 4:4:4 video with HDR10, HDR10+ and Dolby Vision
HDCP 2.3 compliant, with CEC and EDID pass-through
Up to 40 m for UHD and 4K, or 70 m for 1080p, WUXGA and 2K
Two-way RS-232 up to 115.2k baud and bidirectional IR up to 60 kHz
Works with DM Essentials receivers and DMPS Essentials switchers
PW-2420RU power pack included
Compact metal chassis for freestanding, surface or rack rail mounting

HD-TXC-4KZ-101 specifications

HDMI input	HDMI Type A with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4; DVI and Dual-Mode DisplayPort compatible
DM Essentials output	8-pin RJ-45 (yellow, shielded) to a DM Essentials receiver or DMPS Essentials switcher
Resolutions	4096x2160 and 3840x2160 at 24 or 30 Hz 4:4:4 12 bit, 60 Hz 4:2:2 12 bit or 60 Hz 4:4:4 8 bit; 2560x1600 at 60 Hz; 1080p60 4:4:4 12 bit
Distance	Up to 40 m (130 ft) for UHD and 4K; up to 70 m (230 ft) for 1080p, WUXGA and 2K; CAT5e or higher cable
Copy protection	HDCP 2.3
Audio formats	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS ES, DTS 96/24, DTS HD High Res
Control pass-through	RS-232 2-way up to 115.2k baud (TD/RD only); bidirectional IR up to 60 kHz; CEC
Power	24 VDC 1.25 A via 2.1 x 5.5 mm DC connector; PW-2420RU power pack included (100 to 240 VAC input)
Mounting	Freestanding, surface mount or single rack rail; black metal chassis, 2 mounting brackets included
Dimensions	Height 105 mm (4.13 in), width 106 mm (4.18 in), depth 27 mm (1.08 in)

Part numbers on this page

Part number	Version	Price	Add
HD-TXC-4KZ-101	Standard	On request

Where the HD-TXC-4KZ-101 is used

Meeting rooms where the source is away from the display
Classrooms and training rooms fed by a DMPS Essentials switcher
Home cinemas and media rooms with source equipment in another space
Displays that need RS-232 or IR control at the far end of the cable
Equipment racks, fixed to a single rack rail

Works with the HD-TXC-4KZ-101

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron HD-TXC-4KZ-101

What is the Crestron HD-TXC-4KZ-101?

It is a DM Essentials 4K60 4:4:4 transmitter. It takes an HDMI source and sends the video, audio, RS-232 and IR signals over one CAT5e or higher twisted pair cable to a DM Essentials receiver or DMPS Essentials switcher, with HDCP 2.3 and support for HDR10, HDR10+ and Dolby Vision.

How far can the HD-TXC-4KZ-101 extend a signal?

Up to 40 m (130 ft) for UHD and 4K signals, and up to 70 m (230 ft) for 1080p, WUXGA and 2K signals. Crestron specifies CAT5e or higher twisted pair cable and names its DM-CBL-8G and DM-CBL-ULTRA cables, which are sold separately.

What does it need at the other end of the cable?

The transmitter is designed to work with a DM Essentials receiver or a DMPS Essentials switcher, connected to its yellow DM OUT port. If you are replacing a failed unit, check what is installed at the display or rack end so the new transmitter matches the existing DM Essentials system.

Can the HD-TXC-4KZ-101 pass RS-232 and IR control?

Yes. It passes 2-way RS-232 at up to 115.2k baud (TD/RD only) through a 3-pin terminal block, and bidirectional IR up to 60 kHz through a 4-pin terminal block with one IR input and one IR output. CEC and EDID pass through as well.

How is the HD-TXC-4KZ-101 powered and mounted?

It takes 24 VDC through a 2.1 x 5.5 mm connector from the PW-2420RU power pack, which comes in the box. The black metal chassis includes two mounting brackets and can be freestanding, surface mounted or attached to a single rack rail. It measures 105 mm high, 106 mm wide and 27 mm deep.

How much is the Crestron HD-TXC-4KZ-101?

Crestron asks its dealers to give the price of the HD-TXC-4KZ-101 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the HD-TXC-4KZ-101?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-TXC-4KZ-101 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the HD-TXC-4KZ-101 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-TXC-4KZ-101 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the HD-TXC-4KZ-101 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the HD-TXC-4KZ-101 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.

Crestron HD-TXC-4KZ-101 DM Essentials 4K60 HDMI Transmitter
