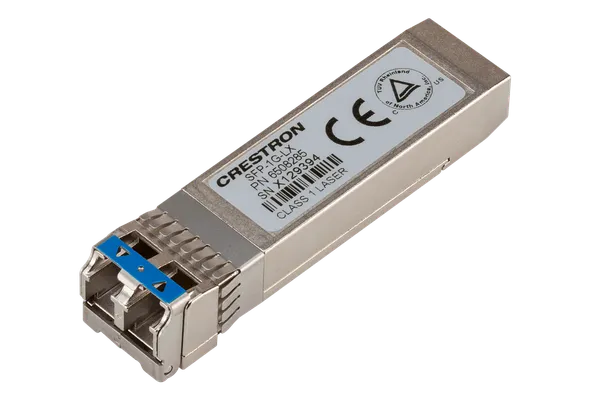

Crestron SFP-1G-LX Single-Mode 1310 nm SFP Module for DM-NVX

It is an SFP transceiver module that adds fibre optic network connectivity to a DM NVX series encoder/decoder. It is the 1000BASE-LX10 version for duplex single-mode fibre at 1310 nm, with a dual LC connector and a listed reach of 10 km (6.2 mi).

It needs single-mode fibre per ITU-T Rec. G.652, in a duplex run with two fibres on LC connectors. Crestron lists the maximum distance as 10 km (6.2 mi). For multimode fibre, Crestron lists the SFP-1G-SX instead, which works at 850 nm.

The SFP-1G-LX uses two single-mode fibres with a dual LC connector (802.3z 1000BASE-LX10). The SFP-1G-BX-U and SFP-1G-BX-D use one single-mode fibre with a single LC connector (802.3ah 1000BASE-BX10) and must be used as an uplink and downlink pair. All three are listed at 10 km (6.2 mi).

Crestron designed the SFP-1G series for DigitalMedia NVX series network AV encoder/decoder boxes and cards. The modules provide 1000BASE-X Gigabit Ethernet over fibre, and a selection of them covers various multimode and single-mode fibre types.

Yes. Crestron lists the SFP-1G modules as hot-swappable to minimise downtime. The SFP-1G-LX is shown in blue in Crestron's module table, the same colour as the SFP-1G-BX-U, so check the part number and connector type when identifying a module.

Crestron asks its dealers to give the price of the SFP-1G-LX directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the SFP-1G-LX on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the SFP-1G-LX develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
