Crestron USB-EXT-3S SYSTEM USB 3.2 Extender over CAT6a/7 Cable

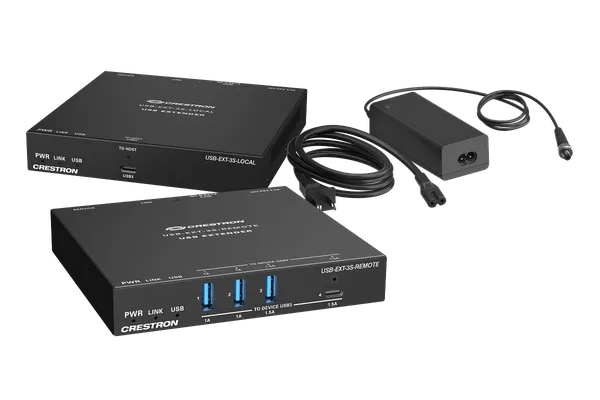

It is a USB 3.2 extender made up of a Local endpoint, which connects to the host by USB Type-C, and a Remote endpoint with four USB device ports. The two link point to point over one CAT6a or CAT7 cable, up to 100 m (330 ft), at USB 3.2 Gen 1 speeds of up to 5 Gbps.

The Local endpoint has one USB Type-C host port. The Remote endpoint has three USB Type-A ports and one USB Type-C port for devices such as cameras, video capture devices, flash drives and keyboards. USB 3.2, 2.0 and 1.1 devices can be used at the same time.

Each endpoint has a bidirectional RS-232 port on a 4-pin 3.5 mm terminal block, running at up to 115.2k baud. It passes serial data from a control system over the LINK connection, so serial control can travel on the same cable as the USB signals.

A PW-2030DU power pack is included, taking 100 to 240 VAC and delivering 3.0 A at 20 VDC through a locking DC connector. An endpoint can also receive power over the LINK connection. Total consumption is 31.28 W across both endpoints, with 25 W allocated to four USB devices.

It needs one CAT6a or CAT7 (or better) cable, F/FTP or U/FTP, run point to point between the endpoints for up to 100 m (330 ft). The link is proprietary and occupies a single USB tier. Crestron notes that a standard USB 3.2 cable is limited to 1.8 m (6 ft).

Crestron asks its dealers to give the price of the USB-EXT-3S SYSTEM directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the USB-EXT-3S SYSTEM on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the USB-EXT-3S SYSTEM develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
