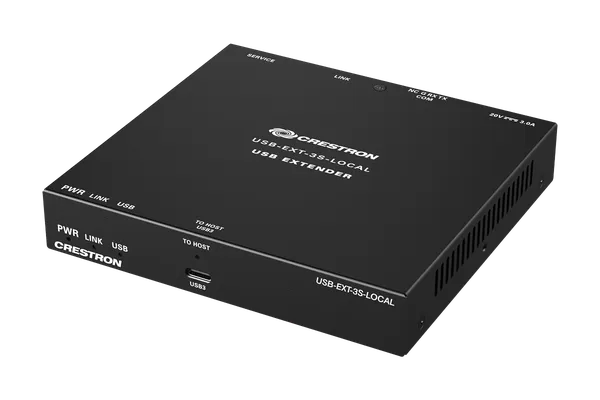

Crestron USB-EXT-3S-LOCAL USB 3.2 Extender over CAT6a/7, Local Unit

It is the host end of Crestron's USB-EXT-3S USB 3.2 extender. It connects to one USB host, such as a computer, media server or game console, over USB Type-C and sends USB 3.2, 2.0 and 1.1 signals over one CAT6a or CAT7 cable to a USB-EXT-3S-REMOTE up to 100 m (330 ft) away.

No. The PW-2030DU 20 VDC power pack is sold separately. It takes 100 to 240 VAC and delivers 3.0 A at 20 VDC through a locking DC connector. Crestron gives total consumption of 31.28 W across the Local and Remote endpoints.

The LINK port connects directly to the LINK port on a USB-EXT-3S-REMOTE, using Crestron's proprietary point-to-point link between USB-EXT-3S endpoints. The Remote provides the USB device ports. When replacing a unit, check the part number at the other end of the existing link.

Yes. It has a bidirectional RS-232 port on a 4-pin 3.5 mm terminal block, running at up to 115.2k baud, with the fourth pin not used. Crestron includes an RS-232 pass-through port on each USB-EXT-3S endpoint to carry serial data from a control system over the LINK connection.

It measures 23 mm (0.89 in) high, 130 mm (5.12 in) wide and 125 mm (4.90 in) deep and weighs 350 g (12.32 oz). The black metal housing has vented sides and can be freestanding or surface mounted, with mounting hardware included.

Crestron asks its dealers to give the price of the USB-EXT-3S-LOCAL directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the USB-EXT-3S-LOCAL on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the USB-EXT-3S-LOCAL develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
