Crestron PW-2030DU 20 VDC 3.0 A Desktop Power Pack

Crestron part number PW-2030DU

The Crestron PW-2030DU is a universal, regulated desktop power pack with a 20 VDC, 3.0 A output and a locking 2.1 x 5.5 mm DC barrel connector. Crestron designed it to power the USB-EXT-3S series USB extenders, which are sold separately.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

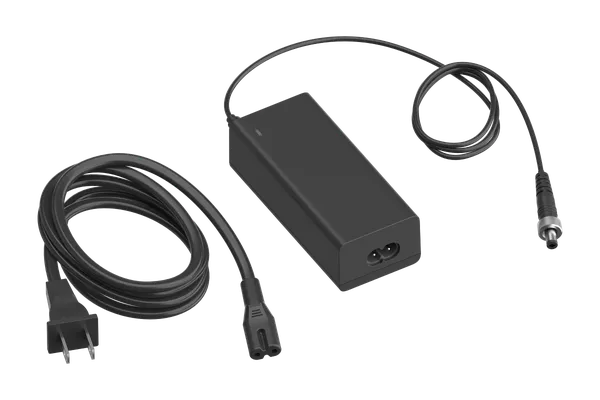

Crestron PW-2030DU Desktop Power Pack, 20VDC, 3.0A, Universal

About the Crestron PW-2030DU

Mains power connects through a C8 2-pin inlet, and the power pack accepts 100 to 240 VAC at 50/60 Hz, drawing up to 1.5 A. The regulated 20 VDC output, rated at 3.0 A, is delivered on an attached cable fitted with a locking 2.1 x 5.5 mm DC barrel connector, which helps keep the plug secure once it is connected.

Crestron lists it as the power pack for its USB-EXT-3S series USB extenders. It is a black plastic desktop unit for indoor use only, rated for 0 to 40°C and 0% to 90% humidity, non-condensing, and it is CE marked and UL Listed. When replacing one, check the label on the original so that the voltage, current and connector all match.

Key features

20 VDC, 3.0 A regulated output
100 to 240 VAC, 50/60 Hz input
Locking 2.1 x 5.5 mm DC barrel connector
C8 2-pin mains inlet
For Crestron USB-EXT-3S series USB extenders
Black plastic desktop unit for indoor use
CE and UL Listed

PW-2030DU specifications

Output	20 VDC, 3.0 A, regulated
Input	100 to 240 VAC, 50/60 Hz, 1.5 A maximum
Mains connection	C8 2-pin inlet
DC connection	Attached cable with 2.1 x 5.5 mm DC locking barrel connector
Intended for	Crestron USB-EXT-3S series USB extenders (sold separately)
Construction	Black plastic, desktop; indoor use only
Environment	0 to 40°C, 0% to 90% RH non-condensing
Compliance	CE, UL Listed

Part numbers on this page

Part number	Version	Price	Add
PW-2030DU	Universal	On request

Where the PW-2030DU is used

Powering USB-EXT-3S series USB extenders
Replacing a lost or failed PW-2030DU
Spare power pack for USB extension systems

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PW-2030DU

What is the Crestron PW-2030DU?

It is a universal, regulated desktop power pack with a 20 VDC, 3.0 A output. Crestron makes it for the USB-EXT-3S series USB extenders, and it connects to them through a locking 2.1 x 5.5 mm DC barrel connector on an attached cable.

Which products does the PW-2030DU power?

Crestron lists it as a regulated power pack for the USB-EXT-3S series USB extenders, which are sold separately. If you are replacing an extender's power pack, check the original label so the voltage, current and connector all match.

What connector does the PW-2030DU have?

The output is an attached cable with a 2.1 x 5.5 mm DC locking barrel connector, and mains power connects to a C8 2-pin inlet. Crestron also offers the PW-2030DUL with flying leads, for USB-EXT-3S series wall plates.

What mains input does it accept?

It accepts 100 to 240 VAC at 50/60 Hz, with a maximum input current of 1.5 A, through its C8 2-pin inlet. It is designed for indoor use only and is CE marked and UL Listed.

Where should the power pack be placed?

It is a black plastic desktop power pack for indoor use only, rated for 0 to 40°C and 0% to 90% relative humidity, non-condensing. Place it where it stays within those conditions and where the attached cable reaches the extender.

How much is the Crestron PW-2030DU?

Crestron asks its dealers to give the price of the PW-2030DU directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PW-2030DU?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PW-2030DU on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PW-2030DU come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PW-2030DU develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PW-2030DU in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PW-2030DU without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
