Crestron PW-5430DUS PoDM and PoDM+ Power Pack

Crestron part number PW-5430DUS

The Crestron PW-5430DUS is an optional high-efficiency power pack that provides PoDM and PoDM+ power to Crestron DMB-4K-I-C and DMB-4K-O-C blades and to the DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems. Its regulated 54 VDC output connects through a combo D-Sub 7W2 connector on an attached 1.8 m cable.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

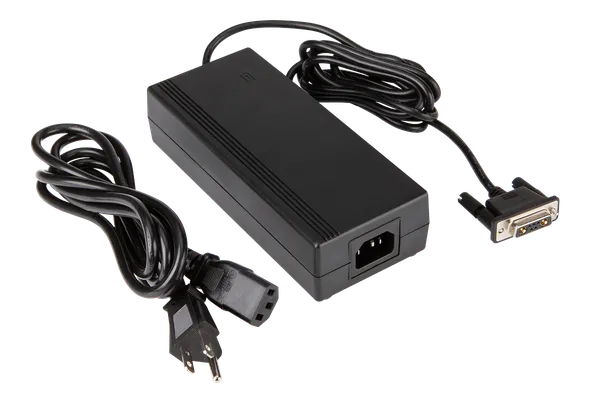

Crestron PW-5430DUS High-Efficiency Power Pack

About the Crestron PW-5430DUS

With a DMB-4K-I-C or DMB-4K-O-C blade, the PW-5430DUS can deliver PoDM power of 15.4 W to all eight DM 8G+ ports on the blade. It also supports PoDM+ at 30 W. The same power pack can be used with the DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems to provide PoDM and PoDM+.

The output is 54 VDC at 2.96 A, regulated, on a 1.8 m (6 ft) attached cable ending in a combo D-Sub 7W2 female connector. Mains power connects to an IEC 60320 C14 inlet using the removable power cord supplied, and the unit draws 2.5 A at 100 to 240 VAC, 50/60 Hz. A green LED shows that the power pack is powered and working.

It is a black plastic desktop unit measuring 40 mm high, 73 mm wide and 170 mm deep, weighing 0.7 kg, and rated for 0 to 40°C. It is UL Listed and carries CE, IC and FCC Part 15 compliance. When replacing one, confirm that the blade or presentation system is one of the four models Crestron lists.

Key features

Provides PoDM and PoDM+ power
PoDM (15.4 W) to all eight DM 8G+ ports on a DMB-4K-I-C or DMB-4K-O-C blade
PoDM+ at 30 W
Also for DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems
54 VDC, 2.96 A regulated output on a combo D-Sub 7W2 connector
IEC 60320 C14 inlet, removable power cord included
Green power LED
Black plastic desktop unit, 0.7 kg

PW-5430DUS specifications

Output	54 VDC, 2.96 A, regulated
DC connection	1.8 m (6 ft) attached cable with combo D-Sub 7W2 female connector
Input	100 to 240 VAC, 50/60 Hz, 2.5 A
Mains connection	IEC 60320 C14 inlet; removable power cord included
PoDM	15.4 W to all eight DM 8G+ ports on a DMB-4K-I-C or DMB-4K-O-C blade
PoDM+	30 W
Compatible with	DMB-4K-I-C and DMB-4K-O-C blades; DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems
Indicator	Green power LED
Dimensions	Height 40 mm (1.58 in), width 73 mm (2.88 in), depth 170 mm (6.70 in)
Weight	0.7 kg (1.4 lb)

Part numbers on this page

Part number	Version	Price	Add
PW-5430DUS	Standard	On request

Where the PW-5430DUS is used

Adding PoDM to DMB-4K-I-C or DMB-4K-O-C blades
PoDM on all eight DM 8G+ ports of a blade
DMPS3-4K-350-C and DMPS3-4K-250-C systems that need PoDM or PoDM+
Replacing a PW-5430DUS in an existing DM system

Works with the PW-5430DUS

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PW-5430DUS

What is the Crestron PW-5430DUS?

It is an optional high-efficiency power pack that provides PoDM and PoDM+ power. Crestron lists it for the DMB-4K-I-C and DMB-4K-O-C blades and for the DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems. It outputs a regulated 54 VDC at 2.96 A.

Which products does the PW-5430DUS work with?

Crestron names four: the DMB-4K-I-C and DMB-4K-O-C blades, and the DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems. Check that the equipment you want to power is one of these models before ordering.

How much PoDM power does the PW-5430DUS provide to a blade?

When it is used with a DMB-4K-I-C or DMB-4K-O-C blade, it can provide PoDM power of 15.4 W to all eight DM 8G+ ports on the blade. It also supports PoDM+, which Crestron rates at 30 W.

What connectors does the power pack have?

The 54 VDC output is on a 1.8 m (6 ft) attached cable with a combo D-Sub 7W2 female connector. Mains power connects to an IEC 60320 C14 inlet using the removable power cord, which is included.

What are the dimensions of the PW-5430DUS?

It is a black plastic desktop unit measuring 40 mm (1.58 in) high, 73 mm (2.88 in) wide and 170 mm (6.70 in) deep, and it weighs 0.7 kg (1.4 lb). A green LED confirms that it is powered and working.

How much is the Crestron PW-5430DUS?

Crestron asks its dealers to give the price of the PW-5430DUS directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PW-5430DUS?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PW-5430DUS on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PW-5430DUS come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PW-5430DUS develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PW-5430DUS in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PW-5430DUS without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
