Crestron PSU-MIDSPAN-USB-1-C USB-C Power Injector Kit

Crestron part number PSU-MIDSPAN-USB-1-C KIT

The Crestron PSU-MIDSPAN-USB-1-C KIT packages the PSU-MIDSPAN-USB-1 single channel midspan power injector with two USB-C cables, the CBL-USB3G2-C-C-3 and CBL-USB3G1-C-C-6. The injector supplies up to 100 W to a USB-C host while passing data and video through to a USB-C device.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

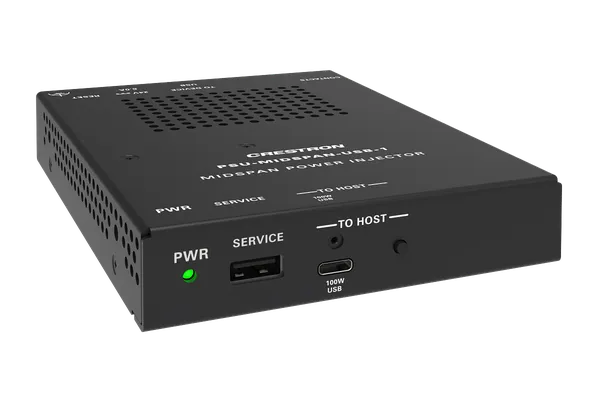

Crestron PSU-MIDSPAN-USB-1-C Single Channel Midspan USB Power Injector with Cables

About the Crestron PSU-MIDSPAN-USB-1-C

The kit saves ordering the injector and cables separately. The injector sits between the host and the USB-C device, passing USB 3.2 data at up to 10 Gbps and USB 2.0 at up to 480 Mbps, and supporting DisplayPort 1.4 Alternative Mode. In mixed mode, DisplayPort video and USB 3.2 data are available together, with video up to 4K30; full DP Alt Mode reaches 5120x2160 at 30 Hz or 5120x1440 at 60 Hz.

No configuration or programming is required. A push button on the unit closes a normally open contact on a 2-pin terminal block, which can be used to trigger a control processor. There is also a USB 2.0 Type-A service port for firmware updates, a recessed reset button and a two-colour power LED. Power comes from the included PW-2460DU power pack, rated 100 to 240 VAC in and 24 VDC at 6 A out.

The injector has a black metal chassis measuring 25 mm high, 112 mm wide and 146 mm deep, and weighs 0.4 kg. It can stand freely, mount on a wall or table surface with the included bracket, or attach to a Crestron FlipTop cable enclosure. If you already have suitable cables, the PSU-MIDSPAN-USB-1 injector is also available on its own.

Key features

Includes the PSU-MIDSPAN-USB-1 injector and two USB-C cables
Supplies up to 100 W to one USB-C host
USB 3.2 data up to 10 Gbps and USB 2.0 up to 480 Mbps
DisplayPort 1.4 Alt Mode pass-through, with mixed mode video and data
No configuration or programming required
Contact closure push button to trigger a control processor
Attaches to a Crestron FlipTop cable enclosure
PW-2460DU power pack included

PSU-MIDSPAN-USB-1-C specifications

Kit contents	PSU-MIDSPAN-USB-1, CBL-USB3G2-C-C-3, CBL-USB3G1-C-C-6
Host power	Up to 100 W to one USB-C host
USB data	USB 3.2 Gen2 up to 10 Gbps; USB 2.0 up to 480 Mbps
Video	DP Alt Mode mixed up to 4K30 (v1.4, HBR2); DP Alt Mode full up to 5120x2160 at 30 Hz or 5120x1440 at 60 Hz
Connectors	USB Type-C female TO HOST and TO DEVICE; USB 2.0 Type-A service port; 2-pin contact closure terminal block
Power	24 VDC 6 A from the included PW-2460DU power pack (100 to 240 VAC input)
Mounting	Freestanding, wall or table surface mount with included bracket, or attach to a Crestron FlipTop cable enclosure
Dimensions	Height 25 mm (1.00 in), width 112 mm (4.41 in), depth 146 mm (5.75 in)
Weight	0.4 kg (0.8 lb)

Part numbers on this page

Part number	Version	Price	Add
PSU-MIDSPAN-USB-1-C KIT	Kit with cables	On request

Where the PSU-MIDSPAN-USB-1-C is used

Meeting room tables with a USB-C presentation connection
FlipTop cable enclosures in boardroom tables
Powering a USB-C host while it shares video and data
New rooms that need the injector and cables together

Works with the PSU-MIDSPAN-USB-1-C

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PSU-MIDSPAN-USB-1-C

What is the Crestron PSU-MIDSPAN-USB-1-C KIT?

It is a kit containing the PSU-MIDSPAN-USB-1 single channel midspan USB power injector and two USB-C cables, the CBL-USB3G2-C-C-3 and CBL-USB3G1-C-C-6. The injector supplies up to 100 W to a USB-C host while passing data and video through to a USB-C device.

What is the difference between the PSU-MIDSPAN-USB-1-C KIT and the PSU-MIDSPAN-USB-1?

The injector is the same. The PSU-MIDSPAN-USB-1-C KIT adds the CBL-USB3G2-C-C-3 and CBL-USB3G1-C-C-6 USB-C cables, which are sold separately when you buy the PSU-MIDSPAN-USB-1 on its own. Both come with the PW-2460DU power pack.

How much power does the injector supply?

It powers one USB-C host at up to 100 W. The injector itself is powered by the included PW-2460DU power pack, which takes 100 to 240 VAC and outputs 24 VDC at 6 A.

What does the contact closure button do?

A push button on the injector closes a normally open contact on a 2-pin 3.5 mm terminal block. Crestron describes it as a way to trigger a control processor, so the room's control system can respond when the button is pressed.

Does the injector need programming?

No. Crestron states that no configuration or programming is required. The injector passes USB 3.2 data at up to 10 Gbps and DisplayPort Alt Mode video, including mixed mode with video up to 4K30 alongside USB 3.2 data.

How much is the Crestron PSU-MIDSPAN-USB-1-C?

Crestron asks its dealers to give the price of the PSU-MIDSPAN-USB-1-C directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PSU-MIDSPAN-USB-1-C?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PSU-MIDSPAN-USB-1-C on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PSU-MIDSPAN-USB-1-C come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PSU-MIDSPAN-USB-1-C develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PSU-MIDSPAN-USB-1-C in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PSU-MIDSPAN-USB-1-C without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
