Crestron PSU-MIDSPAN-USB-1 USB-C Power Injector, 100 W

Crestron part number PSU-MIDSPAN-USB-1

The Crestron PSU-MIDSPAN-USB-1 is a single channel midspan power injector for USB-C connections. It supplies up to 100 W to the connected host while passing USB data and DisplayPort Alt Mode video through to a USB-C device, with no configuration or programming required.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

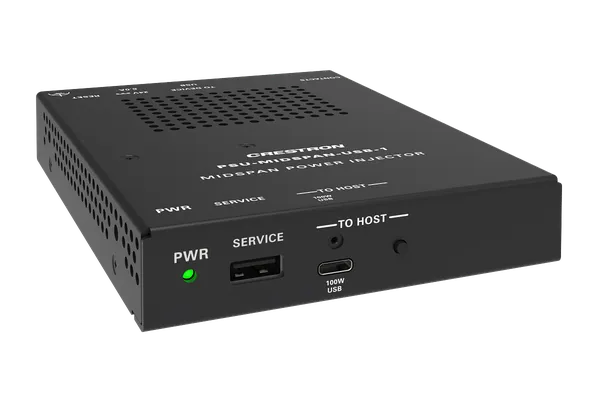

Crestron PSU-MIDSPAN-USB-1 Single Channel Midspan USB Power Injector

About the Crestron PSU-MIDSPAN-USB-1

The injector sits between the host and the USB-C device. Data passes through at up to 10 Gbps (USB 3.2 Gen2) or 480 Mbps (USB 2.0), and DisplayPort 1.4 Alternative Mode video is supported. In mixed mode, DisplayPort video and USB 3.2 data run at the same time, with video up to 4K30; in full DP Alt Mode, resolutions reach 5120x2160 at 30 Hz or 5120x1440 at 60 Hz.

A push button on the unit closes a normally open contact on a 2-pin terminal block, which can be used to signal a control processor. A USB 2.0 Type-A service port handles firmware updates, and a two-colour LED shows power status. The injector runs from the included PW-2460DU power pack (100 to 240 VAC in, 24 VDC 6 A out) and is TAA compliant for government deployments.

The black metal chassis is 25 mm high, 112 mm wide and 146 mm deep and weighs 400 g. It can stand freely, be surface mounted on a wall or table with the included bracket, or attach to a Crestron FlipTop cable enclosure. USB-C cables are not included: use the CBL-USB3G2-C-C-3 or CBL-USB3G1-C-C-6, or order the PSU-MIDSPAN-USB-1-C KIT, which includes both.

Key features

Supplies up to 100 W to one USB-C host
USB 3.2 data pass-through up to 10 Gbps, USB 2.0 up to 480 Mbps
DisplayPort 1.4 Alt Mode video pass-through
Mixed mode: DisplayPort video and USB 3.2 data at the same time
No configuration or programming required
Contact closure output with push button
Attaches to a Crestron FlipTop cable enclosure
TAA compliant; PW-2460DU power pack included

PSU-MIDSPAN-USB-1 specifications

Host power	Up to 100 W to one USB-C host
USB data	USB 3.2 Gen2 up to 10 Gbps; USB 2.0 up to 480 Mbps
Video	DP Alt Mode mixed up to 4K30 (v1.4, HBR2); DP Alt Mode full up to 5120x2160 at 30 Hz or 5120x1440 at 60 Hz
Connectors	USB Type-C female TO HOST and TO DEVICE; USB 2.0 Type-A service port; 2-pin contact closure terminal block
Power	24 VDC 6 A from the included PW-2460DU power pack (100 to 240 VAC input)
Controls	Contact closure push button, recessed reset button, two-colour power LED
Mounting	Freestanding, wall or table surface mount with included bracket, or attach to a Crestron FlipTop cable enclosure
Dimensions	Height 25 mm (1.00 in), width 112 mm (4.41 in), depth 146 mm (5.75 in)
Weight	400 g (13 oz)
Compliance	TAA compliant

Part numbers on this page

Part number	Version	Price	Add
PSU-MIDSPAN-USB-1	Standard	On request

Where the PSU-MIDSPAN-USB-1 is used

Meeting room tables with a USB-C presentation connection
Powering a USB-C host while it shares video and data
FlipTop cable enclosures in boardroom tables
Government sites that require TAA compliant equipment

Works with the PSU-MIDSPAN-USB-1

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PSU-MIDSPAN-USB-1

What is the Crestron PSU-MIDSPAN-USB-1?

It is a single channel midspan USB power injector. Placed in a USB-C connection, it supplies up to 100 W to the host while passing USB data and DisplayPort Alt Mode video through to a USB-C device. It needs no configuration or programming.

How much power does the PSU-MIDSPAN-USB-1 deliver?

It powers one USB-C host at up to 100 W. The injector itself runs from the included PW-2460DU power pack, which accepts 100 to 240 VAC and outputs 24 VDC at 6 A through the injector's DC power input.

What video and data does it pass through?

It passes USB 3.2 data at up to 10 Gbps and USB 2.0 at up to 480 Mbps, and supports DisplayPort 1.4 Alternative Mode. In mixed mode, video up to 4K30 and USB 3.2 data run together; in full DP Alt Mode, it reaches 5120x2160 at 30 Hz or 5120x1440 at 60 Hz.

Are USB-C cables included with the PSU-MIDSPAN-USB-1?

No. Crestron lists the CBL-USB3G2-C-C-3 and CBL-USB3G1-C-C-6 as compatible cables, sold separately. If you want the cables supplied together with the injector, the PSU-MIDSPAN-USB-1-C KIT includes the injector and both cables.

How can the injector be mounted?

It can be freestanding, surface mounted on a wall or table using the included mounting bracket, or attached to a Crestron FlipTop cable enclosure. The black metal chassis measures 25 mm high, 112 mm wide and 146 mm deep and weighs 400 g.

How much is the Crestron PSU-MIDSPAN-USB-1?

Crestron asks its dealers to give the price of the PSU-MIDSPAN-USB-1 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PSU-MIDSPAN-USB-1?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PSU-MIDSPAN-USB-1 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PSU-MIDSPAN-USB-1 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PSU-MIDSPAN-USB-1 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PSU-MIDSPAN-USB-1 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PSU-MIDSPAN-USB-1 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
