Crestron HD-TX-4KZ-401 HDMI Transmitter, 4x1 Auto-Switcher

Crestron part number HD-TX-4KZ-401

The Crestron HD-TX-4KZ-401 is a DM Essentials 4K60 4:4:4 transmitter with four HDMI inputs and automatic switching. It sends the chosen source over a CAT5e or higher cable to a DM Lite receiver or DMPS Lite switcher, supporting HDR10, HDR10+, Dolby Vision and HDCP 2.3.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

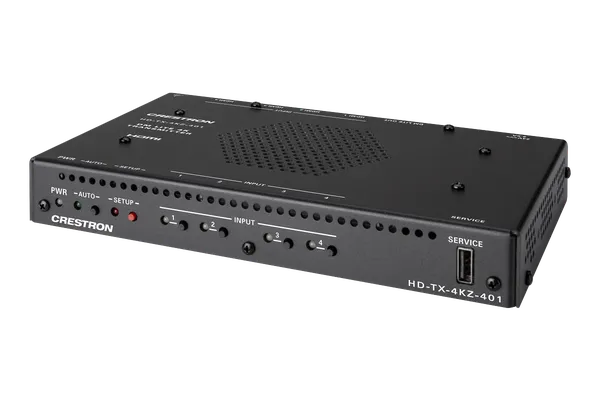

Crestron HD-TX-4KZ-401 DM Essentials 4K60 4:4:4 Transmitter and 4x1 Auto-Switcher for HDMI Signal Extension over CATx Cable

About the Crestron HD-TX-4KZ-401

Crestron lists the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101 and HD-RXCA-4KZ-101 as examples of supported 4K60 4:4:4 receivers, and the output port is labelled DM LITE OUT. Range is up to 40 m (130 ft) for UHD and 4K or 70 m (230 ft) for 1080p, WUXGA and 2K. All four HDMI inputs accept DVI and Dual-Mode DisplayPort sources.

The transmitter can be configured and controlled only when used with a DMPS Lite switcher, which provides the web interface and hosts control system programming and .AV Framework support for it. Through the switcher, switching among the four inputs can follow the last connected input or a routing priority. On the unit, an AUTO button enables or disables automatic switching and four buttons select inputs manually.

The included PW-2420RU power pack supplies 24 VDC. Paired with an HD-RX-4K-210-C-E, the transmitter cannot power the receiver, so power has to be connected to the receiver only. The black metal chassis is vented on the top, front, rear and sides, measures 30 mm high, 216 mm wide and 133 mm deep, and has two brackets for freestanding, surface or single rack rail mounting.

Key features

Four HDMI inputs with automatic switching
4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision, HDCP 2.3
Up to 40 m for 4K, or 70 m for 1080p, WUXGA and 2K
Works with DM Lite receivers such as the HD-RXC-4KZ-101
EDID and CEC pass-through
AUTO button and four manual input buttons
PW-2420RU power pack included

HD-TX-4KZ-401 specifications

Inputs	4 x HDMI Type A; DVI and Dual-Mode DisplayPort compatible
Output	DM Lite (DM LITE OUT, RJ-45, yellow, shielded)
Video	Up to 4K60 4:4:4 (8 bit) or 4:2:2 (12 bit); HDR10, HDR10+, Dolby Vision, Deep Color
Copy protection	HDCP 2.3; EDID and CEC pass-through
Distance	Up to 40 m (130 ft) UHD and 4K; up to 70 m (230 ft) 1080p, WUXGA and 2K
Switching	Automatic or manual; configured through a DMPS Lite switcher
USB	SERVICE port (USB 2.0 Type-A) for firmware, configuration or one TT-100 series cable caddy
Power	PW-2420RU power pack included (100-240 VAC in, 24 VDC 2.5 A out)
Mounting	Freestanding, surface or single rack rail; 2 mounting brackets included
Dimensions	Height 30 mm (1.20 in), width 216 mm (8.52 in), depth 133 mm (5.23 in)

Part numbers on this page

Part number	Version	Price	Add
HD-TX-4KZ-401	Standard	On request

Where the HD-TX-4KZ-401 is used

Up to four HDMI sources sharing one cable run
Rooms built around a DMPS Lite switcher
Point-to-point links to an HD-RXC-4KZ-101 or HD-RXCA-4KZ-101
Surface or rack rail mounting beside several sources

Works with the HD-TX-4KZ-401

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron HD-TX-4KZ-401

What is the Crestron HD-TX-4KZ-401?

It is a DM Essentials 4K60 4:4:4 transmitter and 4x1 auto-switcher for HDMI. It takes up to four HDMI sources, switches between them and extends the selected source over a CAT5e or higher cable to a DM Lite receiver or DMPS Lite switcher, with HDR and HDCP 2.3 support.

Which receivers work with the HD-TX-4KZ-401?

Its DM Lite output must be connected to a DM Lite input on a DM Lite receiver or DMPS Lite switcher. Crestron gives the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101 and HD-RXCA-4KZ-101 as examples of supported 4K60 4:4:4 receivers.

How does input switching work on the HD-TX-4KZ-401?

Inputs can switch automatically, and the AUTO button enables or disables this, with a button per input for manual selection. When used with a DMPS Lite switcher, switching can follow the last connected input or a routing priority, set through the switcher's web interface or control system programming.

Can it be configured on its own?

No. The HD-TX-4KZ-401 can be configured and controlled only when it is used with a DMPS Lite switcher. Configuration is done through the switcher's web interface, and control system programming and .AV Framework support are hosted by the switcher.

How is it powered?

It comes with a PW-2420RU power pack that supplies 24 VDC at 2.5 A from a 100 to 240 VAC input. When it is paired with an HD-RX-4K-210-C-E, the transmitter cannot provide power to that receiver, so power must be connected to the HD-RX-4K-210-C-E only.

How much is the Crestron HD-TX-4KZ-401?

Crestron asks its dealers to give the price of the HD-TX-4KZ-401 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the HD-TX-4KZ-401?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-TX-4KZ-401 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the HD-TX-4KZ-401 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-TX-4KZ-401 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the HD-TX-4KZ-401 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the HD-TX-4KZ-401 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
