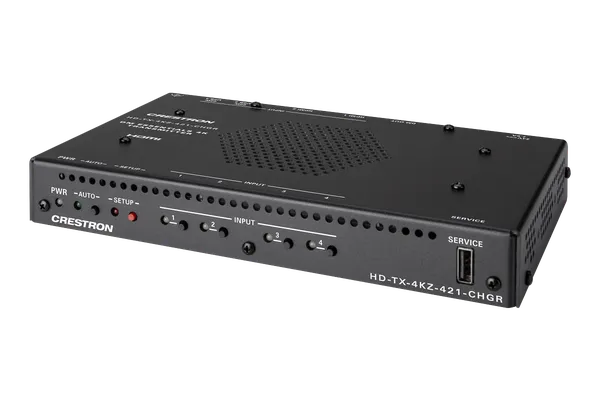

Crestron part number HD-TX-4KZ-421-CHGR
The Crestron HD-TX-4KZ-421-CHGR is a DM Essentials 4K60 4:4:4 transmitter and 4x1 auto-switcher with two HDMI inputs and two USB-C DisplayPort inputs. The USB-C inputs can also charge connected sources, and the selected signal is sent over CAT5e or higher cable to a DM Essentials receiver or DMPS Essentials switcher.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron HD-TX-4KZ-421-CHGR
The HDMI inputs accept DVI and Dual-Mode DisplayPort sources, and the USB-C inputs use DisplayPort Alt Mode. Video reaches 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision, with HDCP 2.3, EDID and CEC passed through. Range is up to 40 m (130 ft) for UHD and 4K or up to 70 m (230 ft) for 1080p, WUXGA and 2K.
Crestron names the HD-RXC-4KZ-101 and HD-RXCA-4KZ-101 as examples of supported receivers. The transmitter can be configured and controlled only with a DMPS Essentials switcher, which hosts its web configuration, control system programming and .AV Framework support. Switching among the four inputs can follow the last connected input or a routing priority, and an AUTO button turns automatic switching on or off.
The two USB-C inputs are labelled 60W USB INPUT 3-4, and the transmitter comes with a PW-2475DU power pack rated at 24 VDC and 7.5 A. A USB 2.0 SERVICE port handles firmware and configuration or hosts one TT-100 series cable caddy. The black metal chassis measures 30 mm high, 216 mm wide and 133 mm deep, with two brackets for freestanding, surface or single rack rail mounting.
Key features
- Two HDMI inputs and two USB-C DisplayPort Alt Mode inputs
- USB-C inputs can charge connected sources
- Automatic switching across all four inputs
- 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision, HDCP 2.3
- Up to 40 m for 4K, or 70 m for 1080p, WUXGA and 2K
- EDID and CEC pass-through
- PW-2475DU 24 VDC 7.5 A power pack included
HD-TX-4KZ-421-CHGR specifications
| Inputs | 2 x HDMI Type A (DVI and Dual-Mode DisplayPort compatible); 2 x USB-C, DisplayPort Alt Mode |
|---|---|
| Charging | USB-C inputs (labelled 60W USB INPUT 3-4) can charge connected AV sources |
| Output | DM Essentials (DM OUT, RJ-45, yellow, shielded) |
| Video | Up to 4K60 4:4:4; HDR10, HDR10+, Dolby Vision, Deep Color; HDCP 2.3 |
| Distance | Up to 40 m (130 ft) UHD and 4K; up to 70 m (230 ft) 1080p, WUXGA and 2K |
| Switching | Automatic (last connected input or routing priority); configured through a DMPS Essentials switcher |
| USB service | USB 2.0 Type-A for firmware, configuration or one TT-100 series cable caddy |
| Power | PW-2475DU power pack included (100-240 VAC in, 24 VDC 7.5 A out) |
| Mounting | Freestanding, surface or single rack rail; 2 mounting brackets included |
| Dimensions | Height 30 mm (1.20 in), width 216 mm (8.52 in), depth 133 mm (5.23 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| HD-TX-4KZ-421-CHGR | Standard | On request |
Where the HD-TX-4KZ-421-CHGR is used
Works with the HD-TX-4KZ-421-CHGR
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron HD-TX-4KZ-421-CHGR
What is the Crestron HD-TX-4KZ-421-CHGR?
It is a DM Essentials 4K60 4:4:4 transmitter and 4x1 auto-switcher with two HDMI inputs and two USB-C DisplayPort inputs. It switches between the four inputs and extends the selected source over a CAT5e or higher cable, and its USB-C inputs can charge connected sources.
Can the HD-TX-4KZ-421-CHGR charge a connected device?
Yes. The two USB-C inputs, labelled 60W USB INPUT 3-4, carry DisplayPort video and audio using DisplayPort Alt Mode and can also charge the connected AV sources. The transmitter is supplied with a PW-2475DU power pack rated at 24 VDC and 7.5 A.
Which receivers work with the HD-TX-4KZ-421-CHGR?
Its DM Essentials output must be connected to a DM Essentials input on a DM Essentials receiver or DMPS Essentials switcher. Crestron gives the HD-RXC-4KZ-101 and HD-RXCA-4KZ-101 as examples of supported 4K60 4:4:4 receivers.
Can it be configured without a DMPS Essentials switcher?
No. It can be configured and controlled only when it is used with a DMPS Essentials switcher. The switcher's web interface is used to configure it, and control system programming and .AV Framework support for the transmitter are hosted by the switcher.
How does input switching work?
Switching among the HDMI and USB-C inputs can happen automatically, based on the last connected input or on a routing priority set through the DMPS Essentials switcher. An AUTO button on the unit enables or disables automatic switching, with an LED showing when it is on.
How much is the Crestron HD-TX-4KZ-421-CHGR?
Crestron asks its dealers to give the price of the HD-TX-4KZ-421-CHGR directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the HD-TX-4KZ-421-CHGR?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-TX-4KZ-421-CHGR on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the HD-TX-4KZ-421-CHGR come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-TX-4KZ-421-CHGR develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the HD-TX-4KZ-421-CHGR in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the HD-TX-4KZ-421-CHGR without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
