Crestron DM-NVX-E760C AV over IP Encoder Card, DM Input

Crestron part number DM-NVX-E760C

The Crestron DM-NVX-E760C is a card format DM NVX encoder with a DM input, turning DM 8G+, DM Essentials and HDBaseT signals into 4K60 4:4:4 AV over IP streams. It occupies a rack-mountable card frame, bridging HDBaseT systems onto a standard Gigabit Ethernet network from the equipment rack.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

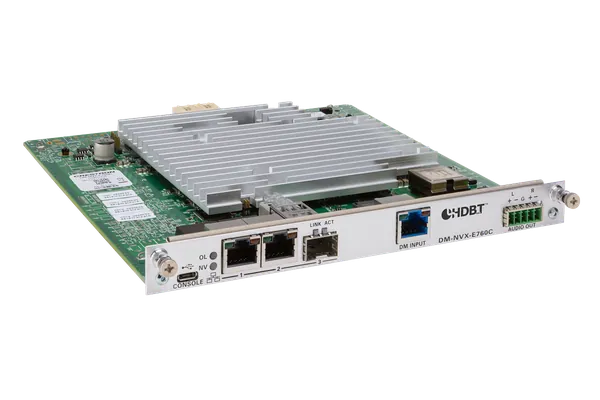

Crestron DM-NVX-E760C DM NVX 4K60 4:4:4 HDR Network AV Encoder Card with DM Input

About the Crestron DM-NVX-E760C

The DM input accepts DM 8G+ and HDBaseT signals with HDR10, Deep Color and 4K60 4:4:4, and DM Essentials signals at up to 4K60 4:2:0, including those from DM 8G+ and DM Essentials wall plate transmitters. The card streams at up to 4096x2160 at 60 Hz using Pixel Perfect Processing by default, or DM-NVX-D10, D20 and D200 Series streams, with HDCP 2.3, AES-128 and PKI protection.

The bit rate can be fixed between 200 and 950 Mbps, adaptive to the input resolution, or variable. Multichannel audio of up to 8-channel LPCM or HBR 7.1 travels in the stream, and the analogue output provides a balanced or unbalanced stereo line level feed for a local sound system or sound bar, with volume set from the web interface or a control system. Image preview is included.

As a card, the DM-NVX-E760C occupies a rack-mountable card frame rather than a standalone chassis. The DMF-CI-8 is an 8-slot, 2-space 19-inch chassis designed for DM-NVX-C and DMCF series cards, with any card in any slot, hot-swappable card servicing and a universal 100 to 240 V internal power supply. When replacing a card, match the part number and existing stream settings.

Key features

Card format encoder for a rack-mountable card frame
DM input for DM 8G+, HDBaseT and DM Essentials signals
Works with DM 8G+ and DM Essentials wall plate transmitters
HDBaseT certified
4K60 4:4:4 video with HDR10 over Gigabit Ethernet
Balanced or unbalanced analogue stereo output
Image preview

DM-NVX-E760C specifications

Form factor	Card for a rack-mountable card frame
DM input	DM 8G+ and HDBaseT with HDR10, Deep Color and 4K60 4:4:4; DM Essentials with 4K60 4:2:0
Video	Up to 4096x2160 at 60 Hz (DCI 4K60), 4:4:4 colour sampling, HDR10, Deep Color
Stream type	Pixel Perfect Processing (default) or DM-NVX-D10/D20/D200 Series
Bit rate	Fixed 200 to 950 Mbps (user specified), adaptive, or variable
Audio	Up to 8-channel LPCM or HBR 7.1; balanced or unbalanced analogue stereo output, 24-bit 48 kHz
Streaming	RTP, SDP; MPEG-2 transport stream; multicast via secure RTSP
Security	HDCP 2.3, AES-128, PKI; 802.1X, Active Directory credential management, TLS

Part numbers on this page

Part number	Version	Price	Add
DM-NVX-E760C	Standard	On request

Where the DM-NVX-E760C is used

Central racks bridging HDBaseT systems to AV over IP
Bringing DM 8G+ or DM Essentials wall plates onto a DM NVX network
High-density racks of DM NVX encoders
Enterprise and campus-wide 4K content distribution

Works with the DM-NVX-E760C

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NVX-E760C

What is the Crestron DM-NVX-E760C?

It is a DM NVX AV over IP encoder card with a DM input. It takes DM 8G+, DM Essentials and HDBaseT signals and streams them as 4K60 4:4:4 video with HDR10 over standard Gigabit Ethernet, and it occupies a rack-mountable card frame rather than a standalone chassis.

How does the DM-NVX-E760C differ from the DM-NVX-E760?

Both are 4K60 4:4:4 HDR10 encoders with a DM input, HDBaseT certification and image preview. The DM-NVX-E760C is a card that occupies a rack-mountable card frame. The DM-NVX-E760 is a standalone unit with integral mounting flanges, supplied with a PW-2420RU power pack and also able to run from PoE++ or UPOE.

What can connect to the DM input on the DM-NVX-E760C?

The DM input works with DM 8G+ output devices and DM Essentials transmitters, including DM 8G+ and DM Essentials wall plate transmitters. It accepts DM 8G+ and HDBaseT signals with HDR10, Deep Color and 4K60 4:4:4, and DM Essentials signals at up to 4K60 4:2:0.

Which chassis does the card fit?

It is a card for a rack-mountable card frame. The DMF-CI-8 is a 2-space 19-inch rack chassis designed to house up to eight DM-NVX-C or DMCF series cards in any slot, with hot-swappable card servicing, network setup for each card from the front panel and a universal internal power supply.

Which decoders work with the DM-NVX-E760C?

It works with DM NVX products that can function as decoders. Pixel Perfect Processing is the default stream type, and a DM-NVX-D10/D20/D200 Series stream type is available for those decoders. The bit rate can be fixed from 200 to 950 Mbps, adaptive or variable.

How much is the Crestron DM-NVX-E760C?

Crestron asks its dealers to give the price of the DM-NVX-E760C directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NVX-E760C?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NVX-E760C on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NVX-E760C come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NVX-E760C develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NVX-E760C in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NVX-E760C without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
