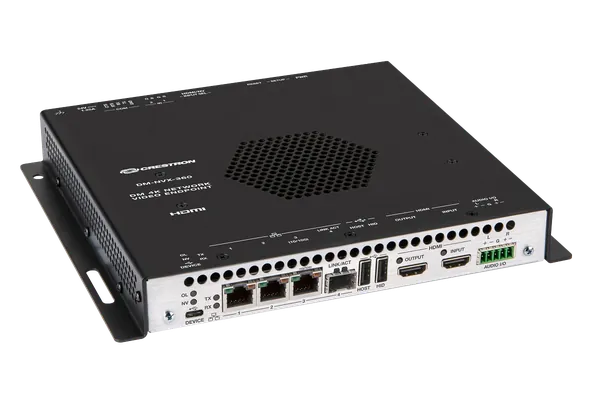

Crestron DM-NVX-360 4K60 AV over IP Encoder/Decoder

Crestron part number DM-NVX-360

The Crestron DM-NVX-360 is a DM NVX network AV encoder/decoder that sends 4K60 4:4:4 HDR video over standard Gigabit Ethernet. Each unit can be configured as either an encoder or a decoder, so the same model can be used at sources and displays across an AV over IP system.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron DM-NVX-360 DM NVX 4K60 4:4:4 HDR Network AV Encoder/Decoder

About the Crestron DM-NVX-360

As an encoder the DM-NVX-360 takes an HDMI source and streams it across the network. As a decoder it receives a stream and drives a display through its HDMI output, using a 4K60 4:4:4 scaler and a 2x1 switcher (HDMI or stream) with Crestron QuickSwitch HD. Video wall processing is also built in. The operating mode can be changed in under a minute from a control system, a web browser or the Setup button.

Video is supported up to 4096x2160 at 60 Hz with 4:4:4 colour sampling, HDR10, HDR10+, Dolby Vision and HDCP 2.3, and audio covers up to 8-channel LPCM or encoded HBR 7.1. Bit rate can be fixed between 200 and 950 Mbps, adaptive or variable. A balanced stereo analogue audio port can be set as an input or output for embedding or de-embedding, and AES67 transmit and receive, USB and KVM routing are supported.

Security includes 802.1X, Active Directory credential management, TLS and AES-128. Power comes from PoE+ (IEEE 802.3at Class 4), for example from a Crestron DM-PSU-ULTRA-MIDSPAN or a PoE+ switch, or from the optional PW-2412WU power pack (sold separately), and typical consumption is 20 W. The fan-cooled black metal chassis can be freestanding, surface mounted or fixed to a single rack rail, and measures 219 mm high, 236 mm wide and 32 mm deep.

Key features

4K60 4:4:4 video over standard Gigabit Ethernet
HDR10, HDR10+ and Dolby Vision, HDCP 2.3
Configurable as an encoder or a decoder
4K60 4:4:4 scaler and video wall processing
Analogue audio embedding or de-embedding, plus AES67
USB and KVM routing
802.1X, Active Directory, TLS and AES-128 security
PoE+ powered, or 24 VDC from the PW-2412WU (sold separately)

DM-NVX-360 specifications

Video	Up to 4096x2160 at 60 Hz, 4:4:4; HDR10, HDR10+, Dolby Vision, Deep Color
Connections	1 x HDMI input (Dual-Mode DisplayPort and DVI compatible); 1 x HDMI output (DVI compatible); balanced stereo analogue audio input or output; optional fibre connectivity
Modes	Encoder or decoder, changed in under a minute via control system, web browser or Setup button
Decoder features	4K60 4:4:4 scaler with motion-adaptive deinterlacing and frame rate conversion; 2x1 switcher (HDMI, stream) with QuickSwitch HD; video wall processing
Audio	Up to 8-channel LPCM or encoded HBR 7.1; 2-channel LPCM; AES67 transmit and receive
Streaming	RTP, SDP; MPEG-2 transport stream; multicast via secure RTSP; fixed 200 to 950 Mbps, adaptive or variable bit rate
Security	HDCP 2.3, AES-128, PKI; 802.1X, Active Directory credential management, TLS
Stream compatibility	Encoder: Pixel Perfect Processing or DM-NVX-D10/D20/D200 series streams; decoder: Pixel Perfect Processing or DM-NVX-E10/E20 series
Power	PoE+ IEEE 802.3at Type 2 Class 4 (25.5 W), or 24 VDC from PW-2412WU (sold separately); 20 W typical
Mounting and size	Freestanding, surface or single rack rail; fan-cooled metal chassis; height 219 mm (8.61 in), width 236 mm (9.27 in), depth 32 mm (1.25 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NVX-360	Standard	On request

Where the DM-NVX-360 is used

Enterprise AV over IP systems
Routing 4K HDR sources to many displays over the network
Video walls driven from networked sources
Replacing an encoder or decoder in an existing DM NVX system
USB and KVM routing between rooms

Works with the DM-NVX-360

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NVX-360

What is the Crestron DM-NVX-360?

It is a DM NVX 4K60 4:4:4 HDR network AV encoder/decoder. It transports video from an HDMI source over standard Gigabit Ethernet and can be configured as either an encoder or a decoder, with scaling, video wall processing, AES67 audio and USB and KVM routing built in.

Can the DM-NVX-360 be used as both an encoder and a decoder?

It can be configured as either one. The operating mode can be changed in less than a minute through a control system or web browser, or with the onboard Setup button. The scaler and the 2x1 switcher, with Crestron QuickSwitch HD, are used in decoder mode.

How is the DM-NVX-360 powered?

It is powered by PoE+ to IEEE 802.3at Type 2 Class 4 (25.5 W), and Crestron lists it as compatible with the DM-PSU-ULTRA-MIDSPAN, a PoE+ compliant switch or third-party PoE+ equipment. Alternatively, the PW-2412WU 24 VDC power pack can be used, sold separately. Typical consumption is 20 W.

Which DM NVX streams is it compatible with?

As an encoder it uses Pixel Perfect Processing by default, or can produce streams for the DM-NVX-D10, D20 and D200 series. As a decoder it handles Pixel Perfect Processing streams or streams from the DM-NVX-E10 and E20 series. Check the existing endpoints when adding units to a system.

What audio options does it have?

It carries multichannel audio up to 8-channel LPCM or encoded HBR 7.1, as well as 2-channel LPCM, and supports AES67 transmit and receive. A balanced stereo analogue audio port can be configured as an input, to embed a separate source, or as an output for de-embedding.

How much is the Crestron DM-NVX-360?

Crestron asks its dealers to give the price of the DM-NVX-360 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NVX-360?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NVX-360 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NVX-360 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NVX-360 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NVX-360 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NVX-360 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
