Crestron DM-NVX-E30 4K60 4:4:4 HDR AV over IP Encoder

Crestron part number DM-NVX-E30

The Crestron DM-NVX-E30 is a DM NVX encoder that sends an HDMI source at up to 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision over standard Gigabit Ethernet. It works with DM NVX products that can act as decoders, and adds image preview and a test pattern generator.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

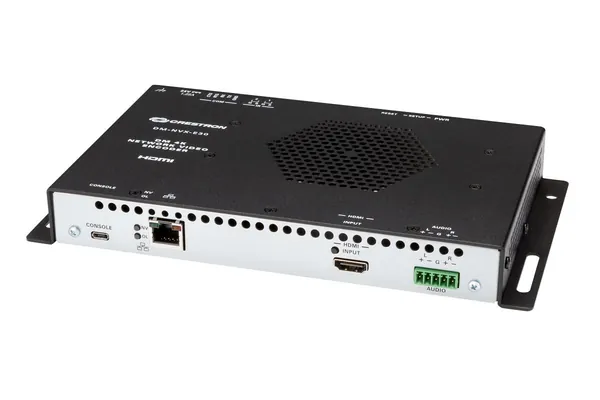

Crestron DM-NVX-E30 DM NVX 4K60 4:4:4 HDR Network AV Encoder

About the Crestron DM-NVX-E30

The DM-NVX-E30 encodes up to 4096x2160 at 60 Hz with 4:4:4 colour sampling and Deep Color, from an HDMI input that is Dual-Mode DisplayPort and DVI compatible. By default it uses Pixel Perfect Processing, and it can also produce DM-NVX-D10, D20 and D200 Series streams for those decoders. Standard switches and CAT5e UTP wiring carry the video with no noticeable latency or loss of quality.

The bit rate can be fixed between 200 and 950 Mbps, adaptive to the input resolution, or variable, set from the web interface or a control system. Audio covers up to 8-channel LPCM or HBR 7.1 surround, and the analogue output provides a stereo line level feed for a local sound system or sound bar, with volume adjustable from a control system or web browser. A test pattern generator and image preview are also built in.

Power is PoE+ (IEEE 802.3at Type 2 Class 4) from the Crestron DM-PSU-ULTRA-MIDSPAN or a PoE+ compliant switch, or the optional PW-2412WU power pack, with 15 W typical consumption. The fan-cooled black metal chassis has integral mounting flanges for freestanding, surface or single rack rail mounting, and measures 138 mm high, 236 mm wide and 30 mm deep. Security includes HDCP 2.3, 802.1X, Active Directory credential management, TLS and AES-128.

Key features

4K60 4:4:4 video over standard Gigabit Ethernet
HDR10, HDR10+ and Dolby Vision support
Pixel Perfect Processing technology
One HDMI input, Dual-Mode DisplayPort and DVI compatible
Fixed, adaptive or variable bit rate
Analogue stereo output with adjustable volume
Image preview and test pattern generator
PoE+ powered, or PW-2412WU power pack (sold separately)

DM-NVX-E30 specifications

Stream type	Pixel Perfect Processing (default) or DM-NVX-D10/D20/D200 Series
Video input	1 HDMI with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4 (Dual-Mode DisplayPort and DVI compatible)
Resolutions	Up to 4096x2160 at 60 Hz; 4K at 30 Hz 4:4:4 (12 bit) or 60 Hz 4:4:4 (8 bit); 1920x1080 at up to 240 Hz; 1080i
Bit rate	Fixed 200 to 950 Mbps (user specified), adaptive, or variable
Audio	HDMI input; up to 8-channel LPCM or encoded HBR 7.1; analogue stereo line level output
Streaming	RTP, SDP; MPEG-2 transport stream; multicast via secure RTSP
Security	HDCP 2.3, AES-128, PKI; 802.1X, Active Directory credential management, TLS
Power	PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W) or PW-2412WU 24 VDC power pack (sold separately); 15 W typical
Mounting	Freestanding, surface mount or single rack rail; black metal chassis, integral flanges, fan cooled
Dimensions	Height 138 mm (5.41 in), width 236 mm (9.27 in), depth 30 mm (1.15 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NVX-E30	Standard	On request

Where the DM-NVX-E30 is used

HDR sources sent to DM NVX decoders
Enterprise and campus-wide 4K content distribution
Sources that also feed a local sound system or sound bar
Systems that include DM-NVX-D20 or DM-NVX-D200 decoders

Works with the DM-NVX-E30

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NVX-E30

What is the Crestron DM-NVX-E30?

It is a DM NVX AV over IP encoder that transmits 4K60 4:4:4 video over standard Gigabit Ethernet with HDR10, HDR10+ and Dolby Vision support. It has one HDMI input and an analogue stereo audio output, and includes image preview and a test pattern generator.

Which decoders work with the DM-NVX-E30?

It works with DM NVX products that can function as decoders. By default it streams using Pixel Perfect Processing, and it can instead produce a DM-NVX-D10/D20/D200 Series stream for those decoders. Streams use RTP and SDP with multicast via secure RTSP.

What is the difference between the DM-NVX-E30 and the DM-NVX-E20?

The DM-NVX-E30 encodes 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision, supports a variable bit rate and includes image preview and a test pattern generator. The DM-NVX-E20 handles 4K60 4:2:0 and 4K30 4:4:4 without HDR listed, and runs on PoE rather than PoE+.

How is the DM-NVX-E30 powered?

It is powered by PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W) from the Crestron DM-PSU-ULTRA-MIDSPAN or a PoE+ compliant Ethernet switch. The optional PW-2412WU power pack, sold separately, supplies 1.25 A at 24 VDC as an alternative. Typical consumption is 15 W.

What does the analogue audio output do?

The DM-NVX-E30 de-embeds audio to an analogue output that provides a stereo line level signal for a local sound system or sound bar. The output volume can be adjusted from a control system or a web browser, while the stream itself carries up to 8-channel LPCM or HBR 7.1.

How much is the Crestron DM-NVX-E30?

Crestron asks its dealers to give the price of the DM-NVX-E30 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NVX-E30?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NVX-E30 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NVX-E30 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NVX-E30 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NVX-E30 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NVX-E30 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
