Crestron DM-NVX-D20 4K60 4:2:0 AV over IP Decoder

Crestron part number DM-NVX-D20

The Crestron DM-NVX-D20 is a compact DM NVX decoder that receives video of up to 4K60 4:2:0, including 4K30 4:4:4, over standard Gigabit Ethernet. It is designed to pair with DM-NVX-E20 or DM-NVX-E10 encoders and feeds a display through one HDMI output, with analogue audio and PoE power.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

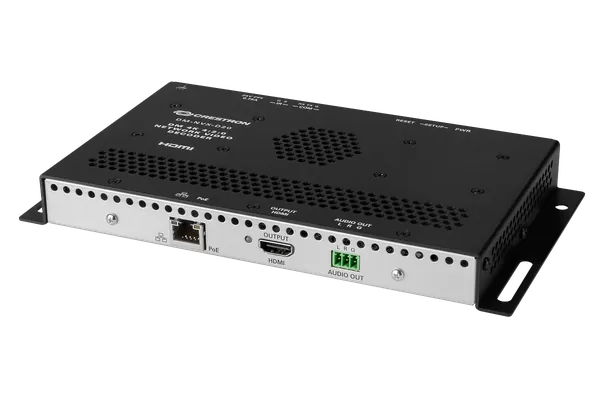

Crestron DM-NVX-D20 DM NVX 4K60 4:2:0 Network AV Decoder

About the Crestron DM-NVX-D20

The DM-NVX-D20 decodes streams from DM-NVX-E20 and E10 Series encoders by default, and can also receive from DM NVX 4K60 4:4:4 encoders when they send resolutions the D20 supports. Its HDMI output (DVI compatible) handles Deep Color and 4K60 4:2:0, with common resolutions including 4K at 30 Hz 4:4:4 and 1080p60 4:4:4 at 12 bit. Streams are protected with HDCP 2.3, AES-128 and PKI.

Audio leaves through HDMI and an analogue stereo output, with multichannel formats of up to 8-channel LPCM or HBR 7.1 surround, including Dolby Atmos and DTS HD formats. The analogue output volume adjusts from -80 to +20 dB. AES67 audio can be embedded and de-embedded, and the unit offers 2-way RS-232 at up to 115.2k baud, 1-way IR or serial, and CEC for device control.

Power comes from PoE (IEEE 802.3af Type 1 Class 3) via an IEEE 802.3af compliant Ethernet switch or PoE PSE, or from the optional PW-2407WU power pack, and typical consumption is 8.6 W. The black metal chassis is 128 mm high, 230 mm wide and 26 mm deep, with mounting flanges included for freestanding, surface or single rack rail mounting.

Key features

Receives up to 4K60 4:2:0 over Gigabit Ethernet, 4K30 4:4:4 included
Designed for DM-NVX-E20 and DM-NVX-E10 encoders
One HDMI output plus analogue stereo audio output
7.1 surround sound and AES67 audio embedding and de-embedding
HDCP 2.3 with 802.1X, Active Directory credential management, TLS and AES-128
RS-232, IR/serial and CEC device control
PoE powered, 8.6 W typical

DM-NVX-D20 specifications

Video output	1 HDMI (DVI compatible) with Deep Color and 4K60 4:2:0 support
Resolutions	4096x2160 and 3840x2160 at 30 Hz 4:4:4 (8 bit) or 60 Hz 4:2:0 (8 bit); 2560x1600 at 60 Hz; 1920x1080 at 60 Hz 4:4:4 (12 bit)
Stream type	DM-NVX-E20/E10 Series by default; 4K60 4:4:4 encoders at supported resolutions
Audio	HDMI and analogue stereo out; up to 8-channel LPCM or HBR 7.1; AES67 24-bit 48 kHz
Analogue audio	20 Hz to 20 kHz ±0.5 dB; S/N >95 dB; THD+N <0.0005% at 1 kHz; volume -80 to +20 dB
Control	RS-232 2-way up to 115.2k baud; IR up to 1.1 MHz or 1-way serial up to 19.2k baud; HDMI CEC
Network	100/1000 Mbps Ethernet; multicast via secure RTSP; HDCP 2.3, AES-128, PKI
Power	PoE (IEEE 802.3af Type 1 Class 3, 12.95 W) or PW-2407WU 24 VDC power pack (sold separately); 8.6 W typical
Mounting	Freestanding, surface or single rack rail (mounting flanges included); black metal chassis
Dimensions	Height 128 mm (5.04 in), width 230 mm (9.05 in), depth 26 mm (1.00 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NVX-D20	Standard	On request

Where the DM-NVX-D20 is used

Displays receiving from DM-NVX-E20 encoders
Enterprise and campus-wide content distribution
Screens that also need a stereo analogue audio feed
Meeting rooms where the display is controlled over RS-232 or IR

Works with the DM-NVX-D20

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NVX-D20

What is the Crestron DM-NVX-D20?

It is a compact DM NVX AV over IP decoder that receives video of up to 4K60 4:2:0, including 4K30 4:4:4, over standard Gigabit Ethernet. It has one HDMI output, an analogue audio output, AES67 audio, RS-232 and IR control, and is powered by PoE.

Which encoders does the DM-NVX-D20 work with?

It is designed for use with the DM-NVX-E20 or DM-NVX-E10 and supports other DM NVX products that can act as encoders. By default it takes DM-NVX-E20/E10 Series streams, and it can receive from 4K60 4:4:4 encoders when they use resolutions the DM-NVX-D20 supports.

Does the DM-NVX-D20 support 4K60 4:4:4 or HDR?

Its output supports 4K60 at 4:2:0 and 4K30 at 4:4:4, with Deep Color. HDR is not listed in its specifications. For 4K60 4:4:4 HDR decoding, Crestron lists the DM-NVX-D30, which supports HDR10, HDR10+ and Dolby Vision.

How is the DM-NVX-D20 powered?

It is powered by PoE (IEEE 802.3af Type 1 Class 3, 12.95 W) from an IEEE 802.3af compliant Ethernet switch or a third-party PoE PSE. It can also use the PW-2407WU power pack, sold separately, which supplies 0.75 A at 24 VDC. Typical consumption is 8.6 W.

Can the D20 control the display?

Yes. It has 2-way RS-232 for device control and monitoring at up to 115.2k baud, and a 1-way port for IR up to 1.1 MHz or TTL/RS-232 serial up to 19.2k baud, driven via a control system. The HDMI output also supports CEC and EDID.

How much is the Crestron DM-NVX-D20?

Crestron asks its dealers to give the price of the DM-NVX-D20 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NVX-D20?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NVX-D20 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NVX-D20 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NVX-D20 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NVX-D20 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NVX-D20 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
