Crestron DM-NVX-E20 4K60 4:2:0 AV over IP Encoder

Crestron part number DM-NVX-E20

The Crestron DM-NVX-E20 is a compact DM NVX encoder that sends HDMI sources at up to 4K60 4:2:0, including 4K30 4:4:4, over standard Gigabit Ethernet. It is designed to feed DM-NVX-D20 and DM-NVX-D200 decoders or other DM NVX products that can function as decoders.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

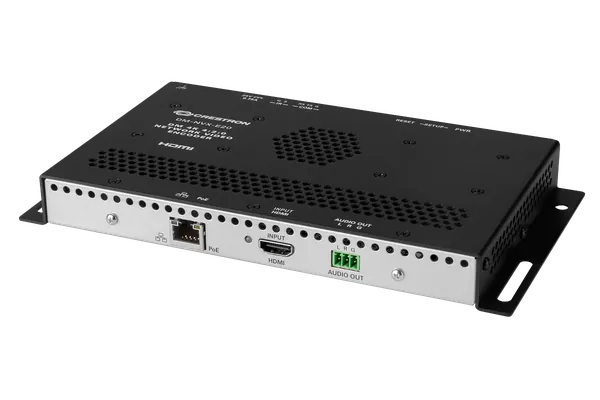

Crestron DM-NVX-E20 DM NVX 4K60 4:2:0 Network AV Encoder

About the Crestron DM-NVX-E20

The DM-NVX-E20 takes one HDMI input with Deep Color and 4K60 4:2:0 support, compatible with Dual-Mode DisplayPort and DVI sources. Common resolutions include 4K at 30 Hz 4:4:4, 2560x1600 at 60 Hz and 1080p60 at 4:4:4 12 bit. The bit rate can be fixed between 200 and 950 Mbps or set to adaptive, where the encoder chooses a rate based on the input resolution.

Audio handling covers multichannel sources up to 8-channel LPCM or HBR 7.1 surround, including Dolby Atmos and DTS HD formats, with AES67 embedding and de-embedding and an analogue stereo output whose volume adjusts from -80 to +20 dB. For device control it has 2-way RS-232 at up to 115.2k baud and 1-way IR or serial via a control system, and the HDMI port supports CEC.

Power is PoE (IEEE 802.3af Type 1 Class 3) from an 802.3af compliant switch or PSE, or the optional PW-2407WU power pack, with 8.6 W typical consumption. The black metal chassis is 128 mm high, 230 mm wide and 26 mm deep, and includes mounting flanges for freestanding, surface or single rack rail mounting. Security includes 802.1X, Active Directory credential management, TLS and AES-128 with PKI.

Key features

Sends up to 4K60 4:2:0 over Gigabit Ethernet, 4K30 4:4:4 included
One HDMI input, Dual-Mode DisplayPort and DVI compatible
Works with DM-NVX-D20, DM-NVX-D200 and other DM NVX decoders
Fixed or adaptive bit rate
7.1 surround sound, AES67 and analogue audio output
RS-232, IR/serial and CEC device control
HDCP 2.3 with 802.1X, Active Directory credential management, TLS and AES-128
PoE powered, 8.6 W typical

DM-NVX-E20 specifications

Video input	1 HDMI with Deep Color and 4K60 4:2:0 support (Dual-Mode DisplayPort and DVI compatible)
Resolutions	4096x2160 and 3840x2160 at 30 Hz 4:4:4 (8 bit) or 60 Hz 4:2:0 (8 bit); 2560x1600 at 60 Hz; 1920x1080 at 60 Hz 4:4:4 (12 bit)
Bit rate	Fixed 200 to 950 Mbps, or adaptive based on input resolution
Audio	Up to 8-channel LPCM or HBR 7.1; AES67 24-bit 48 kHz; analogue stereo output
Analogue audio	20 Hz to 20 kHz ±0.5 dB; S/N >95 dB; THD+N <0.0005% at 1 kHz; volume -80 to +20 dB
Control	RS-232 2-way up to 115.2k baud; IR up to 1.1 MHz or 1-way serial up to 19.2k baud; HDMI CEC
DM NVX protocols	HDCP 2.3, AES-128 with PKI, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022
Power	PoE (IEEE 802.3af Type 1 Class 3, 12.95 W) or PW-2407WU 24 VDC power pack (sold separately); 8.6 W typical
Mounting	Freestanding, surface or single rack rail (mounting flanges included); black metal chassis
Dimensions	Height 128 mm (5.04 in), width 230 mm (9.05 in), depth 26 mm (1.00 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NVX-E20	Standard	On request

Where the DM-NVX-E20 is used

HDMI sources sent to DM-NVX-D20 or DM-NVX-D200 decoders
Enterprise and campus-wide content distribution
Sources controlled over RS-232 or IR
Networks powered by standard PoE switches

Works with the DM-NVX-E20

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NVX-E20

What is the Crestron DM-NVX-E20?

It is a compact DM NVX AV over IP encoder that transmits video at up to 4K60 4:2:0, including 4K30 4:4:4, over standard Gigabit Ethernet. It has one HDMI input, an analogue audio output, AES67 audio, RS-232 and IR control, and is powered by PoE.

Which decoders work with the DM-NVX-E20?

It is intended for use with the DM-NVX-D20, the DM-NVX-D200 or other DM NVX products that can function as decoders. Streams are sent using RTP, SDP and multicast via secure RTSP, with HDCP 2.3 and AES-128 content encryption with PKI authentication.

What is the difference between the DM-NVX-E20 and the DM-NVX-E20-2G?

Both are 4K60 4:2:0 DM NVX encoders with one HDMI input and PoE. The DM-NVX-E20 is a compact box with mounting flanges and an analogue audio output. The DM-NVX-E20-2G is a wall plate encoder for a 2-gang electrical box, with an analogue audio input instead, and its faceplate is sold separately.

How is the DM-NVX-E20 powered?

It is powered by PoE (IEEE 802.3af Type 1 Class 3, 12.95 W) from an IEEE 802.3af compliant Ethernet switch or a third-party PoE PSE. The PW-2407WU power pack, sold separately, is an alternative that supplies 0.75 A at 24 VDC. Typical consumption is 8.6 W.

Does the DM-NVX-E20 support HDR or 4K60 4:4:4?

It supports 4K60 at 4:2:0 and 4K30 at 4:4:4, with Deep Color. HDR is not listed in its specifications. Crestron's DM-NVX-E30 encoder handles 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision if a system needs those formats.

How much is the Crestron DM-NVX-E20?

Crestron asks its dealers to give the price of the DM-NVX-E20 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NVX-E20?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NVX-E20 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NVX-E20 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NVX-E20 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NVX-E20 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NVX-E20 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
