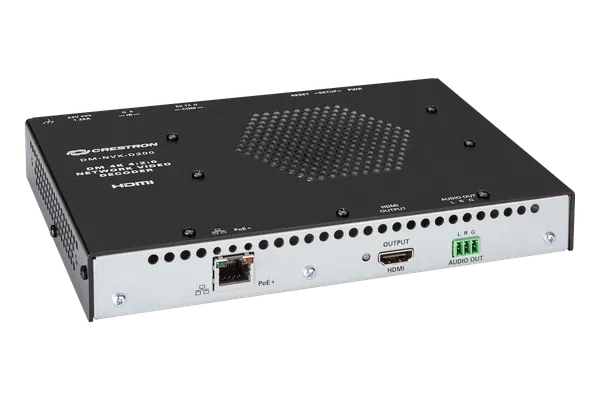

Crestron DM-NVX-D200 4K60 AV over IP Decoder with Scaler

Crestron part number DM-NVX-D200

The Crestron DM-NVX-D200 is a compact DM NVX decoder that receives up to 4K60 4:2:0 video, including 4K30 4:4:4, over standard Gigabit Ethernet. Its HDMI output has a 4K60 video scaler and video wall processing, and it is designed to pair with DM-NVX-E20 or DM-NVX-E10 encoders.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron DM-NVX-D200 DM NVX 4K60 4:2:0 Network AV Decoder with Scaler

About the Crestron DM-NVX-D200

The DM-NVX-D200 takes DM-NVX-E20 and E10 Series streams by default and can also receive from DM NVX 4K60 4:4:4 encoders at the resolutions it supports. Common input and scaler output resolutions include 4K at 60 Hz 4:2:0 or 30 Hz 4:4:4, 2560x1600 at 60 Hz and 1080p60 at 4:4:4. The HDMI output is DVI compatible and supports Deep Color, HDCP 2.3, EDID and CEC.

Audio is available on HDMI and on an analogue stereo output, with multichannel formats up to 8-channel LPCM or HBR 7.1 surround and AES67 embedding or de-embedding. The analogue output volume adjusts from -80 to +20 dB. For room control it offers 2-way RS-232 at up to 115.2k baud and 1-way IR or serial via a control system, plus secure web-based management.

Unlike the DM-NVX-D20, it is powered by PoE+ (IEEE 802.3at Type 2 Class 4) from a PoE+ switch or the Crestron DM-PSU-ULTRA-MIDSPAN, or by the optional PW-2412WU power pack, and typical consumption is 11.9 W. The black metal chassis is 138 mm high, 213 mm wide without flanges and 31 mm deep, and can be freestanding, surface mounted or attached to a single rack rail.

Key features

Receives up to 4K60 4:2:0 over Gigabit Ethernet, 4K30 4:4:4 included
HDMI output with 4K60 4:2:0 video scaler
Video wall processing
Designed for DM-NVX-E20 and DM-NVX-E10 encoders
Analogue audio de-embedding and 7.1 surround sound
AES67 audio embedding or de-embedding
HDCP 2.3 with 802.1X, Active Directory credential management, TLS and AES-128
PoE+ powered, 11.9 W typical

DM-NVX-D200 specifications

Video output	1 HDMI (DVI compatible) with 4K60 4:2:0 video scaler and Deep Color
Resolutions	4096x2160 and 3840x2160 at 30 Hz 4:4:4 (8 bit) or 60 Hz 4:2:0 (8 bit); 2560x1600 at 60 Hz; 1920x1080 at 60 Hz 4:4:4 (12 bit)
Stream type	DM-NVX-E20/E10 Series by default; 4K60 4:4:4 encoders at supported resolutions
Audio	HDMI and analogue stereo out; up to 8-channel LPCM or HBR 7.1; AES67 24-bit 48 kHz
Analogue audio	20 Hz to 20 kHz ±0.5 dB; S/N >95 dB; THD+N <0.0005% at 1 kHz; volume -80 to +20 dB
Control	RS-232 2-way up to 115.2k baud; IR up to 1.1 MHz or 1-way serial up to 19.2k baud; HDMI CEC
Network	100/1000 Mbps Ethernet; multicast via secure RTSP; HDCP 2.3, AES-128, PKI
Power	PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W) or PW-2412WU 24 VDC power pack (sold separately); 11.9 W typical
Mounting	Freestanding, surface or single rack rail (mounting flanges included); black metal chassis
Dimensions	Height 138 mm (5.41 in), width 213 mm (8.38 in) without flanges, depth 31 mm (1.20 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NVX-D200	Standard	On request

Where the DM-NVX-D200 is used

Displays that need scaled video from DM-NVX-E20 encoders
Video walls built from multiple decoders
Enterprise and campus-wide content distribution
Rooms that take stereo analogue audio from the decoder

Works with the DM-NVX-D200

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NVX-D200

What is the Crestron DM-NVX-D200?

It is a compact DM NVX AV over IP decoder that receives up to 4K60 4:2:0, including 4K30 4:4:4, over standard Gigabit Ethernet. Its HDMI output includes a 4K60 video scaler and video wall processing, and it adds analogue audio, AES67 audio and RS-232 and IR control.

What is the difference between the DM-NVX-D200 and the DM-NVX-D20?

Both receive up to 4K60 4:2:0 from DM-NVX-E20 or E10 encoders. The DM-NVX-D200 adds a 4K60 video scaler on its HDMI output and video wall processing, and it is powered by PoE+ with 11.9 W typical consumption. The DM-NVX-D20 has no scaler listed and uses PoE (IEEE 802.3af) at 8.6 W typical.

Which encoders work with the DM-NVX-D200?

It is designed for use with the DM-NVX-E20 or DM-NVX-E10 and supports other DM NVX products that can function as encoders. By default it receives DM-NVX-E20/E10 Series streams, and it can take streams from 4K60 4:4:4 encoders when they use resolutions that the DM-NVX-D200 supports.

How is the DM-NVX-D200 powered?

It takes PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W) from the Crestron DM-PSU-ULTRA-MIDSPAN or a PoE+ compliant Ethernet switch. The optional PW-2412WU power pack, sold separately, supplies 1.25 A at 24 VDC instead. Typical power consumption is 11.9 W.

What are the physical details of the D200?

It has a black metal chassis vented on the top, front, rear and sides, and comes with mounting flanges for freestanding, surface or single rack rail mounting. It measures 138 mm high, 213 mm wide without the flanges attached and 31 mm deep.

How much is the Crestron DM-NVX-D200?

Crestron asks its dealers to give the price of the DM-NVX-D200 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NVX-D200?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NVX-D200 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NVX-D200 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NVX-D200 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NVX-D200 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NVX-D200 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
