Crestron DM-EXT-2011-2G USB-C Wall Plate Extender Kit

Crestron part number DM-EXT-2011-2G-B KIT

The Crestron DM-EXT-2011-2G KIT pairs a 2-gang wall plate transmitter with a USB-C input and a surface or rack mounted HDMI receiver, extending video and USB 2.0 over one CATx cable. It supports 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision, and the wall plate comes in black or white.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

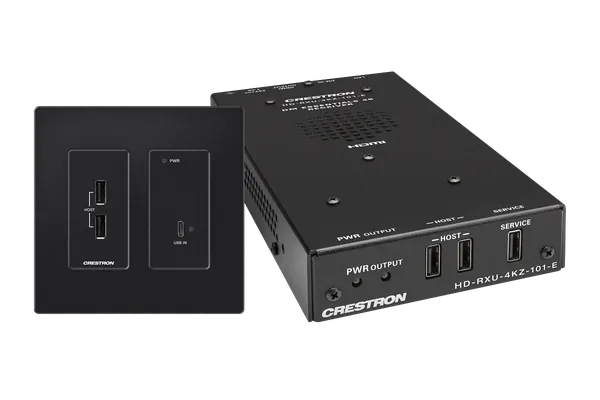

Crestron DM-EXT-2011-2G 4K60 4:4:4 DM Essentials Transmitter Receiver Pair for USB-C DisplayPort, and USB 2.0 Signal Extension over CATx Cable, Wall Plate

About the Crestron DM-EXT-2011-2G

The kit contains the HD-TXU-4KZ-111-2G wall plate transmitter and the HD-RXU-4KZ-101-E receiver. A source plugs into the wall plate's USB-C port, which accepts DisplayPort Alt Mode video and USB 2.0 data, and the receiver's HDMI output feeds a display, projector or codec. The two units are linked by a CAT5e or higher twisted pair cable.

Extension distance is up to 40 m (130 ft) for UHD and 4K signals, or 70 m (230 ft) for 1080p, WUXGA and 2K. Video is supported up to 4K60 with 4:4:4 colour sampling at 8 bit, with HDR10, HDR10+, Dolby Vision and Deep Color. EDID and HDCP 2.3 are managed and CEC is passed through. USB 2.0 is extended at up to 300 Mbps, and both units have two USB Type-A host ports for peripherals such as mice and keyboards.

The PW-2420RU power pack comes with the receiver and powers both units, so no power pack is supplied for the wall plate. The transmitter has a metal housing and bracket with a black or white polycarbonate front overlay, and fits a 2-gang or larger electrical box or plaster ring 51 mm (2 in) deep, which is not included. The receiver has a black metal chassis with two mounting flanges for surface or rack rail mounting.

Key features

2-gang wall plate transmitter in black or white
USB-C input with DisplayPort Alt Mode and USB 2.0 data
HDMI output at up to 4K60 4:4:4
HDR10, HDR10+ and Dolby Vision support
USB 2.0 extension at up to 300 Mbps
Up to 40 m for 4K, or 70 m for 1080p, WUXGA and 2K
EDID and HDCP 2.3 management, CEC pass-through
Receiver's PW-2420RU power pack powers both units

DM-EXT-2011-2G specifications

Kit contents	HD-TXU-4KZ-111-2G wall plate transmitter, HD-RXU-4KZ-101-E receiver, PW-2420RU power pack
Video input	DisplayPort over USB-C (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4
Video output	HDMI (DVI compatible) with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4
Resolutions	4096x2160 and 3840x2160 at 60 Hz 4:4:4 8 bit or 4:2:2 12 bit, at 30 Hz 4:4:4 12 bit; 1920x1080 at 60 Hz 4:4:4 12 bit
Extension distance	CAT5e or higher: up to 40 m (130 ft) for UHD and 4K; up to 70 m (230 ft) for 1080p, WUXGA and 2K
Copy protection	HDCP 2.3; EDID management; CEC pass-through
USB	USB 2.0 up to 300 Mbps; 2 USB Type-A host ports on each unit; USB service port on the receiver
Power	PW-2420RU power pack with the receiver (100-240 VAC in, 24 VDC out) powers both units
Transmitter mounting	2-gang (or larger) electrical box or plaster ring 51 mm (2 in) deep, not included; metal housing with black or white polycarbonate overlay
Receiver mounting	Surface or rack rail mount; metal chassis, black finish, 2 mounting flanges

Part numbers on this page

Part number	Version	Price	Add
DM-EXT-2011-2G-B KIT	Black	On request
DM-EXT-2011-2G-W KIT	White	On request

Where the DM-EXT-2011-2G is used

Meeting rooms with a USB-C connection at the wall
Classrooms sending 4K HDR video to a display or projector
Extending USB peripherals along with the video
Replacing a black or white USB-C wall plate transmitter

Works with the DM-EXT-2011-2G

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-EXT-2011-2G

What is in the DM-EXT-2011-2G KIT?

The kit contains an HD-TXU-4KZ-111-2G 2-gang wall plate transmitter, an HD-RXU-4KZ-101-E receiver and a PW-2420RU power pack. The wall plate takes video and USB 2.0 from a USB-C DisplayPort source, and the receiver outputs HDMI at up to 4K60 4:4:4 over one CATx cable.

What is the difference between the DM-EXT-2011-2G-B KIT and DM-EXT-2011-2G-W KIT?

The difference is the colour of the wall plate transmitter's front overlay: the -B kit is black and the -W kit is white. Both kits have the same receiver, power pack, video performance and extension distances, so choose the colour that suits the room.

How is the wall plate powered?

The PW-2420RU power pack is included with the receiver and powers both units. It takes 100 to 240 VAC and supplies 24 VDC. No separate power pack is included for the 2-gang wall plate transmitter.

What does the wall plate transmitter mount in?

The HD-TXU-4KZ-111-2G mounts in a 2-gang or larger electrical box, or a plaster ring, 51 mm (2 in) deep. The box or ring is not included. It has a metal housing and bracket with a black or white polycarbonate front overlay. When replacing a wall plate, check the existing box against this requirement.

Does the DM-EXT-2011-2G support 4K HDR?

Yes. It supports 4K60 with 4:4:4 colour sampling at 8 bit, or 4:2:2 at 12 bit, with HDR10, HDR10+, Dolby Vision and Deep Color. It reaches up to 40 m (130 ft) for UHD and 4K signals, and up to 70 m (230 ft) for 1080p, WUXGA and 2K.

How much is the Crestron DM-EXT-2011-2G?

Crestron asks its dealers to give the price of the DM-EXT-2011-2G directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-EXT-2011-2G?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-EXT-2011-2G on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-EXT-2011-2G come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-EXT-2011-2G develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-EXT-2011-2G in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-EXT-2011-2G without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
