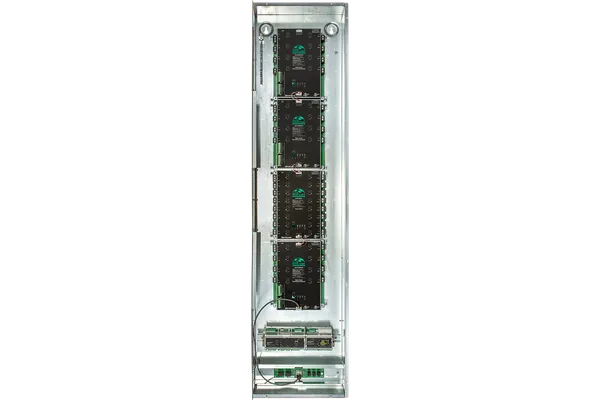

Crestron CL-SPACEBUILDER-GLEX-FT 42 Zone Feed-Through Lighting Panel

It is a SpaceBuilder lighting control system supplied as a configured feed-through panel. It controls up to 42 lighting zones and is designed for very large spaces without accessible ceilings, such as auditoriums, warehouses, sports venues and large car parks.

Both have a hinged cover. The GLEX-FT-56-HC provides up to 3 module spaces and measures 1,007 mm high, 409 mm wide and 113 mm deep. The GLEX-FT-84-HC provides up to 5 module spaces and measures 1,594 mm high, 384 mm wide and 125 mm deep.

Dimming is handled by the GLXP-DIMFLV8-LP and GLXX-2DIM8 modules, and switching by the GLXP-SW16-LP and GLXP-HSW12-LP. The system supports 2-wire forward phase dimming, multizone switching and 100K/1,000K cycle switching, at 120 or 277 VAC.

Yes. A DIN-CENCN-2-POE Ethernet uplink communicates with an external control system, which makes the system scalable. The panel's own processor is a DIN-AP4 with a DIN-PWS60 power supply, and emergency or life safety zones can be configured.

It is a finish kit that Crestron suggests combining with this SpaceBuilder panel to complete it. The panel itself is a NEMA 1 metal enclosure suitable for plenum air-handling spaces, and assembled cabinets are UL508 Listed.

Crestron asks its dealers to give the price of the CL-SPACEBUILDER-GLEX-FT directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CL-SPACEBUILDER-GLEX-FT on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CL-SPACEBUILDER-GLEX-FT develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
