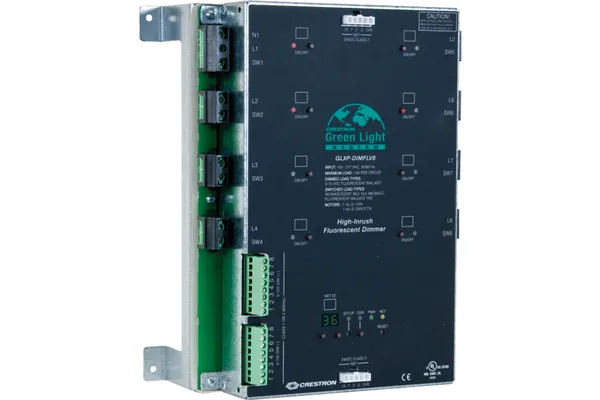

Crestron GLXP-DIMFLV8-LP 8-Channel 0-10 V Dimmer Module, Low Profile

It is a low profile Crestron Green Light module with eight channels of 0-10 V dimming control. It is part of a complete, Crestron engineered GLPS Green Light switching panel, mounts in a GLEX enclosure and communicates with the control system over Cresnet.

The 0-10 V outputs dim 4-wire fluorescent ballasts or LED drivers, with a 60 mA maximum current sink. The switched outputs handle incandescent, magnetic and electronic low voltage, neon/cold cathode, fluorescent, HID and motor loads, rated 16 A per channel at 100-277 VAC.

Primary power is 100-277 VAC, 50/60 Hz, supplied through channel 1 (L1 and N1). An optional secondary supply of 5 W at 24 VDC can come from the Cresnet network, which gives the module redundant power capability.

Yes. Front-panel controls allow local testing and verification: eight buttons with red LEDs manually activate individual channels, an override button enables override mode and saves presets, and two 7-segment LED digits show the Cresnet ID and display output levels during local control.

Yes. The 0-10 V DIM terminal blocks are galvanically isolated and may be wired as Class 1 or Class 2. They accept 12-28 AWG wire, while the line inputs and switch outputs use terminal blocks that accept 10-14 AWG.

Crestron asks its dealers to give the price of the GLXP-DIMFLV8-LP directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the GLXP-DIMFLV8-LP on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the GLXP-DIMFLV8-LP develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
