Crestron part number GLXX-2DIM8

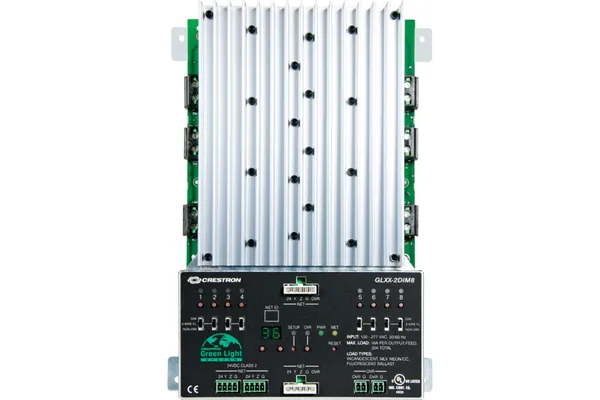

The Crestron GLXX-2DIM8 is a Green Light Express dimming module with eight channels of incandescent, magnetic and electronic low voltage, 2-wire fluorescent ballast and LED dimming, or four channels of 3-wire fluorescent ballast dimming. It forms part of a complete, Crestron engineered GLPX Green Light Express dimming or switching panel.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron GLXX-2DIM8
Each channel can be set to dim, 3-wire fluorescent or non-dim mode with its own recessed switch. Phase-synchronous detection eliminates lamp flicker, and electronic low voltage dimming is for forward-phase (leading edge) transformers only. Channels are phase-independent, with a positive air gap at each output and short circuit and overload protection.
Channels are rated 16 A each, with a 32 A module maximum, and they form two groups: DM1-DM4, powered from L1-N1, and DM5-DM8, powered from L2-N2. Each group is rated 16 A (1920 W) for lighting, or 1 HP at 120 V and 2 HP at 230/277 V for motors, and the minimum load is 25 W. Crestron's specification includes a note against mixing motor and lighting loads, so check how existing circuits are grouped when replacing a module.
Primary power is 100-277 VAC, 50/60 Hz, with an optional 5 W at 24 VDC through Cresnet, so the module can run on line or Cresnet power. Two 2-pin OVR inputs accept external contact closures to engage override mode. It is a surface mount module with integral mounting flanges and measures 281 mm high, 203 mm wide and 89 mm deep.
Key features
- 8 channels of incandescent, MLV, ELV, 2-wire fluorescent or LED dimming
- Alternatively, 4 channels of 3-wire fluorescent ballast dimming
- Phase-synchronous detection eliminates lamp flicker
- Selectable dim, 3-wire fluorescent and non-dim modes per channel
- 16 A per channel, 32 A total
- Short circuit and overload protection; positive air gap at each output
- Cresnet communications with line or Cresnet power
- Override inputs for external contact closures
GLXX-2DIM8 specifications
| Channels | 8 dimmer channels (or 4 channels of 3-wire fluorescent) |
|---|---|
| Load rating | 16 A per channel; 32 A total maximum |
| Lighting load per group | DM1-DM4: 16 A, 1920 W; DM5-DM8: 16 A, 1920 W |
| Motor load per group | 1 HP at 120 V; 2 HP at 230/277 V |
| Minimum load | 25 W |
| Dim load types | Incandescent, magnetic low voltage, electronic low voltage (forward-phase or leading edge only), neon/cold cathode, 2-wire fluorescent, LED |
| Power | Primary 100-277 VAC, 50/60 Hz via L1-N1 and L2-N2; optional 5 W at 24 VDC via Cresnet |
| Connectors | 2 Cresnet 4-pin terminal blocks; 2 Cresnet 5-pin headers with override; 2 OVR 2-pin terminal blocks; DM1-DM8 outputs, 26-10 AWG |
| Environment | 0°C to 40°C; 10% to 90% RH non-condensing; heat dissipation 154 BTU/hr |
| Dimensions | Height 281 mm (11.07 in); width 203 mm (7.99 in); depth 89 mm (3.50 in); surface mount with integral flanges |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| GLXX-2DIM8 | Standard | On request |
Where the GLXX-2DIM8 is used
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron GLXX-2DIM8
What is the Crestron GLXX-2DIM8?
It is an 8-channel Green Light Express dimming module. It dims incandescent, magnetic and electronic low voltage, 2-wire fluorescent and LED loads on eight channels, or 3-wire fluorescent ballasts on four channels, and it is part of a complete, Crestron engineered GLPX Green Light Express panel.
Which loads can the GLXX-2DIM8 dim?
Crestron lists incandescent, magnetic low voltage, electronic low voltage, neon/cold cathode, 2-wire fluorescent and LED as dimmable loads, plus 3-wire fluorescent ballasts on four channels. Electronic low voltage transformers must be forward-phase or leading edge types, and phase-synchronous detection eliminates lamp flicker.
What are the load limits?
Each channel is rated 16 A, with 32 A total for the module. Channels DM1-DM4 and DM5-DM8 form two groups, each rated 16 A and 1920 W for lighting, or 1 HP at 120 V and 2 HP at 230/277 V for motors. The minimum load is 25 W.
How is the GLXX-2DIM8 powered?
Primary power is 100-277 VAC, 50/60 Hz. L1-N1 powers channels DM1-DM4 and L2-N2 powers DM5-DM8. An optional 5 W at 24 VDC can be supplied through Cresnet, so the module has redundant power capability.
Can the GLXX-2DIM8 switch loads without dimming?
Yes. Each channel has its own recessed switch that selects DIM, 3 WIRE FL or NON-DIM mode. Crestron's switch load types for the module include incandescent, magnetic and electronic low voltage, neon/cold cathode, fluorescent ballast, high-intensity discharge, LED and motor loads.
How much is the Crestron GLXX-2DIM8?
Crestron asks its dealers to give the price of the GLXX-2DIM8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the GLXX-2DIM8?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the GLXX-2DIM8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the GLXX-2DIM8 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the GLXX-2DIM8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the GLXX-2DIM8 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the GLXX-2DIM8 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
