Crestron DIN-AP4 4-Series DIN Rail Control System

Crestron part number DIN-AP4

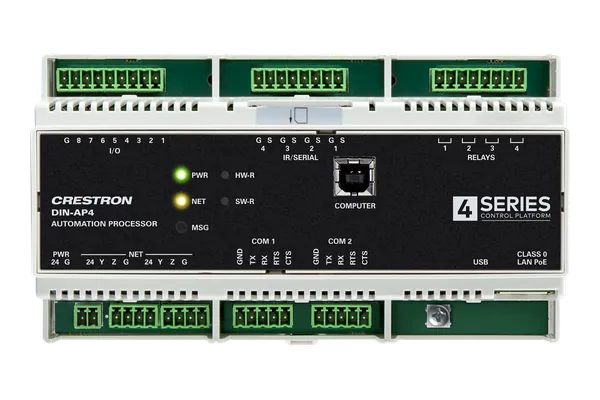

The Crestron DIN-AP4 is a 4-Series control system built for DIN rail mounting, with a multicore processor and a full set of onboard control ports. It serves as the core processor of a complete DIN rail automation system in a networked home, commercial building or government facility.
