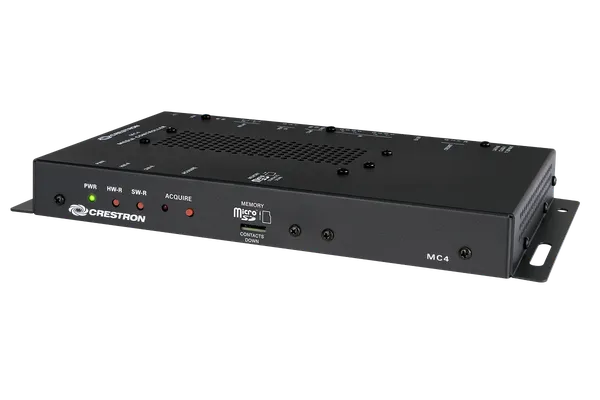

Crestron MC4 4-Series Control System, International

Crestron part number MC4-I

The Crestron MC4 is a compact 4-Series control processor with a built-in infiNET EX and ER wireless gateway, powered over Ethernet. It suits single-room media systems, small to medium-sized homes and offices, and multi-dwelling units, and is offered as the MC4-I or the MC4-R-I for Crestron Home OS.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron MC4 4-Series Control System, International

About the Crestron MC4

The MC4 runs Crestron's 4-Series control engine on an embedded multicore processor with 1 GB of SDRAM. On board are a Cresnet master port, a gigabit Ethernet port, one bidirectional RS-232 port up to 115.2k baud, four IR outputs up to 1.2 MHz, two Versiport I/O ports, two isolated relays rated 1 A at 30 VAC/VDC and an IR input for the CNXRMIRD receiver. A USB 2.0 host port and a microSD slot handle storage and logs.

The built-in gateway pairs infiNET EX and ER (extended range) wireless devices, using the supplied antenna, with a range of 15 m (50 ft) to the nearest mesh device. The processor supports control apps for iPhone, iPad and Android devices, XPanel computer and web control, Crestron Fusion room monitoring and scheduling, and XiO Cloud provisioning and management. More ports can be added with Crestron expansion modules, Ethernet to Cresnet bridges and I/O extenders, sold separately.

The MC4 is powered by PoE (IEEE 802.3at Type 1, 802.3af compatible, Class 0) and uses 7 W typical. The black metal chassis has two integral mounting flanges and can stand freely, be surface mounted, attach to a single rack rail or fit 1U of a 19 in rack with the included ears. It measures 27 mm high, 258 mm wide and 130 mm deep. The figures on this page are Crestron's for the MC4-I.

Key features

4-Series control engine on an embedded multicore processor
Built-in infiNET EX and ER wireless gateway
Onboard IR, RS-232, Versiport I/O, relay and Cresnet ports
Gigabit Ethernet with PoE power, 7 W typical
App control from iPhone, iPad and Android devices, plus XPanel
Crestron Fusion and XiO Cloud support
USB 2.0 host port and microSD slot
Freestanding, surface, rail or 1U rack mounting

MC4 specifications

Processor	4-Series control engine, embedded multicore CPU; 1 GB SDRAM
Control ports	1 RS-232 (up to 115.2k baud), 4 IR outputs (up to 1.2 MHz), 2 Versiport I/O, 2 relays (1 A, 30 VAC/VDC), IR input for CNXRMIRD
Cresnet	Cresnet master port, 4-pin terminal block
Ethernet	100/1000 Mbps RJ-45, PoE powered device port
Wireless gateway	infiNET EX and ER, 2.4 GHz, IEEE 802.15.4; 15 m (50 ft) to nearest mesh device
Storage	USB 2.0 host for mass storage up to 1 TB; microSD up to 32 GB
Management	Crestron Fusion, XiO Cloud, XPanel, mobile apps
Power	PoE, IEEE 802.3at Type 1 (802.3af compatible) Class 0; 7 W typical
Mounting	Freestanding, surface mount, single rack rail or 1U 19 in rack (ears included)
Dimensions	Height 27 mm (1.07 in), width 258 mm (10.15 in), depth 130 mm (5.11 in)

Part numbers on this page

Part number	Version	Price	Add
MC4-I	International version	On request
MC4-R-I	Crestron Home OS, international version	On request

Where the MC4 is used

Single-room media systems
Small to medium-sized homes and offices
Multi-dwelling units
Crestron Home OS projects (MC4-R-I)
Sites with infiNET EX wireless keypads, remotes and sensors

Works with the MC4

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron MC4

What is the Crestron MC4?

It is a compact 4-Series control system that acts as the processor and interface for a Crestron system. It has onboard IR, RS-232, relay, Versiport, Cresnet and Ethernet ports, plus a built-in infiNET EX and ER wireless gateway, and it is powered over Ethernet.

What is the difference between the MC4-I and MC4-R-I?

Both are 4-Series control systems in the international version. Crestron lists the MC4-R-I as the 4-Series Control System for Crestron Home OS, while the MC4-I is the standard 4-Series Control System. The specifications on this page are Crestron's published figures for the MC4-I.

Does the MC4 have a built-in wireless gateway?

Yes. It has a built-in gateway for infiNET EX and ER (extended range) wireless devices, connected to the supplied antenna. Its range is 15 m (50 ft) to the nearest mesh network device, and an ACQUIRE button is used to set up connections with wireless devices.

How is the MC4 powered?

It is powered over Ethernet as an IEEE 802.3at Type 1 (802.3af compatible) Class 0 powered device, and uses 7 W typical. Crestron lists PoE as its only power source option, so the network port feeding it must supply PoE.

How is the MC4 mounted?

The black metal chassis has two integral mounting flanges and vents on the top, sides and bottom. It can be freestanding, surface mounted, attached to a single rack rail or fitted in 1U of a 19 in rack using the included rack ears. It measures 27 mm high, 258 mm wide and 130 mm deep.

How much is the Crestron MC4?

Crestron asks its dealers to give the price of the MC4 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the MC4?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the MC4 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the MC4 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the MC4 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the MC4 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the MC4 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
