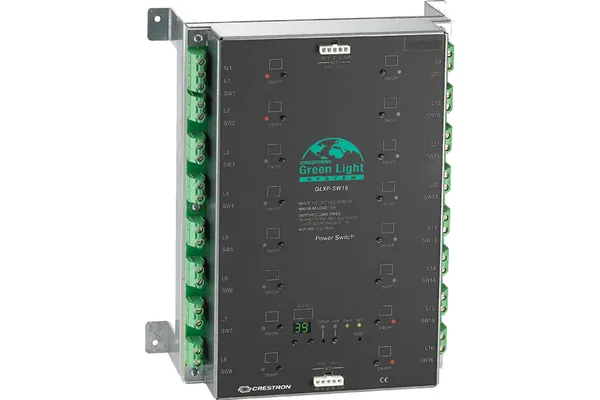

Crestron GLXP-SW16-LP 16-Channel Switch Module, Low Profile

It is a low profile Crestron Green Light switching module with 16 independent channels of power switching. It uses mechanically latching relays, each channel is rated for a 16 A lighting load or a 1 HP motor, and it communicates with a Crestron control system over Cresnet.

Each channel handles 16 A at 100-277 VAC, or 0.5 HP at 120 VAC and 1 HP at 230 or 277 VAC. Supported load types are incandescent, magnetic and electronic low voltage, neon/cold cathode, fluorescent ballast, high-intensity discharge, LED and motor loads.

An override signal from the control system sets all output channels to their preset override level. Override mode can also be triggered from the front panel, and the override levels can be adjusted and saved either with the front-panel controls or through software.

Primary power is 100-277 VAC, 50/60 Hz, via channel 1 (L1 and N1), with an optional 5 W at 24 VDC through Cresnet for redundant power. A pair of Cresnet ports makes it easy to daisy-chain several Crestron devices.

The GLXP-SW16-LP has 16 channels with mechanically latching relays and a positive air gap at each output. The GLXP-HSW12-LP has 12 channels built for high-inrush switching, with arc-less switching. Both are low profile Green Light modules rated 16 A or 1 HP per channel that mount in a GLEX series enclosure.

Crestron asks its dealers to give the price of the GLXP-SW16-LP directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the GLXP-SW16-LP on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the GLXP-SW16-LP develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
