Crestron PW-2030DUL 20 VDC Power Pack, Flying Leads

Crestron part number PW-2030DUL

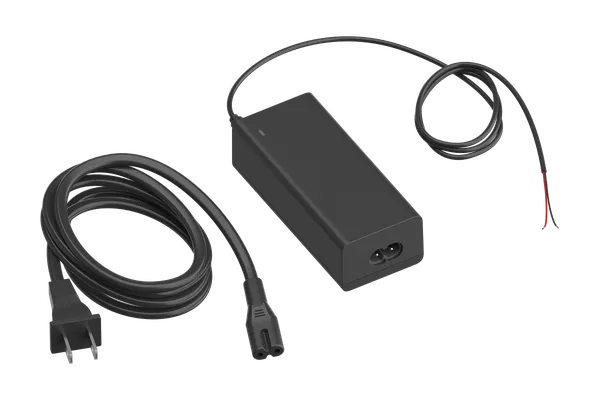

The Crestron PW-2030DUL is a universal, regulated desktop power pack with a 20 VDC, 3.0 A output on an attached cable with flying leads. Crestron designed it for the USB-EXT-3S series USB extender wall plates, which are sold separately.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron PW-2030DUL Desktop Power Pack, 20VDC, 3.0A, Flying Leads, Universal

About the Crestron PW-2030DUL

The output cable ends in flying leads rather than a barrel connector, and Crestron specifies this version for USB-EXT-3S series extender wall plates. Mains power enters through a C8 2-pin inlet, and the unit accepts 100 to 240 VAC at 50/60 Hz with a maximum draw of 1.5 A. The regulated output is 20 VDC, rated at 3.0 A.

It is a black plastic desktop unit for indoor use only, rated for 0 to 40°C and 0% to 90% humidity, non-condensing, and it is CE marked and UL Listed. When replacing a power pack, check whether the extender needs flying leads or a barrel plug; the PW-2030DU has the same rating with a locking 2.1 x 5.5 mm barrel connector.

Key features

20 VDC, 3.0 A regulated output
Attached output cable with flying leads
100 to 240 VAC, 50/60 Hz input
C8 2-pin mains inlet
For Crestron USB-EXT-3S series USB extender wall plates
Black plastic desktop unit for indoor use
CE and UL Listed

PW-2030DUL specifications

Output	20 VDC, 3.0 A, regulated
Input	100 to 240 VAC, 50/60 Hz, 1.5 A maximum
Mains connection	C8 2-pin inlet
DC connection	Attached cable with flying leads
Intended for	Crestron USB-EXT-3S series USB extender wall plates (sold separately)
Construction	Black plastic, desktop; indoor use only
Environment	0 to 40°C, 0% to 90% RH non-condensing
Compliance	CE, UL Listed

Part numbers on this page

Part number	Version	Price	Add
PW-2030DUL	Flying leads	On request

Where the PW-2030DUL is used

Powering USB-EXT-3S series extender wall plates
Replacing a lost or failed PW-2030DUL
Spare power pack for USB extender wall plates

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron PW-2030DUL

What is the Crestron PW-2030DUL?

It is a universal, regulated desktop power pack with a 20 VDC, 3.0 A output delivered on an attached cable with flying leads. Crestron designed it for the USB-EXT-3S series USB extender wall plates, which are sold separately.

What is the difference between the PW-2030DUL and PW-2030DU?

Both are 20 VDC, 3.0 A regulated desktop power packs with a C8 mains inlet. The PW-2030DUL has flying leads on its output cable and is listed for USB-EXT-3S series wall plates, while the PW-2030DU has a locking 2.1 x 5.5 mm barrel connector for USB-EXT-3S series extenders.

What mains input does the PW-2030DUL need?

It accepts 100 to 240 VAC at 50/60 Hz and draws a maximum of 1.5 A, connected through a C8 2-pin inlet. It is designed for indoor use only and is CE marked and UL Listed.

What environment is the power pack rated for?

Crestron rates it for 0 to 40°C and 0% to 90% relative humidity, non-condensing, and states that it is for indoor use only. The housing is black plastic and is designed for desktop placement.

Is the output regulated?

Yes. Crestron specifies a regulated 20 VDC output at 3.0 A. Check that the extender wall plate you are powering is from the USB-EXT-3S series, as that is the product family Crestron lists for this power pack.

How much is the Crestron PW-2030DUL?

Crestron asks its dealers to give the price of the PW-2030DUL directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the PW-2030DUL?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the PW-2030DUL on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the PW-2030DUL come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the PW-2030DUL develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the PW-2030DUL in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the PW-2030DUL without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
