Crestron DM-RMC-4KZ-SCALER-C 4K60 HDR Receiver with Scaler

Crestron part number DM-RMC-4KZ-SCALER-C

The Crestron DM-RMC-4KZ-SCALER-C is a DigitalMedia 8G+ receiver, 4K60 4:4:4 HDR scaler and room controller for a single display. It takes a DM 8G+ or HDBaseT signal over one CAT5e or better cable, adds an HDMI input, and provides a scaled HDMI output and an analogue audio output.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

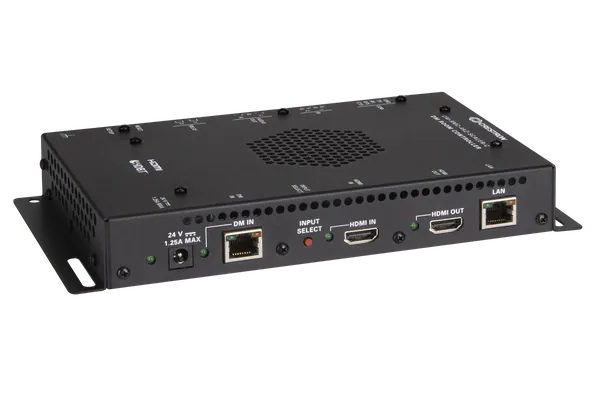

Crestron DM-RMC-4KZ-SCALER-C DigitalMedia 8G+ 4K60 4:4:4 HDR Receiver and Room Controller with Scaler

About the Crestron DM-RMC-4KZ-SCALER-C

The built-in scaler handles up to 4K60 4:4:4 with HDR10 and Deep Color, using motion-adaptive deinterlacing and intelligent frame rate conversion, and overscan or underscan can be adjusted by up to 7.5%. Both the DM 8G+ input and the HDMI input accept HDR10, Deep Color and 4K60 4:4:4, and custom resolutions may be supported at pixel clock rates up to 600 MHz. Content is protected by HDCP 2.2.

As an audio extractor, it de-embeds stereo 2-channel audio to a stereo analogue line level output, alongside HDMI audio with formats such as Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio. The DM 8G+ input links to the DM 8G+ output of a DM switcher or transmitter and is compatible with the HDBaseT standard. At 1080p, runs of up to 100 m are supported on DM Ultra cable, DM 8G cable or CAT5e.

Power is PoDM+ over the DM link or HDBaseT PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W), or the optional PW-2412WU power pack, and consumption is 18.2 W. The unit also has IR, RS-232, Ethernet and relay ports. Its black metal chassis has two integral mounting flanges for freestanding, surface or single rack rail mounting and measures 233 mm high, 136 mm wide and 34 mm deep.

Key features

DM 8G+ receiver, audio extractor and display controller
Built-in 4K60 4:4:4 scaler with HDR10 and Deep Color
Adjustable overscan or underscan up to 7.5%
DM 8G+ input, compatible with the HDBaseT standard
Additional HDMI input
Stereo analogue line level audio output
IR, RS-232, Ethernet and relay ports
PoDM+ or HDBaseT PoE+ powered, 18.2 W

DM-RMC-4KZ-SCALER-C specifications

Inputs	1 DM 8G+ (HDBaseT compatible) and 1 HDMI, with HDR10, Deep Color and 4K60 4:4:4
Output	1 HDMI with HDR10, Deep Color and 4K60 4:4:4; HDCP 2.2
Scaler	4K60 4:4:4 with motion-adaptive deinterlacer, intelligent frame rate conversion, Deep Color and HDR10; overscan or underscan up to 7.5%
Resolutions	4096x2160 and 3840x2160 at 30 Hz 4:4:4 (36 bit) and 60 Hz 4:4:4 (24 bit); 1080p60 4:4:4; custom up to 600 MHz pixel clock
Cable length	1080p: up to 100 m (330 ft) on DM Ultra cable, DM 8G cable or CAT5e
Audio	Inputs DM 8G+, HDBaseT, HDMI; outputs HDMI and stereo analogue; Dolby TrueHD, Dolby Atmos, DTS-HD
Power	PoDM+ or HDBaseT PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W), or PW-2412WU 24 VDC power pack (sold separately); 18.2 W
Mounting	Freestanding, surface mount or single rack rail; black metal chassis with 2 integral mounting flanges
Dimensions	Height 233 mm (9.18 in), width 136 mm (5.35 in), depth 34 mm (1.33 in)

Part numbers on this page

Part number	Version	Price	Add
DM-RMC-4KZ-SCALER-C	Standard	On request

Where the DM-RMC-4KZ-SCALER-C is used

Displays that need DM 8G+ sources scaled to their native format
Rooms that add an HDMI source at the display end
Projectors or displays that need overscan or underscan adjustment
Rooms that take stereo analogue audio from the receiver

Works with the DM-RMC-4KZ-SCALER-C

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-RMC-4KZ-SCALER-C

What is the Crestron DM-RMC-4KZ-SCALER-C?

It is a DigitalMedia 8G+ receiver, 4K60 4:4:4 HDR video scaler and control interface for a single display. It has a DM 8G+ input and an HDMI input, a scaled HDMI output, a stereo analogue audio output, and IR, RS-232, Ethernet and relay ports.

What does the scaler on the DM-RMC-4KZ-SCALER-C do?

The built-in scaler outputs up to 4K60 4:4:4 with HDR10 and Deep Color support, using motion-adaptive deinterlacing and intelligent frame rate conversion. It also allows overscan or underscan to be adjusted by up to 7.5%, and custom resolutions may be supported at pixel clock rates up to 600 MHz.

What is the difference between the DM-RMC-4KZ-SCALER-C and the DM-RMC-4KZ-100-C?

Both are DM 8G+ receivers for 4K60 4:4:4 HDR10 signals. The DM-RMC-4KZ-SCALER-C adds a 4K60 4:4:4 scaler, an HDMI input, a stereo analogue audio output and relay ports, and is powered at the 25.5 W class. The DM-RMC-4KZ-100-C has a single HDMI output with Ethernet, RS-232 and IR ports, powered at the 12.95 W class.

How is the DM-RMC-4KZ-SCALER-C powered?

It is powered over the DM link by a PoDM+ power sourcing device or over HDBaseT PoE+, both IEEE 802.3at Type 2 Class 4 (25.5 W). The alternative is the PW-2412WU power pack, sold separately, which supplies 1.25 A at 24 VDC. Power consumption is 18.2 W.

What cable does the DM input need?

The DM 8G+ input connects to the DM 8G+ output of a DM switcher or transmitter through a single CAT5e or higher twisted pair cable. At 1080p, runs of up to 100 m (330 ft) are supported on DM Ultra cable, DM 8G cable or third-party CAT5e or higher.

How much is the Crestron DM-RMC-4KZ-SCALER-C?

Crestron asks its dealers to give the price of the DM-RMC-4KZ-SCALER-C directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-RMC-4KZ-SCALER-C?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-RMC-4KZ-SCALER-C on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-RMC-4KZ-SCALER-C come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-RMC-4KZ-SCALER-C develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-RMC-4KZ-SCALER-C in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-RMC-4KZ-SCALER-C without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
