Crestron DM-NUX-R2 USB over Network Remote Endpoint

Crestron part number DM-NUX-R2

The Crestron DM-NUX-R2 is the remote, device side endpoint of the DM NUX USB over Network system, where USB devices such as mice and keyboards connect. Paired with a DM-NUX-L2 local endpoint at the host, it extends and routes USB 1.1 and 2.0 devices for up to 100 m (330 ft).

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

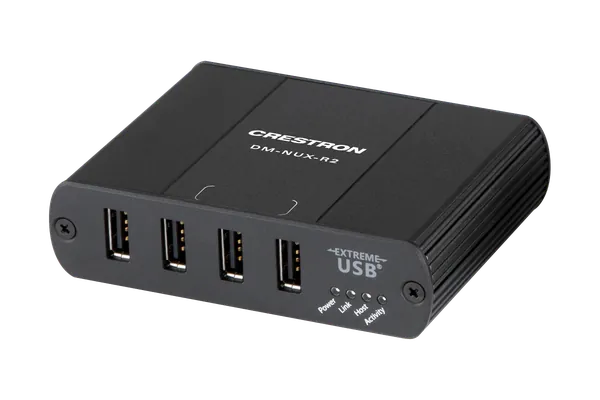

Crestron DM-NUX-R2 DM NUX USB over Network with Routing, Remote

About the Crestron DM-NUX-R2

The DM-NUX-R2 has USB Type A host ports for USB devices such as mice, keyboards and other peripherals, and can be expanded with USB hubs (not included). Its RJ-45 Link port connects to an Ethernet network or directly to the Link port on a local endpoint over CAT5e or better cable. USB 2.0 runs at up to 480 Mbps depending on network speed and quality, and USB 1.1 at up to 12 Mbps.

In a DigitalMedia system, DM NUX endpoints route USB alongside video and audio and can connect directly to a DM transmitter, DM receiver or the network, with routing controlled by a Crestron control system or DigitalMedia system. Virtual Hub support allows up to five DM-NUX-R2 endpoints to be used together. It is also compatible with the DM NUX wall plates and with DM NVX endpoints that support USB 2.0 extension.

Power comes from the included PW-2407WU power pack (100 to 240 VAC in, 24 VDC out). It is plug-and-play with most USB 1.1 and 2.0 devices and hosts, with no drivers needed for Windows, macOS or Linux, and a signal chain can include up to 30 USB devices, or four hubs with 26 devices. The unit is freestanding or surface mounted with the included bracket, and measures 26 mm high, 100 mm wide and 76 mm deep.

Key features

Remote (device) endpoint for DM NUX USB over Network
USB Type A host ports for mice, keyboards and other USB devices
USB 1.1 and 2.0 extension and routing up to 100 m
Up to 480 Mbps over Ethernet or CAT5e
PW-2407WU power pack included
No drivers needed for Windows, macOS or Linux
Virtual Hub support with up to five DM-NUX-R2 endpoints
Works with DM NUX wall plates and DM NVX USB endpoints

DM-NUX-R2 specifications

Role	Remote (device) endpoint; works with DM-NUX-L2 local endpoints and DM NUX wall plates
USB support	USB 1.0, 1.1 and 2.0, hub compatible, including isochronous devices
Throughput	USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps; dependent on network speed and quality
Distance	Up to 100 m (330 ft)
Network	100Base-T or 1000Base-T Ethernet, Layer 2; RJ-45 Link port to network or to a local endpoint
Device connections	USB Type A, USB 2.0 host ports; expandable with USB hubs (not included)
System limits	Up to 4 USB hubs per signal chain; 30 USB devices, or 4 hubs with 26 devices
Power	24 VDC input on 2.1 x 5.5 mm connector; PW-2407WU power pack included (100-240 VAC in, 24 VDC 0.75 A out)
Host OS	Windows, macOS and Linux, no drivers required
Mounting and size	Freestanding or surface mount, bracket included; height 26 mm (1.02 in), width 100 mm (3.94 in), depth 76 mm (2.99 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NUX-R2	Standard	On request

Where the DM-NUX-R2 is used

Keyboard and mouse stations away from the computer
Switching USB peripherals between computers from any room with a display
USB extension across a home, business or campus
DigitalMedia systems that route USB with video

Works with the DM-NUX-R2

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NUX-R2

What is the Crestron DM-NUX-R2?

It is the remote endpoint of the DM NUX USB over Network system, where USB devices such as mice and keyboards connect. Working with a DM-NUX-L2 local endpoint at the host computer, it extends and routes USB 1.1 and 2.0 devices over Ethernet or CAT5e cable for up to 100 m (330 ft).

How is the DM-NUX-R2 powered?

It is powered by the PW-2407WU power pack, which is included. The power pack takes 100 to 240 VAC and supplies 24 VDC to the unit's 2.1 x 5.5 mm DC power connector. A blue Power LED shows when operating power is supplied by the power supply.

What is the difference between the DM-NUX-R2 and the DM-NUX-L2?

The DM-NUX-R2 is the remote endpoint, with USB Type A host ports for USB devices, and it is powered by an included PW-2407WU power pack. The DM-NUX-L2 is the local endpoint, which connects to the USB host through a USB Type B port and is powered from that USB connection.

Can USB hubs be used with the DM-NUX-R2?

Yes. Any signal chain can include up to four USB hubs, which are not included, plus one DM-NUX-L2 and one DM-NUX-R2. The maximum is 30 USB devices, or four hubs with 26 devices. It is plug-and-play with most USB 1.1 and 2.0 devices.

Does it work with DM NVX?

Yes. Crestron lists the DM NUX endpoints as compatible with DM NVX endpoints that support USB 2.0 signal extension, and with the DM NUX wall plates (DM-NUX-L2-1G and DM-NUX-R2-1G). In a DigitalMedia system, USB can be routed alongside video and audio.

How much is the Crestron DM-NUX-R2?

Crestron asks its dealers to give the price of the DM-NUX-R2 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NUX-R2?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NUX-R2 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NUX-R2 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NUX-R2 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NUX-R2 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NUX-R2 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
