Crestron DM-NUX-L2 USB over Network Local Endpoint

Crestron part number DM-NUX-L2

The Crestron DM-NUX-L2 is the local, host side endpoint of the DM NUX USB over Network system, connecting to a computer or other USB host. Paired with DM-NUX-R2 remote endpoints, it extends and routes USB 1.1 and 2.0 devices over Ethernet or CAT5e cable for up to 100 m (330 ft).

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

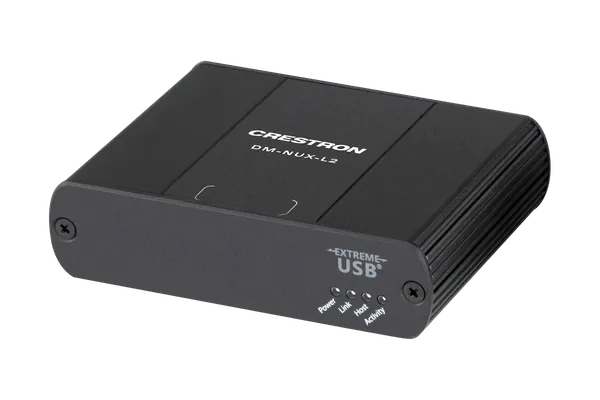

Crestron DM-NUX-L2 DM NUX USB over Network with Routing, Local

About the Crestron DM-NUX-L2

The DM-NUX-L2 connects to the USB host, such as a computer or media server, through its USB Type B port (a USB B to A cable is included) and draws its power from that USB connection. Its RJ-45 Link port connects to an Ethernet network or directly to a remote endpoint. USB 2.0 runs at up to 480 Mbps depending on network speed and quality, and Mass Storage Acceleration speeds up USB 2.0 bulk transfers.

With a DigitalMedia system, DM NUX routes USB alongside video and audio, and endpoints can connect directly to a DM transmitter, DM receiver or the network. Routing is under the control of a Crestron control system or DigitalMedia system, and Virtual Hub support lets up to five DM-NUX-R2 endpoints be connected at the same time. It is also compatible with the DM-NUX-L2-1G and DM-NUX-R2-1G wall plates and with DM NVX endpoints that support USB 2.0 extension.

It is plug-and-play with most USB 1.1 and 2.0 devices and hosts, with no drivers needed for Windows, macOS or Linux. A signal chain can include up to four USB hubs plus one DM-NUX-L2 and one DM-NUX-R2, with up to 30 USB devices, or four hubs with 26 devices. The compact unit is freestanding or surface mounted using the included bracket, and measures 26 mm high, 100 mm wide and 76 mm deep.

Key features

Local (host) endpoint for DM NUX USB over Network
USB 1.1 and 2.0 extension and routing up to 100 m
Up to 480 Mbps over Ethernet or CAT5e
Powered from the host's USB connection
No drivers needed for Windows, macOS or Linux
Virtual Hub support with up to five DM-NUX-R2 endpoints
Routes USB alongside video and audio in DigitalMedia systems
Works with DM NUX wall plates and DM NVX USB endpoints

DM-NUX-L2 specifications

Role	Local (host) endpoint; works with DM-NUX-R2 remote endpoints and DM NUX wall plates
USB support	USB 1.0, 1.1 and 2.0, hub compatible, including isochronous devices
Throughput	USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps; dependent on network speed and quality
Distance	Up to 100 m (330 ft)
Network	100Base-T or 1000Base-T Ethernet, Layer 2; RJ-45 Link port to network or directly to a remote endpoint
Host connection	USB Type B, USB 2.0 device port; USB B to A cable included
System limits	Up to 4 USB hubs per signal chain; 30 USB devices, or 4 hubs with 26 devices
Host OS	Windows, macOS and Linux, no drivers required
Power	USB powered via the host interface
Mounting and size	Freestanding or surface mount, bracket included; height 26 mm (1.02 in), width 100 mm (3.94 in), depth 76 mm (2.99 in)

Part numbers on this page

Part number	Version	Price	Add
DM-NUX-L2	Standard	On request

Where the DM-NUX-L2 is used

Switching USB peripherals between computers from any room with a display
USB extension up to 100 m across a home, business or campus
DigitalMedia systems that route USB with video
Extending mice, keyboards and other USB devices

Works with the DM-NUX-L2

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NUX-L2

What is the Crestron DM-NUX-L2?

It is the local endpoint of the DM NUX USB over Network system. It connects to the USB host, such as a computer or media server, and works with DM-NUX-R2 remote endpoints to extend and route USB 1.1 and 2.0 devices over Ethernet or CAT5e cable for up to 100 m (330 ft).

What is the difference between the DM-NUX-L2 and the DM-NUX-R2?

The DM-NUX-L2 is the local endpoint and connects to the USB host through a USB Type B port, taking its power from that connection. The DM-NUX-R2 is the remote endpoint, with USB Type A host ports for devices such as mice and keyboards, and it is powered by an included PW-2407WU power pack.

How is the DM-NUX-L2 powered?

It is USB powered through the USB host interface, so it takes its power from the connected computer or other host and needs no separate power supply. A blue Power LED shows when operating power is being supplied by the USB host.

Does the DM-NUX-L2 need drivers?

No. It is plug-and-play compatible with most types of USB 1.1 and 2.0 devices and hosts, and no drivers are required with Windows, macOS or Linux operating systems. USB 2.0 runs at up to 480 Mbps and USB 1.1 at up to 12 Mbps, depending on network speed and quality.

How many USB devices can be connected?

Any signal chain can include up to four USB hubs plus one DM-NUX-L2 and one DM-NUX-R2. The maximum is 30 USB devices, or four USB hubs with 26 USB devices. Virtual Hub support allows up to five DM-NUX-R2 endpoints to be used together.

How much is the Crestron DM-NUX-L2?

Crestron asks its dealers to give the price of the DM-NUX-L2 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NUX-L2?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NUX-L2 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NUX-L2 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NUX-L2 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NUX-L2 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NUX-L2 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
