Crestron DM-EXT-2022 USB-C and HDMI Switcher Extender Kit

Crestron part number DM-EXT-2022 KIT

The Crestron DM-EXT-2022 KIT is a DM Essentials transmitter and auto-switching receiver that extends HDMI, USB-C DisplayPort and USB 2.0 signals over one CATx cable. It switches between sources at the transmitter and the receiver automatically or manually, with 4K60 4:4:4 HDR video, for classrooms and meeting spaces.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

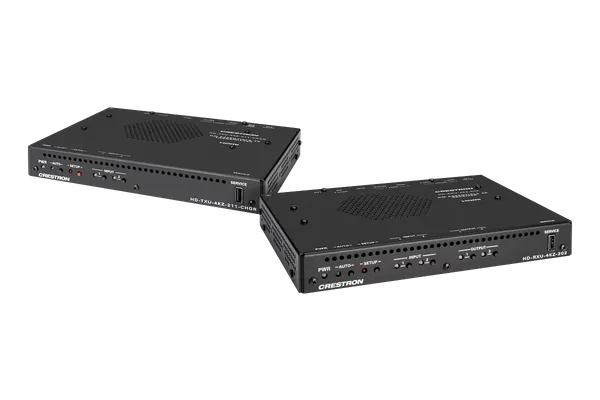

Crestron DM-EXT-2022 4K60 4:4:4 DM Essentials Receiver and 2x2 Auto-Switcher for HDMI, USB-C DisplayPort, and USB 2.0 Signal Extension over CATx Cable

About the Crestron DM-EXT-2022

The kit contains the HD-TXU-4KZ-211-CHGR transmitter and the HD-RXU-4KZ-202 receiver. The transmitter has a 60W USB-C input that takes DisplayPort Alt Mode video with USB 2.0 data and can also charge a connected AV device, plus an HDMI input with an associated USB-C device port for sources that need USB 2.0. The receiver adds a further HDMI input and provides two HDMI outputs.

Across the system, three inputs (two at the transmitter and one at the receiver) switch to two outputs at the receiver, automatically or manually. Video is supported up to 4K60 with 4:4:4 colour sampling at 8 bit, with HDR10, HDR10+, Dolby Vision and Deep Color. HDCP 2.3 and EDID are managed and CEC is supported. Extension distance is up to 40 m (130 ft) for UHD and 4K, or 70 m (230 ft) for 1080p, WUXGA and 2K.

For system integration there is a LAN port for configuration and management, a built-in web interface for setup and monitoring, enterprise-grade security, compatibility with Crestron 3-Series control systems or later, and .AV Framework support. USB 2.0 is extended at up to 300 Mbps, with two USB Type-A host ports on the transmitter. Power packs are included: the PW-2475DU for the transmitter and the PW-2420RU. The black metal chassis has two mounting flanges for surface or rack rail mounting.

Key features

Transmitter and receiver pair: HD-TXU-4KZ-211-CHGR and HD-RXU-4KZ-202
60W USB-C input with DisplayPort Alt Mode that can also charge a connected device
HDMI inputs at the transmitter and the receiver
3x2 switching to two HDMI outputs, automatic or manual
4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision
USB 2.0 extension at up to 300 Mbps
Web interface, enterprise-grade security and .AV Framework support
Up to 40 m for 4K, or 70 m for 1080p, WUXGA and 2K

DM-EXT-2022 specifications

Kit contents	HD-TXU-4KZ-211-CHGR transmitter, HD-RXU-4KZ-202 receiver, PW-2475DU and PW-2420RU power packs
Switching	3x2 (2 inputs at transmitter plus 1 input at receiver, 2 outputs at receiver); auto or manual
Transmitter inputs	60W USB-C (DisplayPort Alt Mode with USB 2.0 data, can charge a connected device); HDMI with associated USB-C device port
Video	HDMI (DVI and Dual-Mode DisplayPort compatible) and DM Lite with HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4; HDMI outputs
Resolutions	4096x2160 and 3840x2160 at 60 Hz 4:4:4 8 bit or 4:2:2 12 bit; 1920x1080 at 60 Hz 4:4:4 12 bit; 1080i
Extension distance	CAT5e or higher: up to 40 m (130 ft) for UHD and 4K; up to 70 m (230 ft) for 1080p, WUXGA and 2K
Copy protection	HDCP 2.3; EDID; CEC
USB	USB 2.0 up to 300 Mbps; 2 USB Type-A host ports and a USB service port on the transmitter
Network and control	100/1000 Ethernet LAN port, Secure CIP, DHCP, web browser setup; Crestron 3-Series or later; .AV Framework
Power and mounting	PW-2475DU and PW-2420RU power packs (100-240 VAC in, 24 VDC out); surface or rack rail mount; each unit 30 x 216 x 165 mm (H x W x D)

Part numbers on this page

Part number	Version	Price	Add
DM-EXT-2022 KIT	Transmitter and receiver kit	On request

Where the DM-EXT-2022 is used

Meeting rooms with both USB-C and HDMI sources
Classrooms needing a third source at the display end
Rooms that need two HDMI outputs at the display end
Presenting from a USB-C device while charging it
Crestron controlled rooms using .AV Framework

Works with the DM-EXT-2022

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-EXT-2022

What is in the Crestron DM-EXT-2022 KIT?

The kit contains the HD-TXU-4KZ-211-CHGR transmitter, the HD-RXU-4KZ-202 auto-switching receiver and the PW-2475DU and PW-2420RU power packs. Together they switch and extend HDMI, USB-C DisplayPort and USB 2.0 signals over one CATx cable, with 4K60 4:4:4 HDR video.

How many inputs and outputs does the DM-EXT-2022 have?

Crestron lists the system as a 3x2 switcher. The transmitter has two inputs, a USB-C input using DisplayPort Alt Mode and an HDMI input, and the receiver has one more input and two outputs. Switching can be automatic or manual, and video is output as HDMI.

Can the USB-C input charge the connected device?

The transmitter's USB-C input is labelled 60W, and Crestron notes that it can also charge the connected AV device while carrying DisplayPort Alt Mode video and USB 2.0 data. The HDMI input has its own associated USB-C device port for sources that need USB 2.0 support.

How far can the kit extend 4K video?

Over CAT5e or higher twisted pair cable, it reaches up to 40 m (130 ft) for UHD and 4K signals and up to 70 m (230 ft) for 1080p, WUXGA and 2K. Video is supported up to 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision, and HDCP 2.3 is supported.

Does the DM-EXT-2022 work with a Crestron control system?

Yes. It is compatible with Crestron 3-Series control systems or later and supports .AV Framework technology. It also has a LAN port for configuration and management, a built-in web interface for setup and monitoring, Secure CIP and enterprise-grade security.

How much is the Crestron DM-EXT-2022?

Crestron asks its dealers to give the price of the DM-EXT-2022 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-EXT-2022?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-EXT-2022 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-EXT-2022 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-EXT-2022 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-EXT-2022 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-EXT-2022 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
