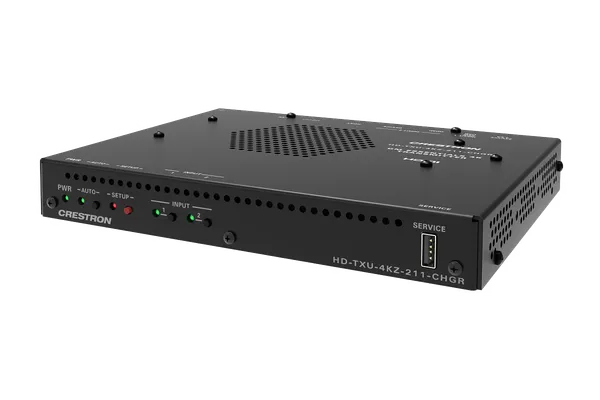

Crestron part number HD-TXU-4KZ-211-CHGR
The Crestron HD-TXU-4KZ-211-CHGR is a DM Essentials transmitter and 2x1 auto-switcher with an HDMI input and a USB-C input that can charge the connected device. It suits rooms where people connect HDMI or USB-C sources, sending the chosen source and USB 2.0 data over one CAT5e or higher cable to an HD-RXU-4KZ Series receiver.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron HD-TXU-4KZ-211-CHGR
Input 1 is a USB-C port that takes DisplayPort video and audio using DisplayPort Alt Mode, carries USB 2.0 data and can charge the connected source. Input 2 is an HDMI connector, compatible with DVI and Dual-Mode DisplayPort sources, paired with its own USB-C device port for sources that need USB 2.0. The unit switches between the two inputs automatically, and USB 2.0 runs at up to 300 Mbps over the link.
Video reaches 4K60 4:4:4 with HDR10, HDR10+, Dolby Vision and HDCP 2.3, and the unit also handles 5120x2160 at 30 Hz 4:4:4 and 5120x1440 at 60 Hz. It is designed to pair with a DM Essentials HD-RXU-4KZ Series receiver over CAT5e or higher cable, with runs of up to 40 m (130 ft) for UHD and 4K, or 70 m (230 ft) for 1080p, WUXGA and 2K.
Power comes from the included PW-2475DU power pack through a 2.1 x 5.5 mm DC connector. The black metal chassis is vented on the top, front, rear and sides and has two mounting brackets for freestanding, surface or single rack rail mounting. It measures 30 mm high, 216 mm wide and 165 mm deep. Ethernet supports DHCP and web browser setup, and a USB SERVICE port handles firmware loading.
Key features
- 2x1 automatic switching between HDMI and USB-C inputs
- USB-C input with DisplayPort Alt Mode, USB 2.0 and device charging
- HDMI input with its own USB-C device port for USB 2.0
- 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision; HDCP 2.3
- Supports 5120x2160 at 30 Hz and 5120x1440 at 60 Hz
- Up to 40 m for UHD and 4K, or 70 m for 1080p, WUXGA and 2K
- Enterprise-grade security and web browser setup
- PW-2475DU power pack included
HD-TXU-4KZ-211-CHGR specifications
| Inputs | INPUT 1 (60W USB): USB Type-C with DisplayPort Alt Mode, USB 2.0 and device charging; INPUT 2: HDMI Type A, DVI and Dual-Mode DisplayPort compatible, with USB-C device port |
|---|---|
| Switching | 2x1 automatic input switching |
| Resolutions | 4096x2160 and 3840x2160 up to 60 Hz (4:4:4 8 bit or 4:2:2 12 bit at 60 Hz); 5120x2160 at 30 Hz 4:4:4 or 60 Hz 4:2:0; 5120x1440 at 60 Hz 4:4:4; 1080p60 4:4:4 12 bit |
| Video formats | HDR10, HDR10+, Dolby Vision, Deep Color; HDCP 2.3 |
| USB | USB 2.0 up to 300 Mbps via host and device ports |
| Ethernet | 100/1000 Mbps with DHCP, auto-discovery and web browser setup and control |
| Distance | Up to 40 m (130 ft) for UHD and 4K; up to 70 m (230 ft) for 1080p, WUXGA and 2K |
| Power | 24 VDC 4.5 A via 2.1 x 5.5 mm DC connector; PW-2475DU power pack included (100 to 240 VAC input) |
| Mounting | Freestanding, surface mount or single rack rail; black metal chassis, 2 mounting brackets included |
| Dimensions | Height 30 mm (1.20 in), width 216 mm (8.52 in), depth 165 mm (6.48 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| HD-TXU-4KZ-211-CHGR | Standard | On request |
Where the HD-TXU-4KZ-211-CHGR is used
Works with the HD-TXU-4KZ-211-CHGR
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron HD-TXU-4KZ-211-CHGR
What is the Crestron HD-TXU-4KZ-211-CHGR?
It is a DM Essentials 4K60 4:4:4 transmitter with a built-in 2x1 auto-switcher. It has one HDMI input and one USB-C input with DisplayPort Alt Mode, and sends the selected source plus USB 2.0 data over one CAT5e or higher cable to a DM Essentials HD-RXU-4KZ Series receiver.
Does the HD-TXU-4KZ-211-CHGR charge the connected device?
Yes. Input 1, the USB-C input marked 60W USB in Crestron's specifications, can charge the connected AV source while it carries DisplayPort video and audio and USB 2.0 data. Charging is provided by this USB-C DisplayPort input; the HDMI input has a separate USB-C device port for sources that need USB 2.0.
How do the two inputs work?
The unit switches automatically between Input 1, the USB-C connection with DisplayPort Alt Mode, and Input 2, the HDMI connection. The HDMI input has an associated USB-C device port, so a source that needs USB 2.0 can use it alongside its HDMI video. USB 2.0 travels over the DM Essentials link at up to 300 Mbps.
What resolutions does the HD-TXU-4KZ-211-CHGR support?
Up to 4096x2160 and 3840x2160 at 60 Hz, at 4:4:4 8 bit or 4:2:2 12 bit, with HDR10, HDR10+ and Dolby Vision. It also handles 5120x2160 at 30 Hz 4:4:4 or 60 Hz 4:2:0, 5120x1440 at 60 Hz 4:4:4 and 1080p60 at 4:4:4 12 bit. 1080i is supported on the HDMI input only.
How is it powered and mounted?
The PW-2475DU power pack is included and connects to a 24 VDC 2.1 x 5.5 mm input. The black metal chassis comes with two mounting brackets and can be freestanding, surface mounted or attached to a single rack rail. It measures 30 mm high, 216 mm wide and 165 mm deep.
How much is the Crestron HD-TXU-4KZ-211-CHGR?
Crestron asks its dealers to give the price of the HD-TXU-4KZ-211-CHGR directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the HD-TXU-4KZ-211-CHGR?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-TXU-4KZ-211-CHGR on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the HD-TXU-4KZ-211-CHGR come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-TXU-4KZ-211-CHGR develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the HD-TXU-4KZ-211-CHGR in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the HD-TXU-4KZ-211-CHGR without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
