Crestron part number DM-EXT-1021 KIT
The Crestron DM-EXT-1021 KIT is a DM Essentials transmitter and receiver pair that switches, scales and extends HDMI over a single CATx cable. With one HDMI input at each end and a 4K scaling HDMI output, it gives classrooms and meeting spaces a straightforward way to present from two sources.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron DM-EXT-1021

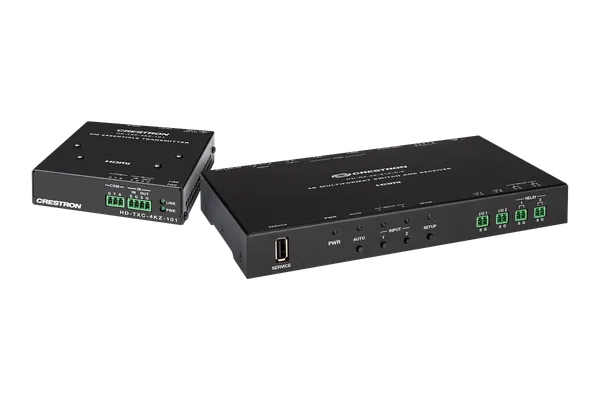

The kit contains the HD-TXC-4KZ-101 transmitter and the HD-RX-4K-210-C-E receiver. One HDMI source connects to the transmitter and a second to the HDMI input on the receiver, which switches between them automatically or manually, with audio following video. The receiver's 4K scaler then feeds the display through its HDMI output. Video, audio and power all travel over one CAT5e or higher twisted pair cable.
Cable runs can reach 70 m (230 ft) for resolutions up to 2K, or 40 m (130 ft) for higher resolutions up to 4K. Video is supported up to 4K60 with 4:2:0 colour sampling, and 1080p60 at 4:4:4. EDID and HDCP 2.2 are managed and CEC is supported. Stereo audio can be de-embedded to an analogue line-level output, with independent mute for the HDMI and analogue outputs.
For control there are IR, RS-232, relay and I/O ports, and 100/1000 Ethernet with web browser setup. Two power packs are included, the PW-2420RU and PW-2412WU, and either one will power both the transmitter and the receiver. Typical consumption is 14.8 W. The metal chassis has a black finish and two mounting flanges for surface or rack rail mounting.
Key features
- Transmitter and receiver pair: HD-TXC-4KZ-101 and HD-RX-4K-210-C-E
- 2x1 switching with automatic or manual input selection
- 4K scaling HDMI output
- Video, audio and power over one CATx cable
- Up to 70 m at up to 2K, or 40 m at up to 4K
- EDID and HDCP 2.2 management, plus CEC
- Analogue stereo audio de-embedding
- IR, RS-232, relay and I/O control ports
DM-EXT-1021 specifications
| Kit contents | HD-TXC-4KZ-101 transmitter, HD-RX-4K-210-C-E receiver, PW-2420RU and PW-2412WU power packs |
|---|---|
| Switching | 2x1 (1 input at transmitter, 1 at receiver, 1 output at receiver); auto or manual; audio follows video |
| Video | HDMI with Deep Color and 4K; up to 4096x2160 or 3840x2160 at 60 Hz 4:2:0, or 1920x1080 at 60 Hz 4:4:4 |
| Scaler | 4K video scaler with intelligent frame rate conversion, Deep Color support and content adaptive noise reduction |
| Extension distance | CAT5e or higher: up to 70 m (230 ft) up to 2K; up to 40 m (130 ft) up to 4K |
| Copy protection | HDCP 2.2; EDID management; CEC |
| Audio | HDMI and analogue stereo line-level output; 2-channel LPCM; 24-bit, 48 kHz DAC |
| Control | RS-232 2-way up to 115.2k baud; IR 1-way up to 60 kHz; relay and I/O ports; 100/1000 Ethernet |
| Power | 100-240 VAC power packs with 24 VDC output (either powers both units); 14.8 W typical |
| Mounting | Surface or rack rail mount; metal chassis, black finish, 2 mounting flanges |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| DM-EXT-1021 KIT | Transmitter and receiver kit | On request |
Where the DM-EXT-1021 is used
Works with the DM-EXT-1021
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron DM-EXT-1021
What is in the Crestron DM-EXT-1021 KIT?
The kit pairs an HD-TXC-4KZ-101 transmitter with an HD-RX-4K-210-C-E receiver, plus the PW-2420RU and PW-2412WU power packs. Together they switch between two HDMI sources, scale the picture for the display and extend video, audio and power over one CATx cable.
How far can the DM-EXT-1021 extend HDMI?
Over CAT5e or higher twisted pair cable, it reaches up to 70 m (230 ft) for resolutions up to 2K, and up to 40 m (130 ft) for higher resolutions up to 4K. Video, audio and power all travel over the same cable between the transmitter and receiver.
How does input switching work?
The system is a 2x1 switcher: one HDMI input on the transmitter and one on the receiver feed a single HDMI output at the receiver. It can switch automatically or manually, and audio follows the selected video source. The 4K scaler then matches the output to the display.
What resolutions does the DM-EXT-1021 support?
It handles 4K60 video with 4:2:0 colour sampling, 4K at 30 Hz with 4:4:4, and 1080p60 at 4:4:4 with 36 bit colour. Inputs accept HDMI with Deep Color and 4K, and are compatible with DVI and Dual-Mode DisplayPort sources. HDCP 2.2 and EDID are managed.
How is the kit powered?
Two power packs are included, the PW-2420RU and PW-2412WU, each taking 100 to 240 VAC and giving 24 VDC. Either one will power both the transmitter and receiver, because power is carried over the CATx cable along with video and audio. Typical consumption is 14.8 W.
How much is the Crestron DM-EXT-1021?
Crestron asks its dealers to give the price of the DM-EXT-1021 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the DM-EXT-1021?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-EXT-1021 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the DM-EXT-1021 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-EXT-1021 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the DM-EXT-1021 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the DM-EXT-1021 without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
