Crestron part number DM-DGE-200-C

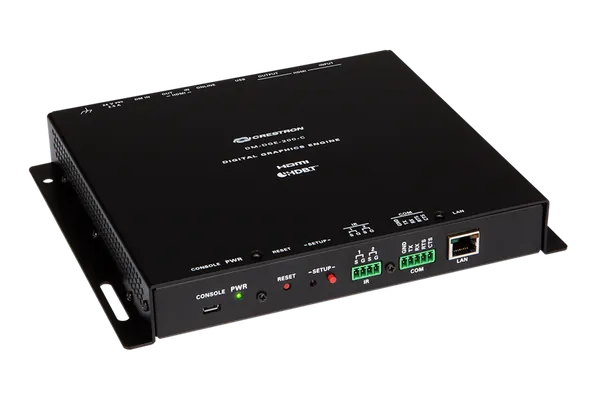

The Crestron DM-DGE-200-C is the Digital Graphics Engine 200, which turns an HD or Ultra HD touch screen display into a Crestron controller running a custom Smart Graphics project. It pairs with the Crestron TSD-2220 or a third-party USB HID touch screen, or can show an on-screen menu on a television or video display.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron DM-DGE-200-C
With Smart Graphics, a custom control environment can be built for audio, video, lighting, shades, HVAC, security and other systems. The DM-DGE-200-C can show dual-window or full screen video from HDMI, DM 8G+ and H.264 streaming sources, and has built-in annotation and web browsing. Its HDMI output supports displays at up to 1080p60 or 4K Ultra HD at 3840x2160 and 30 Hz, and it is HDCP 2.2 and 1.4 compliant.
Paired with the TSD-2220, it forms a 21.5 inch HD touch screen control panel. It also works with third-party USB HID compliant touch screens, or with no touch screen at all as an on-screen menu (OSM) navigated with a Crestron handheld remote or a USB mouse. An Ethernet connection is required for touch screen and OSM control. RS-232 and IR/serial ports allow control of the display and other equipment.
The DM 8G+ input accepts up to 4K UHD and DCI 4K and provides PoDM (Power over DM) sourcing, while the HDMI input takes up to 1080p60, for example from an AirMedia wireless presentation gateway. The included PW-2420RU power pack supplies 24 VDC, with typical consumption of 24 W without a PoDM device connected. The black metal chassis can be freestanding, surface mounted or attached to a single rack rail.
Key features
- Turns an HD or Ultra HD touch screen display into a Crestron controller
- Works with the TSD-2220 or third-party USB HID touch screens
- On-screen menu (OSM) control without a touch screen
- Dual-window or full screen video from HDMI, DM 8G+ and H.264 streams
- DM 8G+ input up to 4K UHD and DCI 4K, with PoDM sourcing
- HDMI output up to 1080p60 or 3840x2160 at 30 Hz
- Built-in annotation and web browsing
- RS-232 and IR/serial ports for display and device control
DM-DGE-200-C specifications
| DM input | DM 8G+ with HDCP 2.2, EDID, Ethernet and PoDM sourcing; up to 4096x2160 or 3840x2160 at 30 Hz |
|---|---|
| HDMI input | HDCP 1.4, EDID, CEC; up to 1080p60; DVI and Dual-Mode DisplayPort compatible |
| HDMI output | HDCP 2.2, EDID, CEC; up to 1080p60 or 3840x2160 at 30 Hz; DVI compatible |
| Streaming decoder | H.264 and MJPEG video, AAC stereo audio; up to 1080p60 at 25 Mbps |
| Memory | 2 GB DDR3 SDRAM, 4 GB flash; projects up to 1 GB |
| Control ports | RS-232 2-way up to 115.2k baud; IR up to 1.1 MHz or 1-way serial TTL/RS-232 up to 19200 baud |
| USB | Host port for the TSD-2220 and most USB HID peripherals; device port for computer console |
| Network | 100 Mbps Ethernet; required for touch screen and OSM control |
| Power | PW-2420RU power pack included (100-240 VAC in, 24 VDC 2 A out); 24 W typical without a PoDM PD connected |
| Mounting and size | Freestanding, surface mount or single rack rail; height 203 mm (7.93 in), width 236 mm (9.29 in), depth 35 mm (1.36 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| DM-DGE-200-C | Standard | On request |
Where the DM-DGE-200-C is used
Works with the DM-DGE-200-C
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron DM-DGE-200-C
What is the Crestron DM-DGE-200-C?
It is the Digital Graphics Engine 200. It runs a custom Smart Graphics control project and outputs it over HDMI, turning an HD or Ultra HD touch screen display into a Crestron controller for audio, video, lighting, shades, HVAC and security. It can also show live video from HDMI, DM 8G+ and H.264 streaming sources in a window or full screen.
Which touch screens work with the DM-DGE-200-C?
It is designed to pair with the Crestron TSD-2220, which together form a 21.5 inch HD touch screen control panel. It is also compatible with third-party touch screen displays that are USB HID compliant, connected to its USB host port. An Ethernet connection is required for touch screen control applications.
Can the DM-DGE-200-C be used without a touch screen?
Yes. It supports on-screen menu (OSM) applications, which put a customisable control menu on a television or video display. The menu is navigated with a Crestron handheld remote or a USB mouse, and the menu graphics are high resolution. An Ethernet connection is required for OSM control.
What video inputs does it have?
It has a DM 8G+ input that accepts up to 4K UHD and DCI 4K with HDCP 2.2, and an HDMI input that accepts up to 1080p60 with HDCP 1.4. The HDMI input can take an AirMedia wireless presentation gateway or another high definition source, and the unit also decodes H.264 streams up to 1080p60 at 25 Mbps.
How is the DM-DGE-200-C powered and mounted?
A PW-2420RU power pack is included, supplying 24 VDC, and typical consumption is 24 W without a PoDM powered device connected. The black metal chassis has two integral mounting flanges and vented sides, and can be freestanding, surface mounted or attached to a single rack rail. It measures 203 mm high, 236 mm wide and 35 mm deep.
How much is the Crestron DM-DGE-200-C?
Crestron asks its dealers to give the price of the DM-DGE-200-C directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the DM-DGE-200-C?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-DGE-200-C on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the DM-DGE-200-C come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-DGE-200-C develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the DM-DGE-200-C in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the DM-DGE-200-C without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
