Crestron TSD-2220 21.5 in. HD Touch Screen Display

Crestron part number TSD-2220-B

The Crestron TSD-2220 is a 21.5 in. (546 mm) Full HD touch screen display with 10-point capacitive touch. It is used with a Crestron DGE-1000 or DM-DGE-200-C digital graphic engine, both sold separately, and accepts up to 4K60 through a single HDMI input.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

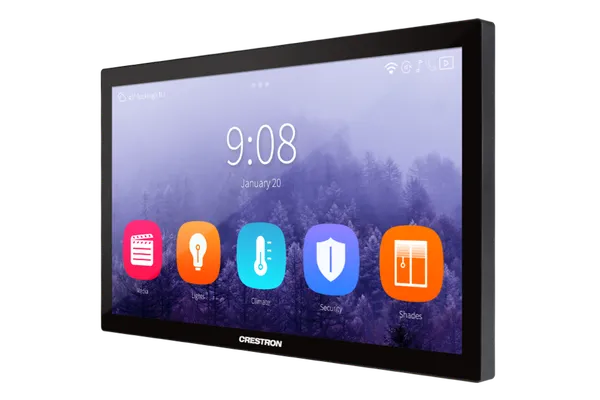

Crestron TSD-2220 21.5 in. HD Touch Screen Display, Black

About the Crestron TSD-2220

The panel runs at 1920 x 1080 and downscales 4K UHD input (3840 x 2160 at 60 Hz) internally. It is HDCP 2.2 compliant and offers 178 degree viewing angles, 225 nits brightness, 1000:1 contrast and a 14 ms response time. Touch is reported over a USB HID (Human Interface Device) connection, and built-in rear-facing stereo speakers play the audio carried on the HDMI input.

Its slim, rugged design is rated IP65 dust proof and water resistant, and a rear cover conceals the connectors. It fits a VESA 100 x 100 or 200 x 100 mount. Five push buttons on the back handle power and setup, and an LED behind the cover shows when operating power is being supplied by the power pack.

Power comes from the included 12 VDC power pack (4.16 A output, 100 to 240 VAC input). Typical consumption is 27 W, falling to 2 W in standby with the backlight off. The display measures 313 mm high, 517 mm wide and 46 mm deep, is supplied in black as the TSD-2220-B and comes with a 6 ft (1.83 m) USB cable.

Key features

21.5 in. Full HD 1920 x 1080 display
10-point projected capacitive multitouch
Single HDMI input up to 3840 x 2160 at 60 Hz, with built-in 4K downscaling
HDCP 2.2 compliant
For use with DGE-1000 and DM-DGE-200-C digital graphic engines
IP65 dust proof and water resistant
Built-in stereo speakers
VESA 100 x 100 or 200 x 100 mountable

TSD-2220 specifications

Display	21.5 in. (546 mm) TFT active matrix colour LCD, 16:9, 1920 x 1080 pixels, WLED backlit
Picture	225 nits, 1000:1 contrast, 14 ms response, ±89° horizontal and vertical viewing angle
Touch	Projected capacitive, 10-point multitouch; USB HID
Video input	1 x HDMI Type A, DVI compatible; up to 3840 x 2160 at 60 Hz; HDCP 2.2
Audio	HDMI audio to built-in rear-facing stereo amplified speakers
USB	USB Type B device port; 6 ft (1.83 m) cable included
Power	12 VDC power pack included (4.16 A output, 100 to 240 VAC input); 27 W typical, 2 W standby
Mounting	VESA 100 x 100 or 200 x 100
Dimensions	Height 313 mm (12.34 in), width 517 mm (20.37 in), depth 46 mm (1.81 in)
Operating environment	0°C to 40°C (32°F to 104°F), 20% to 80% RH non-condensing

Part numbers on this page

Part number	Version	Price	Add
TSD-2220-B	Black	On request

Where the TSD-2220 is used

Large format touch control with a DGE-1000 or DM-DGE-200-C
Locations that need an IP65 rated touch display
Displays fixed on VESA 100 x 100 or 200 x 100 mounts
Replacing an existing TSD-2220-B

Works with the TSD-2220

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron TSD-2220

What is the Crestron TSD-2220?

The TSD-2220 is a 21.5 in. Full HD touch screen display with 10-point projected capacitive touch. Paired with a Crestron DGE-1000 or DM-DGE-200-C digital graphic engine, it forms a touch screen control solution. It has a single HDMI input, built-in stereo speakers and an IP65 dust proof, water resistant design.

What does the TSD-2220 need to work?

It is designed to be used with a Crestron DGE-1000 or DM-DGE-200-C digital graphic engine, and both are sold separately. The display takes video through its HDMI input and reports touch as a USB HID device, and a 6 ft (1.83 m) USB cable is included.

Can the TSD-2220 accept a 4K signal?

Yes. The HDMI input accepts resolutions up to 3840 x 2160 at 60 Hz and is HDCP 2.2 compliant. The panel itself is 1920 x 1080, and built-in 4K UHD downscaling converts the incoming signal to that native Full HD resolution.

How is the display powered?

It runs from the included 12 VDC power pack, which accepts 100 to 240 VAC at 50/60 Hz and delivers 4.16 A. Typical power consumption is 27 W, and it drops to 2 W in standby with the display backlight off.

How is the TSD-2220 mounted?

It is VESA 100 x 100 or 200 x 100 mountable. The slim, rugged design is IP65 dust proof and water resistant, and a rear cover conceals the connectors. The display measures 313 mm high, 517 mm wide and 46 mm deep.

How much is the Crestron TSD-2220?

Crestron asks its dealers to give the price of the TSD-2220 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TSD-2220?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TSD-2220 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TSD-2220 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TSD-2220 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TSD-2220 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the TSD-2220 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
