Crestron CL-SPACEBUILDER-DIN SpaceBuilder DALI and DMX

Crestron part number CL-SPACEBUILDER-DIN

The Crestron CL-SPACEBUILDER-DIN is a SpaceBuilder system of DIN rail modules in a DIN-EN series or GLEX-FT-84-HC enclosure, suited to digital lighting projects that use DALI or DMX. It is also useful for Ethernet and Cresnet distribution, with an internal 4-Series processor for astronomical time-clock lighting control.

Discontinued by Crestron

Crestron no longer makes the CL-SPACEBUILDER-DIN. Tell us what you have and we'll recommend the current replacement.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

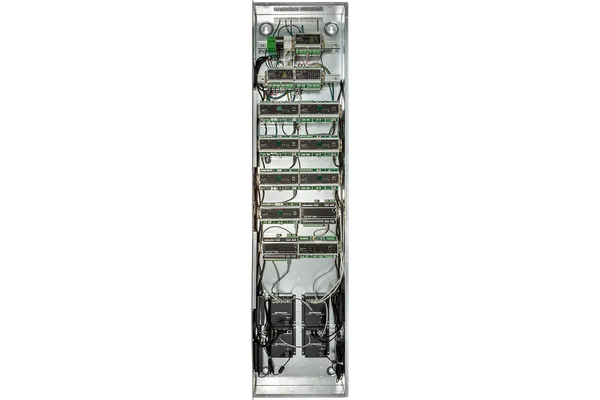

Crestron CL-SPACEBUILDER-DIN SpaceBuilder System, DIN

About the Crestron CL-SPACEBUILDER-DIN

Enclosure options are the DIN-EN series, with 2, 3 or 6 DIN rails (DIN-EN-2X18, DIN-EN-3X18 and DIN-EN-6X18), or the GLEX-FT-84-HC with 9 DIN rails. The system runs at 120 VAC and uses a DIN-AP4 processor with a DIN-PWS60 power supply. Each DIN-HUB supports up to 3 Cresnet subnets, and a DIN-CENCN-2-POE provides an Ethernet to Cresnet bridge.

For digital lighting, each DIN-DALI-2 module provides 2 loops of DALI lighting, and DIN-DMX-1UNIVERSE or DIN-DMX-2UNIVERSE modules add DMX with full show control and RDM support. A GLA-OPTO-4WAY gives an isolated optical splitter, and a CEN-SW-POE-5 adds a 5-port Ethernet switch with 802.3af PoE. The NEMA 1 metal enclosure is suitable for plenum air-handling spaces.

Crestron notes that this feed-through cabinet does not have over-current protection. The operating range is 0 to 40°C at 10% to 90% humidity, non-condensing. Listed enclosure heights run from 323 mm for the DIN-EN-2X18 to 989 mm for the DIN-EN-6X18 and 1,594 mm for the GLEX-FT-84-HC, so check the wall space before choosing an enclosure.

Key features

For DALI and DMX digital lighting projects
DIN-DALI-2 modules with 2 DALI loops each
DMX show control and RDM with DIN-DMX-1UNIVERSE or DIN-DMX-2UNIVERSE
Internal 4-Series processor with astronomical time clock
Up to 3 Cresnet subnets per DIN-HUB
Ethernet to Cresnet bridge with the DIN-CENCN-2-POE
DIN-EN enclosures with 2, 3 or 6 DIN rails, or GLEX-FT-84-HC with 9
5-port 802.3af PoE Ethernet switch using the CEN-SW-POE-5

CL-SPACEBUILDER-DIN specifications

Enclosures	DIN-EN-2X18, DIN-EN-3X18, DIN-EN-6X18 (2, 3 or 6 DIN rails); GLEX-FT-84-HC (9 DIN rails)
Processor and power	DIN-AP4 4-Series processor; DIN-PWS60 power supply
DALI	DIN-DALI-2, 2 DALI loops per module
DMX	DIN-DMX-1UNIVERSE or DIN-DMX-2UNIVERSE; full show control and RDM
Cresnet	DIN-HUB, up to 3 Cresnet subnets each; DIN-CENCN-2-POE Ethernet to Cresnet bridge
Other modules	GLA-OPTO-4WAY isolated optical splitter; CEN-SW-POE-5 5-port Ethernet switch with 802.3af PoE
Voltage	120 VAC
Construction	NEMA 1 metal enclosure suitable for plenum air-handling spaces; feed-through, no over-current protection
Operating environment	0 to 40°C, 10% to 90% RH non-condensing
Enclosure heights	DIN-EN-2X18 323 mm; DIN-EN-3X18 597 mm; DIN-EN-6X18 989 mm; GLEX-FT-84-HC 1,594 mm

Part numbers on this page

Part number	Version	Price	Add
CL-SPACEBUILDER-DIN	Standard Discontinued	No longer made

Where the CL-SPACEBUILDER-DIN is used

DALI lighting projects
DMX show control and RDM lighting
Ethernet and Cresnet distribution
Astronomical time-clock lighting control

Works with the CL-SPACEBUILDER-DIN

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron CL-SPACEBUILDER-DIN

What is the Crestron CL-SPACEBUILDER-DIN?

It is a SpaceBuilder system built from DIN rail modules in a DIN-EN series or GLEX-FT-84-HC enclosure. Crestron positions it for digital lighting projects using DALI or DMX, and it is also useful for Ethernet and Cresnet distribution, with an internal 4-Series processor for astronomical time-clock control.

How does the CL-SPACEBUILDER-DIN handle DALI and DMX?

Each DIN-DALI-2 module provides 2 loops of DALI lighting. DMX is handled by DIN-DMX-1UNIVERSE or DIN-DMX-2UNIVERSE modules, which give full show control and RDM support. A GLA-OPTO-4WAY can be added as an isolated optical splitter.

Which enclosures can be used?

The DIN-EN-2X18, DIN-EN-3X18 and DIN-EN-6X18 provide 2, 3 or 6 DIN rails, and the GLEX-FT-84-HC provides 9. Listed heights are 323 mm, 597 mm, 989 mm and 1,594 mm respectively. The system uses a NEMA 1 metal enclosure suitable for plenum air-handling spaces.

Does the CL-SPACEBUILDER-DIN support Cresnet?

Yes. Each DIN-HUB supports up to 3 Cresnet subnets, and the DIN-CENCN-2-POE acts as an Ethernet to Cresnet bridge. A CEN-SW-POE-5 can add a 5-port Ethernet switch with 802.3af PoE for network distribution within the system.

Does the cabinet include circuit protection?

No. Crestron notes that this feed-through cabinet does not have over-current protection. The system runs at 120 VAC and is rated for 0 to 40°C and 10% to 90% relative humidity, non-condensing.

How much is the Crestron CL-SPACEBUILDER-DIN?

Crestron asks its dealers to give the price of the CL-SPACEBUILDER-DIN directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the CL-SPACEBUILDER-DIN?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CL-SPACEBUILDER-DIN on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the CL-SPACEBUILDER-DIN come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CL-SPACEBUILDER-DIN develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the CL-SPACEBUILDER-DIN still available?

Crestron has discontinued the CL-SPACEBUILDER-DIN. Tell us about your system and what the unit does, and we will recommend the current Crestron replacement and any changes it needs before we quote.

Can I buy the CL-SPACEBUILDER-DIN without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
