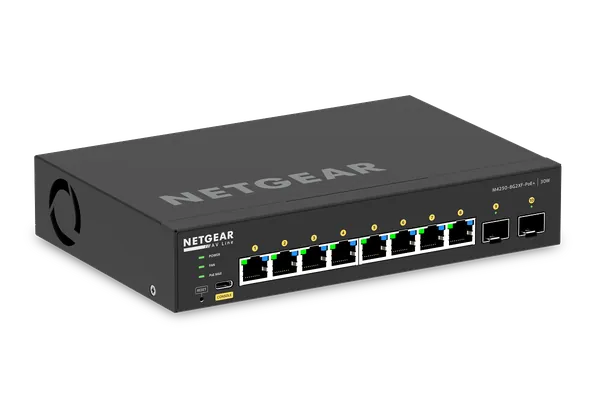

Crestron CEN-SWPOE-10 10 Port PoE+ Managed Switch

Crestron part number CEN-SWPOE-10

The Crestron CEN-SWPOE-10 is a compact NETGEAR AV network switch with eight Gigabit PoE+ ports and two 10 Gigabit SFP+ ports. It is a Layer 2 and Layer 3 managed switch with selectable DM NVX and DM NAX AV-over-IP profiles, designed to make integration with Crestron AV-over-IP products straightforward.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron CEN-SWPOE-10 10 Port PoE+ Managed Switch

About the Crestron CEN-SWPOE-10

Each of the eight 10/100/1000Base-T ports can deliver PoE+ (IEEE 802.3at Type 2) at up to 30 W, with 220 W available in total. The two 10 Gigabit Base-X SFP+ ports accept transceiver modules for connection to a fibre network. The switch fabric is 56 Gbps non-blocking, with up to 16K MAC addresses, and selectable DM NVX and DM NAX profiles simplify setup for Crestron AV-over-IP.

The Lite Layer 3 feature set includes IGMPv3 and MLDv2 snooping with an IGMP querier for multicast, IEEE 1588 PTPv2, VLANs, QoS and ACLs, static and dynamic routing (RIP, PIM-SM, PIM-DM), and security features such as DOT1X, MAB, DHCP snooping and dynamic ARP inspection. It is managed through a web GUI, CLI, SSH or SNMP, with an out-of-band service port and LLDP support.

The black metal chassis is fan cooled with vented sides and measures 40 mm high, 210 mm wide and 140 mm deep; it can stand freely or mount on a flat surface. Crestron lists main power as 4.7 A at 100 to 240 VAC, 50/60 Hz, with consumption of 257.7 W at maximum PoE, 18.14 W without PoE and 9.51 W in standby. Operating temperature is 0 to 50 °C.

Key features

NETGEAR AV managed switch for Crestron AV-over-IP
Eight Gigabit ports with PoE+ (802.3at Type 2), up to 30 W each
220 W total PoE budget
Two 10 Gigabit SFP+ ports for fibre connections
Selectable DM NVX and DM NAX AV-over-IP profiles
Layer 2 and Layer 3 managed switching with LLDP
56 Gbps non-blocking switch fabric
Small form factor, freestanding or surface mounted

CEN-SWPOE-10 specifications

Ports	8 x 10/100/1000Base-T with PoE+; 2 x 10 Gigabit Base-X SFP+
PoE	IEEE 802.3af/802.3at (Type 2); up to 30 W per port, 220 W total
Switch fabric	56 Gbps non-blocking; up to 16K MAC addresses
Management	Layer 2 and Lite Layer 3; web GUI, HTTPS, CLI, Telnet, SSH, SNMP; out-of-band port
AV features	DM NVX and DM NAX profiles; IGMPv3/MLDv2 snooping and querier; IEEE 1588 PTPv2; LLDP
Other ports	Out-of-band RJ-45; USB-C console; USB Type A storage
Power	Main power 4.7 A at 100 to 240 VAC, 50/60 Hz; 54 V, 4.7 A power connector
Consumption	257.7 W max PoE; 18.14 W no PoE; 9.51 W standby
Chassis and mounting	Black metal, fan cooled, vented sides; freestanding or flat surface mount; 0 to 50 °C
Dimensions	40 x 210 x 140 mm (H x W x D)

Part numbers on this page

Part number	Version	Price	Add
CEN-SWPOE-10	Standard	On request

Where the CEN-SWPOE-10 is used

Small DM NVX or DM NAX AV-over-IP systems
Meeting rooms and AV racks needing PoE+ for endpoints
Linking an AV network to a fibre backbone over SFP+
Locations that need a compact, surface-mounted switch

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron CEN-SWPOE-10

What is the Crestron CEN-SWPOE-10?

It is a 10 port NETGEAR AV managed switch sold by Crestron, with eight Gigabit PoE+ ports and two 10 Gigabit SFP+ ports. It offers Layer 2 and Layer 3 managed switching and selectable DM NVX and DM NAX profiles for Crestron AV-over-IP systems.

How much PoE can the CEN-SWPOE-10 supply?

All eight Ethernet ports support PoE+ (IEEE 802.3at Type 2) at up to 30 W per port, with a total budget of 220 W. A PoE MAX LED lights when the switch is supplying the maximum amount of PoE.

Can the CEN-SWPOE-10 connect to a fibre network?

Yes. Its two 10 Gigabit Base-X SFP+ ports accept transceiver modules for connection to a fibre network. The switch fabric is 56 Gbps non-blocking, and the eight copper ports are 10/100/1000Base-T auto-sensing Gigabit Ethernet.

Which multicast and AV features does the CEN-SWPOE-10 support?

It supports IGMPv3 and MLDv2 snooping, IGMP querier, automated IGMP between switches and control packet flooding, along with IEEE 1588 PTPv2 and LLDP. Selectable DM NVX and DM NAX AV-over-IP profiles are built in for Crestron systems.

How big is the switch and how is it mounted?

The CEN-SWPOE-10 is a small form factor switch measuring 40 mm high, 210 mm wide and 140 mm deep. Its black metal chassis is fan cooled with vented sides and can stand freely or be mounted on a flat surface. It operates from 0 to 50 °C.

How much is the Crestron CEN-SWPOE-10?

Crestron asks its dealers to give the price of the CEN-SWPOE-10 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the CEN-SWPOE-10?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CEN-SWPOE-10 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the CEN-SWPOE-10 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CEN-SWPOE-10 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the CEN-SWPOE-10 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the CEN-SWPOE-10 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
