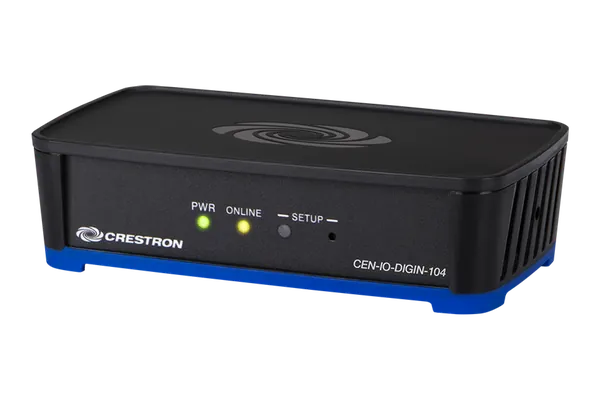

Crestron CEN-IO-DIGIN-104 Wired Ethernet Module with 4 Digital Inputs

It adds four digital inputs to a Crestron control system over wired Ethernet. The inputs accept 0 to 24 VDC referenced to ground, and the module reports over the local network so connected equipment can be monitored remotely from a computer or tablet. It is powered by PoE.

It takes its power from the LAN cable as an IEEE 802.3at Type 1 (802.3af compatible) Class 0 PoE powered device and uses 1.8 W. A PWE-4803RU PoE injector or a Crestron PoE switch such as the CEN-SW-POE-5 can supply it, so no local power supply is needed.

Both add four digital inputs in the same IFE micro enclosure. The CEN-IO-DIGIN-104 connects by wired Ethernet and is powered by PoE, while the CEN-IO-DIGIN-204 connects over Wi-Fi to a wireless access point and runs from an included 5 VDC power pack.

The four digital inputs are referenced to ground and have an input voltage range of 0 to 24 VDC. They connect through a single 5-pin 3.5 mm detachable terminal block, and their status is passed to the control system over the network.

The IFE micro enclosure can stand freely, stack with other CEN-IO and IFE compliant devices, or attach to a flat surface or 35 mm DIN rail with the included bracket, taking 8 DIN module spaces (144 mm). It measures 34 x 128 x 73 mm and weighs 180 g.

Crestron asks its dealers to give the price of the CEN-IO-DIGIN-104 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CEN-IO-DIGIN-104 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CEN-IO-DIGIN-104 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
