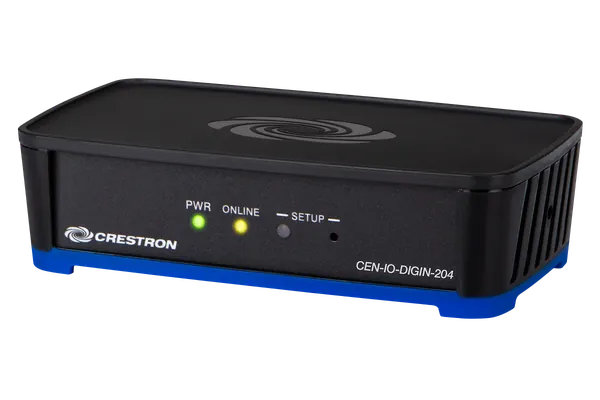

Crestron CEN-IO-DIGIN-204 Wi-Fi I/O Extender with 4 Digital Inputs

It is a compact Wi-Fi network I/O extender that gives a Crestron control system four extra digital inputs. The inputs accept 0 to 24 VDC referenced to ground, the extender communicates over 802.11a/b/g/n Wi-Fi, and it is powered by an included 5 VDC power pack.

It needs an 802.11a/b/g/n wireless access point and an Ethernet-enabled Crestron control system. It works on 2.4 or 5 GHz, can memorise up to five access points, and has a range of up to 50 feet (15 m), depending on the conditions on site.

It is powered by the included PW-0510WUL power pack, which accepts 100 to 240 VAC at 50/60 Hz and supplies 5 VDC at 1.2 A through a 2-pin terminal block. Typical consumption is 0.7 W. If PoE power over a network cable is preferred, the wired CEN-IO-DIGIN-104 is the alternative.

The Wi-Fi radio supports 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES, with a static IP address or DHCP. The extender also supports the TLS 1.2 and local authentication security protocols.

It uses the IFE micro enclosure, 34 mm high, 128 mm wide and 73 mm deep, which can stand freely, be stacked, or mount on a flat surface or 35 mm DIN rail using the included bracket, taking 8 DIN module spaces (144 mm). Rack and pole mount options are available.

Crestron asks its dealers to give the price of the CEN-IO-DIGIN-204 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CEN-IO-DIGIN-204 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CEN-IO-DIGIN-204 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
