Crestron USB-SW-400 4-Input USB 3.2 Data Matrix Switcher

Crestron part number USB-SW-400

The Crestron USB-SW-400 is a 4-input USB 3.2 data matrix switcher that lets four USB-C hosts share a set of USB devices at up to 10 Gbps. Switching can be automatic or priority based, from the front panel or web interface, or by mouse movement and keyboard shortcut.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

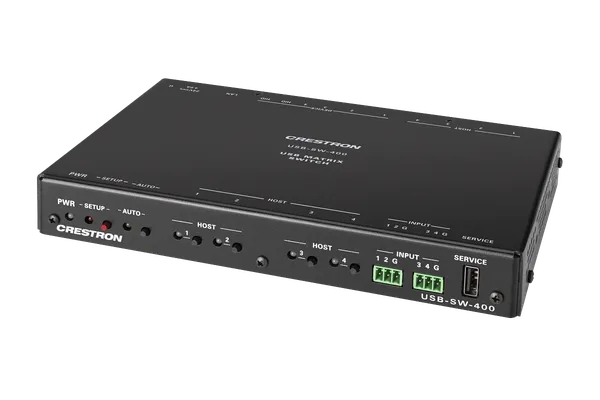

Crestron USB-SW-400 4-input USB 3.2 Data Matrix Switcher

About the Crestron USB-SW-400

There are four USB-C host ports and six device ports: two USB-C and two USB-A ports for USB 3.2 Gen 2 data at up to 10 Gbps, plus two dedicated USB-A HID ports for a keyboard and mouse at USB 2.0 speeds. The HID ports are routed together, support hotkey and mouse cursor switching, and use keep alive emulation.

The USB-C device connectors provide up to 15 W of power over USB and the USB-A device connectors up to 4.5 W, with up to 2.5 W on the HID ports. Crestron notes that the unit uses two tiers of USB. Two 3-pin I/O inputs and a Gigabit Ethernet port sit alongside the USB connections, and the front panel has a routing button for each host.

It integrates with the REST API, SIMPL and SIMPL#Pro, uses enterprise-grade security encryption and supports XiO Cloud for remote provisioning and management. Power comes from a 24 VDC, 4 A power pack, with consumption of 47 W. The black metal chassis can stand freely or be surface mounted and measures 28 mm high, 212 mm wide and 128 mm deep.

Key features

Full matrix USB 3.2 data switcher with four USB-C host ports
Six device ports: two USB-C, two USB-A and two HID
USB 3.2 Gen 2 data at up to 10 Gbps
Automatic and priority USB routing
Mouse-based and keyboard shortcut host switching
Front panel buttons or web interface
REST API, SIMPL and SIMPL#Pro integration
XiO Cloud remote provisioning and management

USB-SW-400 specifications

Host ports	4 x USB-C, USB 3.2 Gen 2
Device ports	2 x USB-C USB 3.2 Gen 2 (up to 15 W); 2 x USB-A USB 3.2 (up to 4.5 W)
HID ports	2 x USB-A 2.0 for keyboard and mouse, up to 2.5 W, keep alive emulation
Data rate	USB 3.2 Gen 2 up to 10 Gbps; HID ports USB 2.0 up to 480 Mbps
Switching	Automatic, priority, front panel, web interface, mouse-based and keyboard shortcut
Network and control	1 x RJ45 100/1000 Ethernet; 2 x 3-pin I/O inputs; REST API, SIMPL, SIMPL#Pro
Power	24 VDC, 4 A power pack; 47 W consumption
Operating environment	0° to 40°C (32° to 104°F); 10% to 95% RH, non-condensing
Construction and mounting	Metal, black finish; freestanding or surface mount
Dimensions and weight	28 mm H x 212 mm W x 128 mm D; 0.63 kg (1.4 lb)

Part numbers on this page

Part number	Version	Price	Add
USB-SW-400	Standard	On request

Where the USB-SW-400 is used

Meeting rooms where up to four hosts share the same USB devices
Workstations with several computers and one keyboard and mouse
Rooms managed centrally through XiO Cloud
Crestron systems programmed in SIMPL or SIMPL#Pro

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron USB-SW-400

What is the Crestron USB-SW-400?

It is a 4-input USB 3.2 data matrix switcher. Four USB-C hosts can share six device ports, including dedicated keyboard and mouse ports, with USB 3.2 Gen 2 data at up to 10 Gbps. Crestron describes it as a plug-and-play solution for connecting and sharing USB devices.

How does the USB-SW-400 switch between hosts?

It supports automatic and priority USB routing, manual routing with the four front panel host buttons, and control from a web interface. Users can also switch hosts with the mouse or with a keyboard shortcut, and a control system can drive it through the REST API, SIMPL or SIMPL#Pro.

What are the HID ports for?

The two dedicated USB-A HID ports are for a keyboard and mouse. They run at USB 2.0 speeds, are routed together, enable hotkey and mouse cursor switching, and use keep alive emulation. The HID ports provide up to 2.5 W of power over USB.

How is the USB-SW-400 powered?

It runs from a 24 VDC, 4 A power pack connected to its DC power input, and power consumption is 47 W. The USB-C device connectors can supply up to 15 W of power over USB and the USB-A device connectors up to 4.5 W.

What is the difference between the USB-SW-400 and USB-SW-200?

Both are USB 3.2 data matrix switchers with the same six device ports, chassis size and switching options. The USB-SW-400 has four USB-C host ports and two 3-pin I/O inputs, while the USB-SW-200 has two host ports and one I/O input. Consumption is 47 W and 46 W respectively.

How much is the Crestron USB-SW-400?

Crestron asks its dealers to give the price of the USB-SW-400 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the USB-SW-400?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the USB-SW-400 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the USB-SW-400 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the USB-SW-400 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the USB-SW-400 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the USB-SW-400 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
