Crestron USB-EXT-3 USB 3.2 Extender Kit over CAT6a/7

Crestron part number USB-EXT-3 KIT

The Crestron USB-EXT-3 KIT is a USB 3.2 extender with a Local and a Remote unit, carrying USB signals up to 100 m (330 ft) over CAT6a or CAT7 cable. It suits meeting rooms where USB cameras and UC soundbars sit beyond the 1.8 m reach of a USB 3.2 cable.

Limited supply at Crestron

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

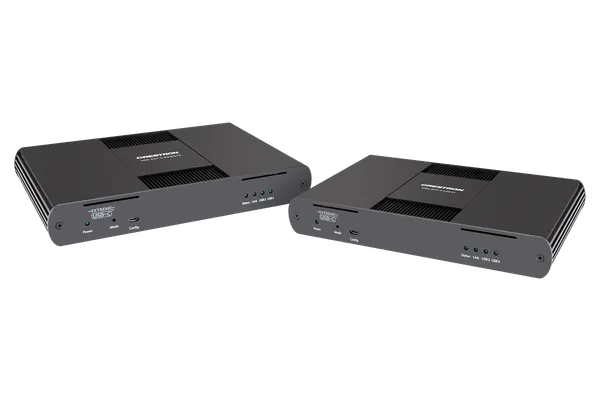

Crestron USB-EXT-3 USB 3.2 Extender over CAT 6a/7 Cable, Local and Remote

About the Crestron USB-EXT-3

The USB-EXT-3-LOCAL connects to the host, such as a computer, media server or game console, through a USB Type-B port. The USB-EXT-3-REMOTE has four USB Type-A ports for devices such as USB cameras, video capture devices, flash drives and keyboards at one location. USB 3.2 Gen 1 runs at up to 5 Gbps, with USB 2.0 and 1.1 supported at the same time.

All USB transfer types are supported: control, interrupt, isochronous (ISO) and bulk, and ISO support is enhanced for cameras and video capture devices. The kit is plug-and-play with no additional drivers on Windows, macOS, Linux and Chrome OS. Each unit also has a Gigabit Ethernet pass-through port for connecting a network or a network-enabled device.

Each unit has its own power pack, included: the Local uses 24 W and the Remote 41 W, of which 24 W is allocated to the four USB devices. The black anodised aluminium units can stand freely or be surface mounted with the included mounting kit, and each measures 34 mm high, 233 mm wide and 144 mm deep. Operating temperature is 0° to 50°C.

Key features

Includes the USB-EXT-3-LOCAL and USB-EXT-3-REMOTE
USB 3.2 Gen 1 at up to 5 Gbps, up to 100 m (330 ft) over CAT6a/7
USB 3.2, 2.0 and 1.1 signals at the same time
Enhanced isochronous support for USB cameras and capture devices
Four USB Type-A device ports at the Remote
Gigabit Ethernet pass-through port on each unit
No additional drivers for Windows, macOS, Linux or Chrome OS
Power packs and mounting kit included

USB-EXT-3 specifications

Contents	USB-EXT-3-LOCAL and USB-EXT-3-REMOTE extenders
Link	Proprietary point-to-point link, RJ45; up to 100 m (330 ft) over CAT6a/7
USB speeds	USB 3.2 Gen 1 up to 5 Gbps; USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps
Host connection (Local)	1 x USB Type-B, female, USB 3.2 Gen 1
Device connections (Remote)	4 x USB Type-A, female, USB 3.2 Gen 1
Ethernet	1 x RJ45 per unit, 100BASE-TX/1000BASE-T LAN pass-through
Power	Power packs included, 100 to 240 VAC in; Local 1 A at 24 VDC, 24 W; Remote 2.71 A at 24 VDC, 41 W (24 W for USB devices)
Operating environment	0° to 50°C (32° to 122°F); 20% to 80% RH, non-condensing
Construction and mounting	Black anodised aluminium; freestanding or surface mount, mounting kit included
Dimensions (each unit)	34 mm H x 233 mm W x 144 mm D (1.34 x 9.15 x 5.68 in)

Part numbers on this page

Part number	Version	Price	Add
USB-EXT-3 KIT	Local and remote kit Limited supply	On request

Where the USB-EXT-3 is used

Conference rooms with USB cameras and UC soundbars
Meeting spaces where the PC is far from the table
Video capture devices that rely on isochronous transfer
Locations that need Ethernet pass-through at each end

Works with the USB-EXT-3

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron USB-EXT-3

What is in the USB-EXT-3 KIT?

The kit pairs the USB-EXT-3-LOCAL, which connects to the USB host, with the USB-EXT-3-REMOTE, which connects up to four USB devices at one location. Together they extend USB 3.2, 2.0 and 1.1 signals up to 100 m (330 ft) over CAT6a or CAT7 cable.

Why use the USB-EXT-3 instead of a long USB cable?

Crestron notes that a standard USB 3.2 cable is limited to 1.8 m (6 ft), which is too short for most integrated conference room systems. The USB-EXT-3 KIT carries USB 3.2 Gen 1 at up to 5 Gbps over one CAT6a or CAT7 cable, up to 100 m (330 ft).

Does it work with USB cameras?

Yes. It supports all USB transfer types, including isochronous (ISO) transport, and Crestron lists enhanced support for USB cameras and video capture devices using ISO. The Remote unit's four USB Type-A ports are intended for devices such as cameras, capture devices, flash drives and keyboards.

How is the USB-EXT-3 KIT powered?

Each unit has its own included power pack with a 100 to 240 VAC input. The Local pack delivers 1 A at 24 VDC and the unit uses 24 W. The Remote pack delivers 2.71 A at 24 VDC and the unit uses 41 W, with 24 W allocated to the four USB devices.

Which operating systems does it support?

It is plug-and-play without additional drivers on Windows, macOS, Linux and Chrome OS. The Local and Remote connect over a proprietary point-to-point link on CAT6a or CAT7 cable, and each unit adds a Gigabit Ethernet pass-through port for a network or network-enabled device.

How much is the Crestron USB-EXT-3?

Crestron asks its dealers to give the price of the USB-EXT-3 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the USB-EXT-3?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the USB-EXT-3 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the USB-EXT-3 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the USB-EXT-3 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the USB-EXT-3 in stock?

Crestron lists the USB-EXT-3 as limited supply, so availability can change quickly. We check stock with Crestron before we quote and put the expected delivery date on your quote. If you need several, ask early.

Can I buy the USB-EXT-3 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
